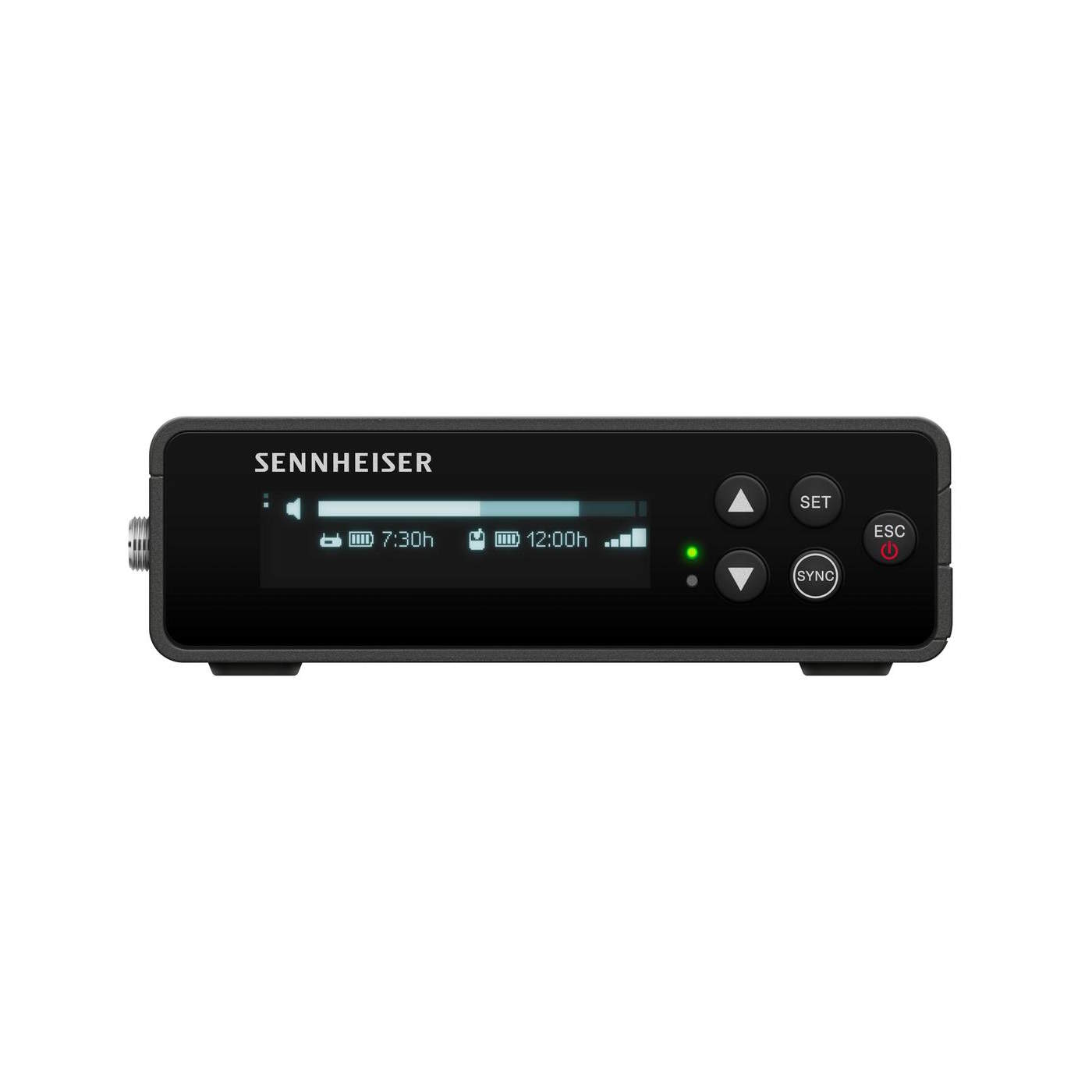

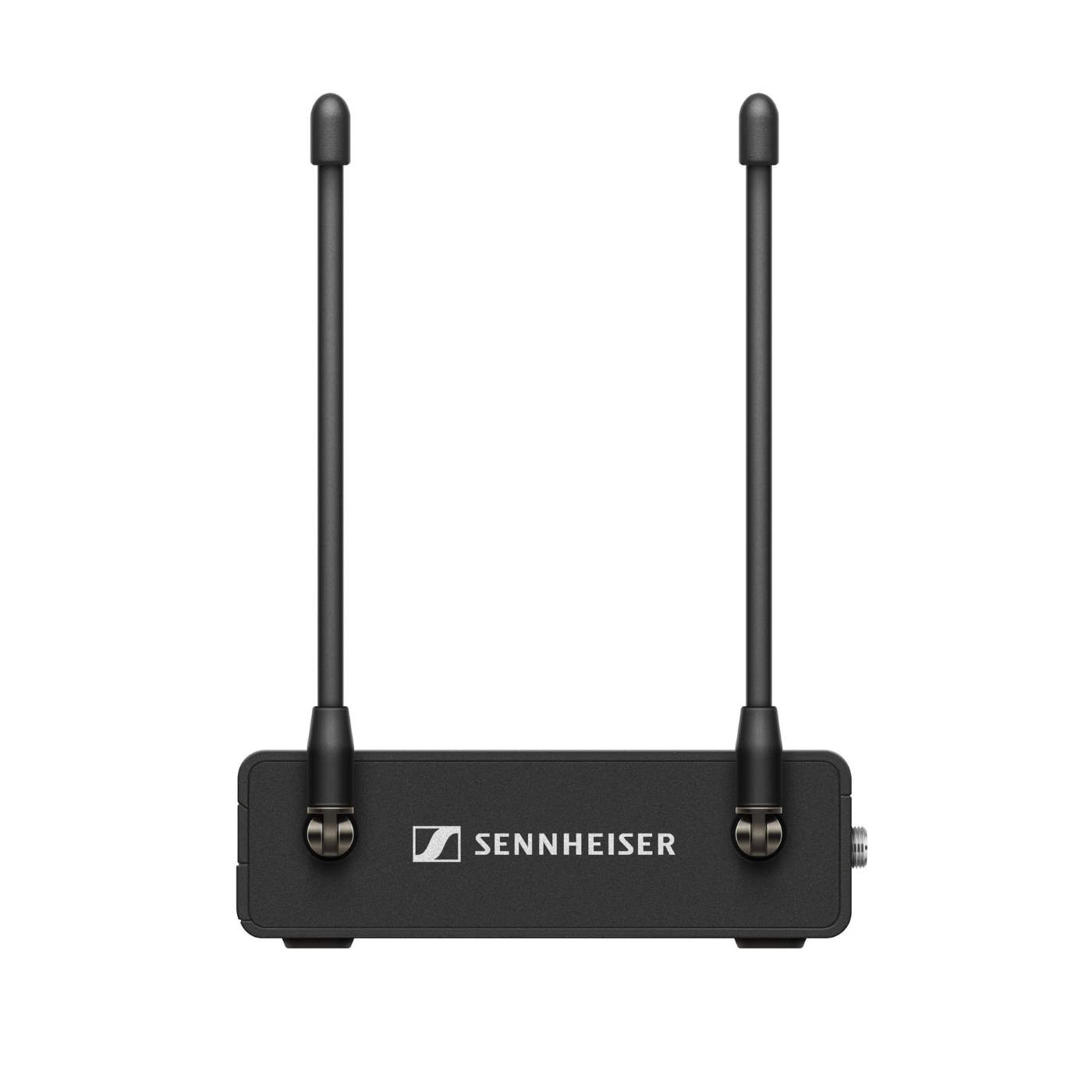

Sennheiser EW-DP EK Portable digital UHF receiver for use with EW-D SK bodypack, EW-D SKM-S handheld, or EW-DP SKP plug-on transmitters. Can also be used with EW-DX transmitters.
EW-DP is designed to provide flawless digital audio for video production. The EW-DP EK receiver comes with a camera mounting kit, plus minijack and XLR output cables. A rechargeable BA70 battery is included to reduce the need for disposable batteries and to give extended run-time of upto 12 hours.
• Fully digital UHF wireless microphone system for video applications
• Integrated Bluetooth for synchronization and control
• Smart Notifications for troubleshooting and system guidance
• Intelligent battery management provides operating time (hours:minutes)
• Extended battery life: up to 12h on transmitter, 7h on receiver
• Magnetically stackable components for versatile mounting
• Industry leading 134 dB dynamic range for distortion free transmission
• Up to 56 MHz bandwidth for flexibility in any RF environment
• Exceptionally low latency (1.9 ms)
• External charging and powering via USB-C (receiver only)
• Smart Assist app for monitor & control
• Optional plug-on transmitter features XLR & 3.5mm inputs, +48V & recording via microSD (ENG Set or component only)
Delivery includes :
• EW-DP EK digital portable single channel receiver
• Mounting kit (Mounting plate, cold shoe, belt clip & screws)
• BA 70 li-ion battery & (2) AA battery
• Locking 3.5 mm TRS plug to 3.5 mm TRS plug cable
• Locking 3.5 mm TRS plug to XLR plug cable
• USB-C charging cable
Range S1-7 ( 606.200-662.000 MHz )
Range S1-7 is suitable for use on bandwidth between 606-614MHz ( Channel 38 ) in the UK, which is covered by a standard UK radio mic licence. This is the best solution for most users and offers reliable results for portable use.
Other frequency ranges are available, which are suitable for limited licence-exempt use and for fixed site users. Please call our Sales Team on 01707 332104 if you would like to discuss this further, we will be happy to offer specific advice.
