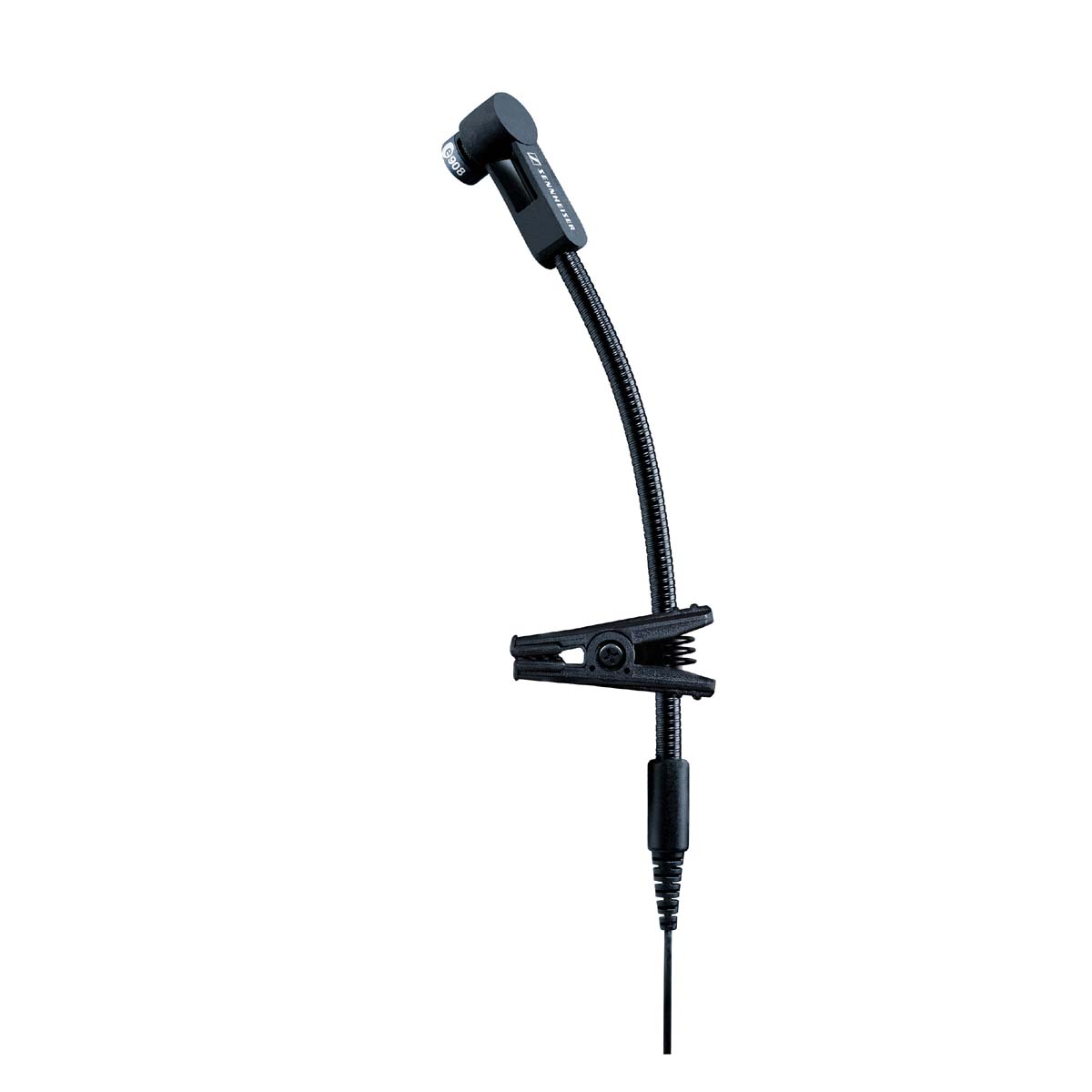

The E908B-EW is a cardioid condenser instrument microphone suitable for wind instruments, congas, drums. EW version for use with Evolution transmitters fitted with 3.5mm minijack connector.
Solid, focused and precisely positionable. The high-end sound of a condenser microphone is combined with the features of professional stage equipment to make the e 908 a small, highly flexible marvel. With an open and high-definition character, it creates surprisingly forceful sounds. It transmits the attack in a very clear and defined manner while structure-borne noise is reliably suppressed. Thanks to its shock-mounted head, gooseneck and special clips, the e 908 can be quickly attached and precisely oriented to the sound source.
Solid, focused and precisely positionable. The high-end sound of a condenser microphone is combined with the features of professional stage equipment to make the e 908 a small, highly flexible marvel. With an open and high-definition character, it creates surprisingly forceful sounds. It transmits the attack in a very clear and defined manner while structure-borne noise is reliably suppressed. Thanks to its shock-mounted head, gooseneck and special clips, the e 908 can be quickly attached and precisely oriented to the sound source.
Technical Data
Dimensions Ø 47 x 193 mm
Connector 3,5mm locking mini jack
Transducer principle (Microphone) pre-polarised condenser microphone
Frequency response 40 - 20000 Hz
Weight ca. 140 g
Pick-up pattern cardioid
Sensitivity in free field, no load (1kHz) 4 mV/Pa
Nominal impedance 100 Ohm
Min. terminating impedance 2000 Ohm
Phantom powering 12 - 48 V / 3 mA
Max. Sound pressure level (active) e908B-ew = 30 dB(A)
Equivalent noise level 30 dB(A)
