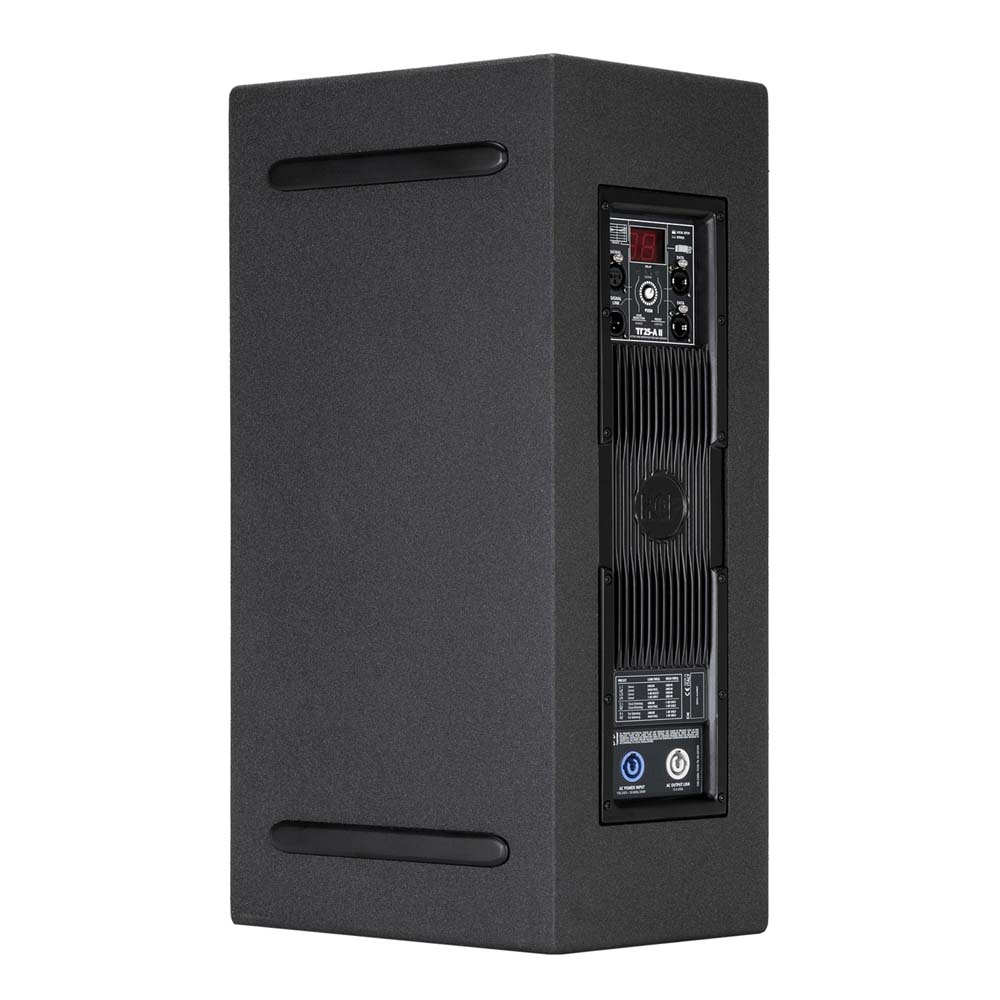

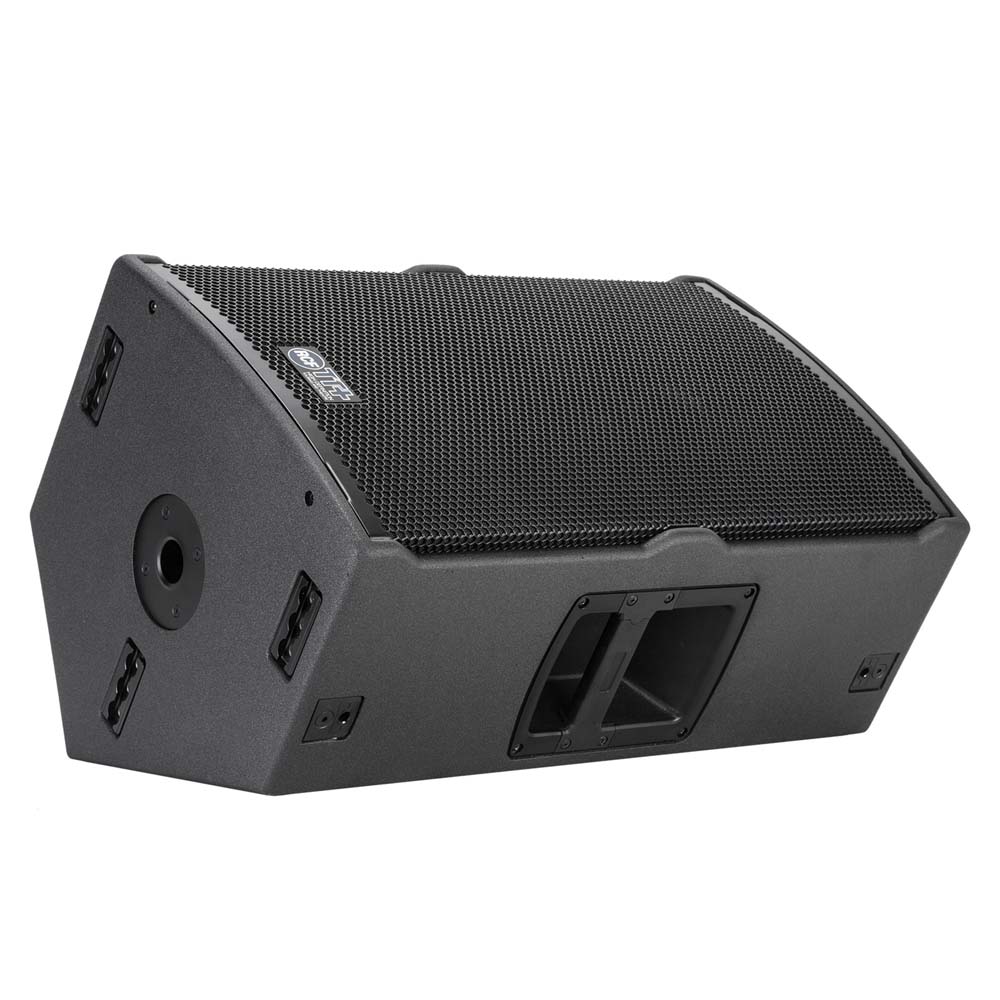

The TT25-A II is the most flexible and powerful tool in its class. TT25-A II offers very high output and dynamics, and extreme linearity and accuracy in a compact size.
TT25-A II is a 2-way active system featuring a 15 inch neo woofer, 86 mm voice coil in a bass reflex configuration; 1,5 inch exit, 75 mm voice coil neo compression driver; 90° x 60° constant directivity horn, 90° rotating.
The TT25-A II is the ideal professional speaker for sound reinforcement, live performances and events.
FEATURES
1100 W Class D Amplifier
90 x 60 constant directivity coverage angle
15" neo woofer, 3.5" voice coil
1.5 " neo c. driver, 4.0" voice coil
DSP Processing
Onboard RDNet Control
Multifunctional cabinet
Very high output
ACOUSTICAL SPECIFICATIONS
Frequency Response -3 dB:50 Hz ÷ 20000 Hz
Max SPL:134 dB
Horizontal coverage angle:90°
Vertical coverage angle:60°
Compression Driver:1.5 " neo, 4.0" voice coil
Woofer:15" neo, 3.5" voice coil
INPUT/OUTPUT SECTION
Input signal:Bal/unbal
Input connectors:XLR, RDNet onboard
Output connectors:XLR, RDNet onboard
Input sensitivity:-2 dBu / + 4 dBu
PROCESSOR SECTION
Crossover frequencies:750 Hz
Protections:Thermal, HF
Limiter:Fast limiter, dynamic
Controls:proces., 8 sel. presets
AMPLIFIER SPECIFICATIONS
Total power:1100 W RMS
High frequencies:300 W RMS
Low frequencies:800 W RMS
Cooling:Convection
Connections:Powercon in/out
CABINET
Cabinet Material:Baltic birch
Hardware:6xFly tracks, quick lock, pole mount
Handles:2 on side
Pole Mount/Cap:Yes
Colour:Black
PHYSICAL SPECIFICATIONS
Height:670 / 26.37 mm/inch
Width:425 / 16.73 mm/inch
Depth:425 / 16.73 mm/inch
Net Weight:26 / 57.3 kg/lbs
