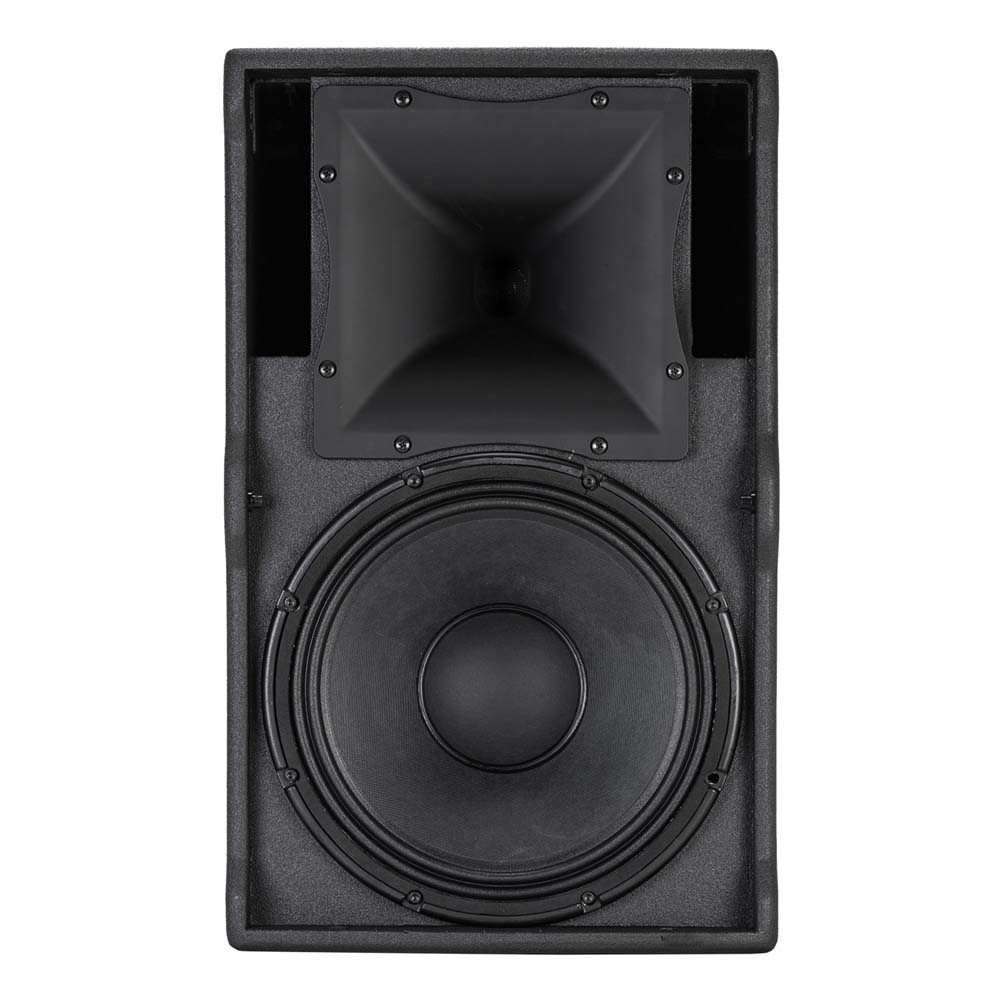

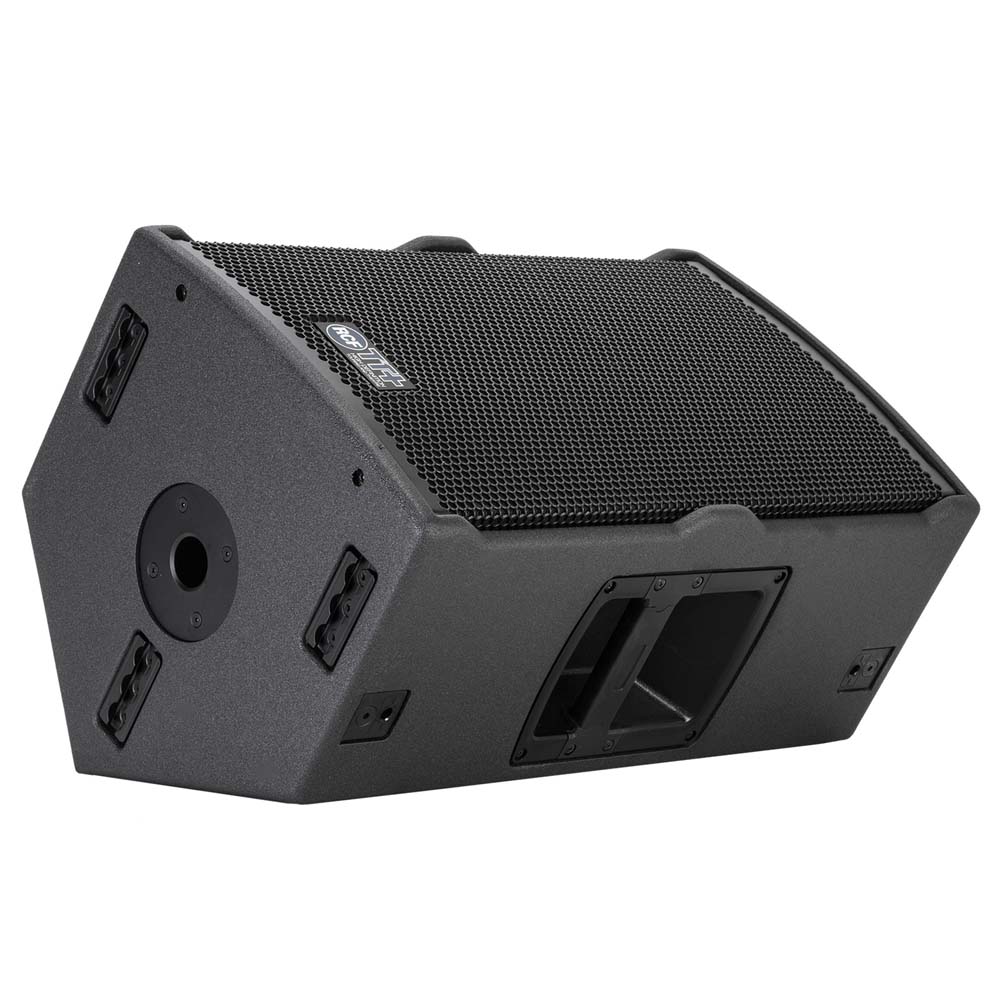

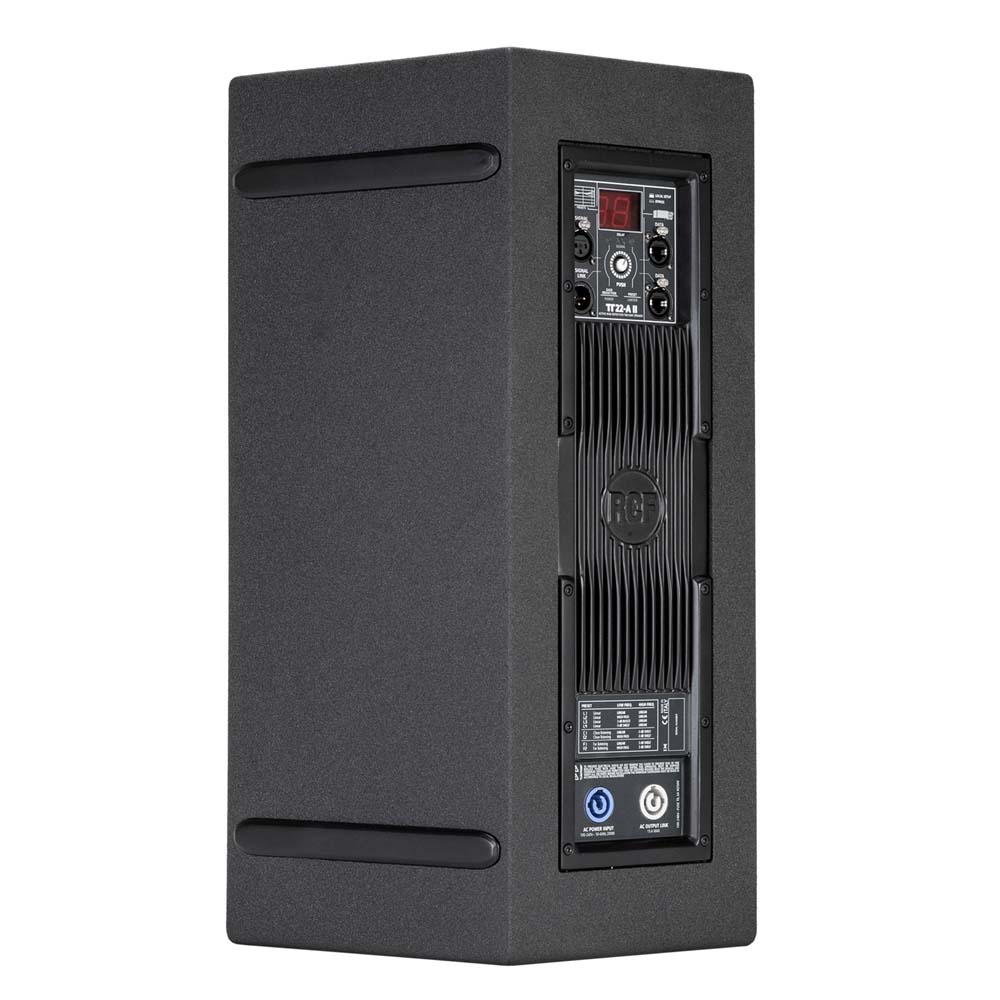

The RCF TT22-A II is a 2-way active system featuring a 12 inch neodymium woofer, 86 mm voice coil in a bass reflex configuration and a 1.4 inch exit, 75 mm voice coil neo compression driver. An extremely careful acoustic design plus the highest quality transducers and a powerful amplifier make the TT22-A II speaker system the perfect solution from live sound situations to playback and monitoring. The amplifier section features 1100 watt power - 800 watt low frequency, 300 watt high frequency. The cabinet is made of marine Baltic birch plywood and features high-resistance polyurea coating. The cabinets has 2 side handles, 6 x fly-track rigging points, quick lock pin receptacles and a steel pole mount.
1100 W Class D Amplifier
90 x 60 constant directivity coverage angle
12" neo woofer, 3.5" mm voice coil
1.5 " neo c. driver, 3.0" mm voice coil
DSP Processing
Onboard RDNet Control
Multifunctional cabinet
Very high output
ACOUSTICAL SPECIFICATIONS
Frequency Response -3 dB:50 Hz ÷ 20000 Hz
Max SPL:131 dB
Horizontal coverage angle:90°
Vertical coverage angle:60°
Compression Driver:1.5" neo, 3.0" voice coil
Woofer:12" neo, 3.5" voice coil
INPUT/OUTPUT SECTION
Input signal:Bal/unbal
Input connectors:XLR, RDNet onboard
Output connectors:XLR, RDNet onboard
Input sensitivity:-2 dBu / + 4 dBu
PROCESSOR SECTION
Crossover frequencies:800 Hz
Protections:Thermal, HF
Limiter:Fast limiter, dynamic
Controls:proces., 8 sel. presets
AMPLIFIER SPECIFICATIONS
Total power:1100 W RMS
High frequencies:300 W RMS
Low frequencies:800 W RMS
Cooling:Convection
Connections:Powercon in/out
CABINET
Cabinet Material:Baltic birch
Hardware:6 x fly tracks, quick lock, pole mount
Handles:2 on side
Pole Mount/Cap:Yes
Colour:Black
PHYSICAL SPECIFICATIONS
Height:600 / 23.62 mm/inch
Width:365 / 14.37 mm/inch
Depth:379 / 14.92 mm/inch
Net Weight:22.6KG
