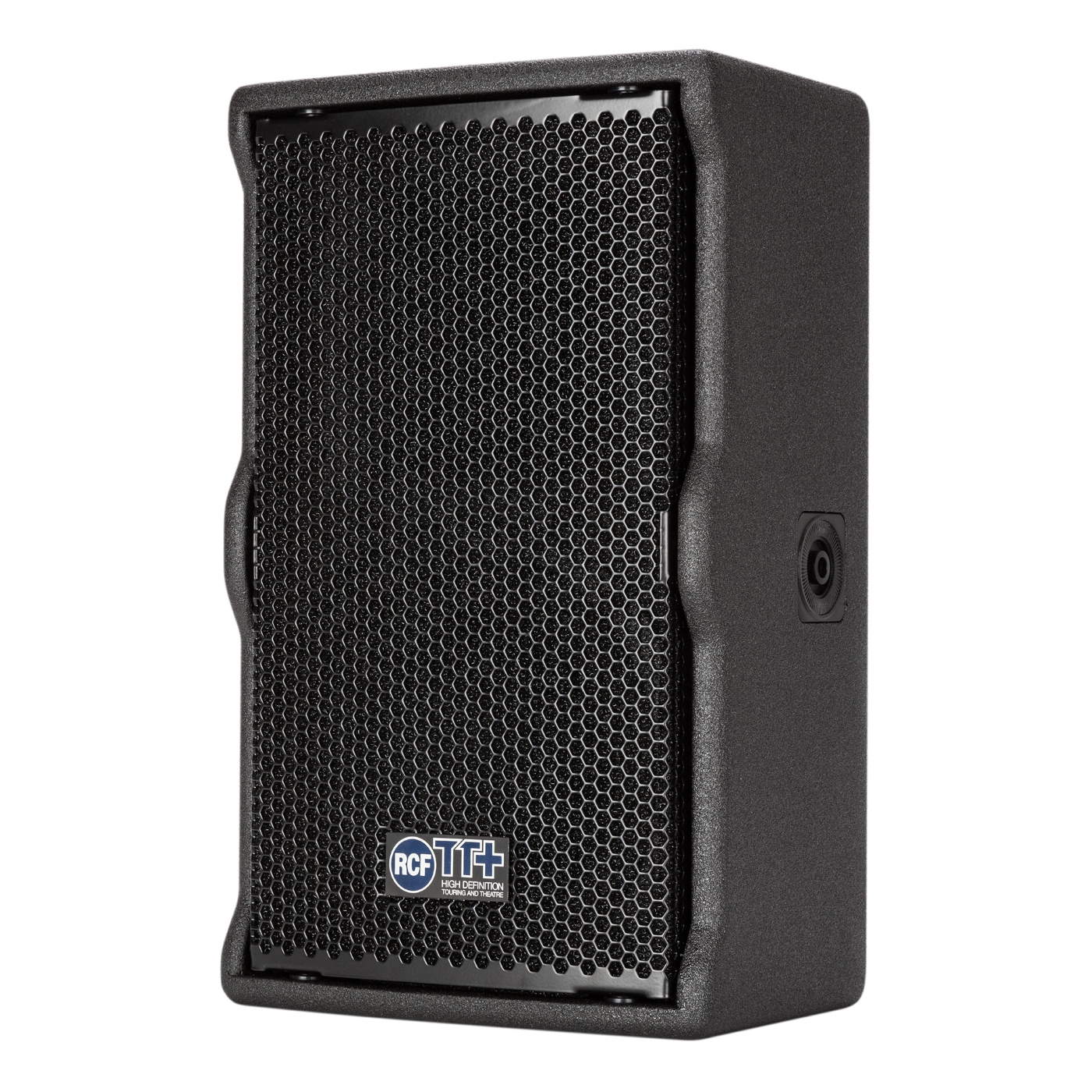

The RCF TT08-A II is by far the smallest member of the TT+ family, whilst being the most flexible and powerful tool in its class. Perfect for live sound to playback and monitoring, corporate events and broadcast studios. Though remarkably compact and lightweight, the TT 08-A II offers an incredible maximum sound pressure level of 128 dB. Its performance efficiency is higher than many larger 10” speaker systems.
128 dB SPL Max
1000W RMS, two-way Class-D amplifier
Rotatable 90° x 70° constant directivity horn
Quick Fit Bracket Socket
FiRPHASE
8’’ neodymium Woofers, 2.5’’ voice coil
Horn-loaded 1” neo comp. driver, 1,75’’ voice coil
RDNet Networked Management
60 - 20000 Hz Frequency Range
Acoustical specifications
FREQUENCY RESPONSE:
65 Hz - 20000 Hz
MAX SPL @ 1M:
128 dB
HORIZONTAL COVERAGE ANGLE:
90°
VERTICAL COVERAGE ANGLE:
70°
Transducers
COMPRESSION DRIVER:
1 x 1.0'' neo, 1.75'' v.c
WOOFER:
8'' neo, 2.5'' v.c
Input/Output section
INPUT SIGNAL:
bal/unbal
INPUT CONNECTORS:
XLR, RDNet Ethercon
OUTPUT CONNECTORS:
XLR, RDNet Ethercon
INPUT SENSITIVITY:
-2 dBu/+4 dBu
Processor section
CROSSOVER FREQUENCIES:
900 HZ
PROTECTIONS:
Thermal, HF
LIMITER:
Fast Limiter
CONTROLS:
Bypass, Linear/High Pass, Volume, RDnet on boar
RDNET:
Yes
Power section
TOTAL POWER:
2000 W Peak, 1000 W RMS
HIGH FREQUENCIES:
600 W Peak, 300 W RMS
LOW FREQUENCIES:
1400 W Peak, 700 W RMS
COOLING:
Convection
CONNECTIONS:
Powercon IN/OUT
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Baltic birch plywood
HARDWARE:
3X M10 TOP AND BOTTOM 2X PIN D.10 AND M10 SIDE

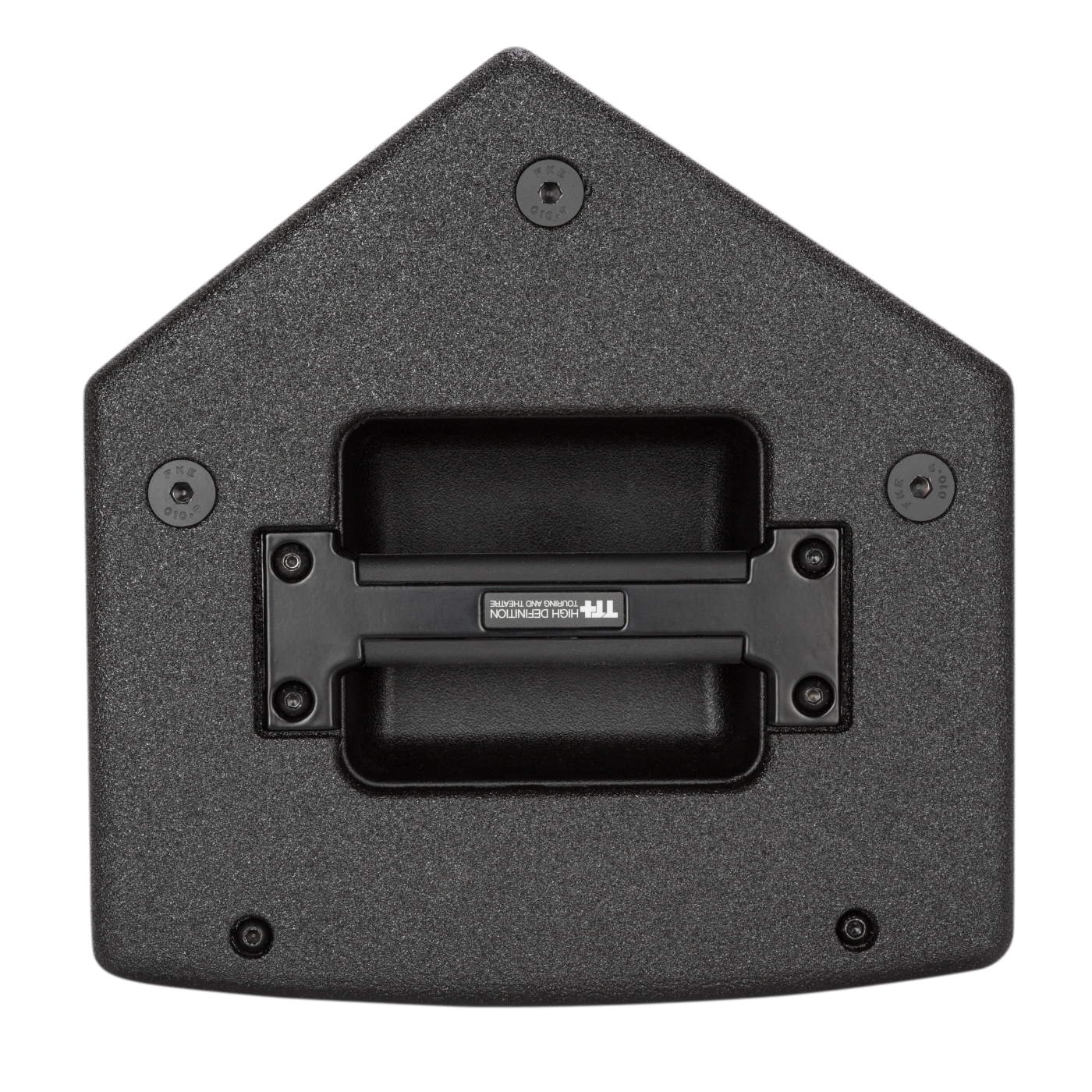

HANDLES:
1 TOP
GRILLE:
Steel
COLOR:
Black
Size
HEIGHT:
450 mm / 17.72 inches
WIDTH:
270 mm / 10.63 inches
DEPTH:
278 mm / 10.94 inches
WEIGHT:
11 kg / 24.25 lbs
Shipping informations
PACKAGE HEIGHT:
500 mm / 19.69 inches
PACKAGE WIDTH:
330 mm / 12.99 inches
PACKAGE DEPTH:
320 mm / 12.6 inches
PACKAGE WEIGHT:
12.7 kg / 28 lbs
