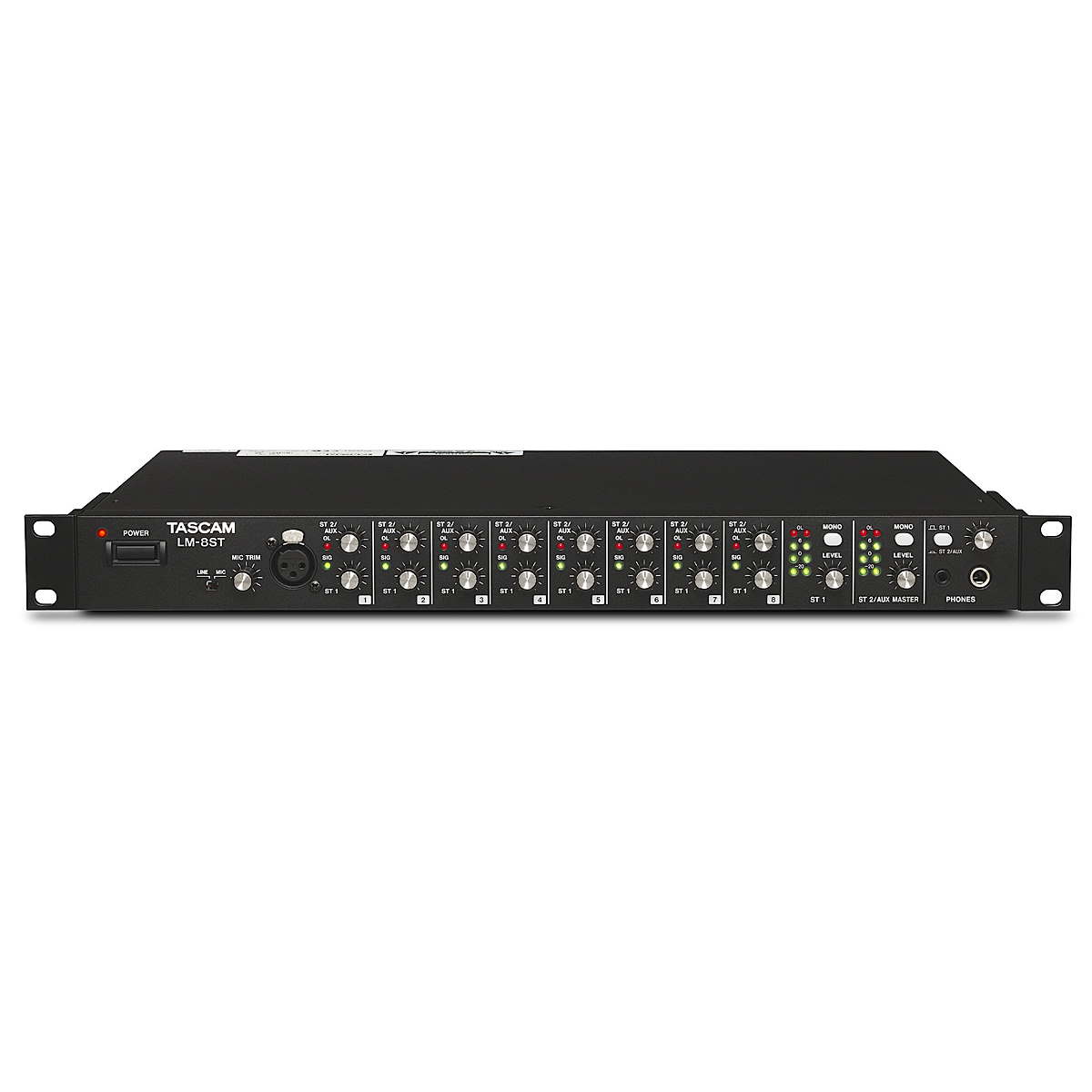

The LM-8ST is a compact line mixer for installation, studio submixing, keyboardists or anyone who needs a mix of line signal sources. Eight stereo input sources like CD/MP3 players, tuners, instruments etc. can be routed independently to a pair of stereo outputs. For the second output the user can choose between pre and post-fader routing. Input and output level controls and metering keep signals under control. A microphone input is also provided for announcements or performance. Master bus inputs and outputs are available for cascading multiple units.
The LM-8ST is housed in a rugged rack-mountable chassis and has a built-in power supply (no AC adapter) for many years of safe and reliable operation.

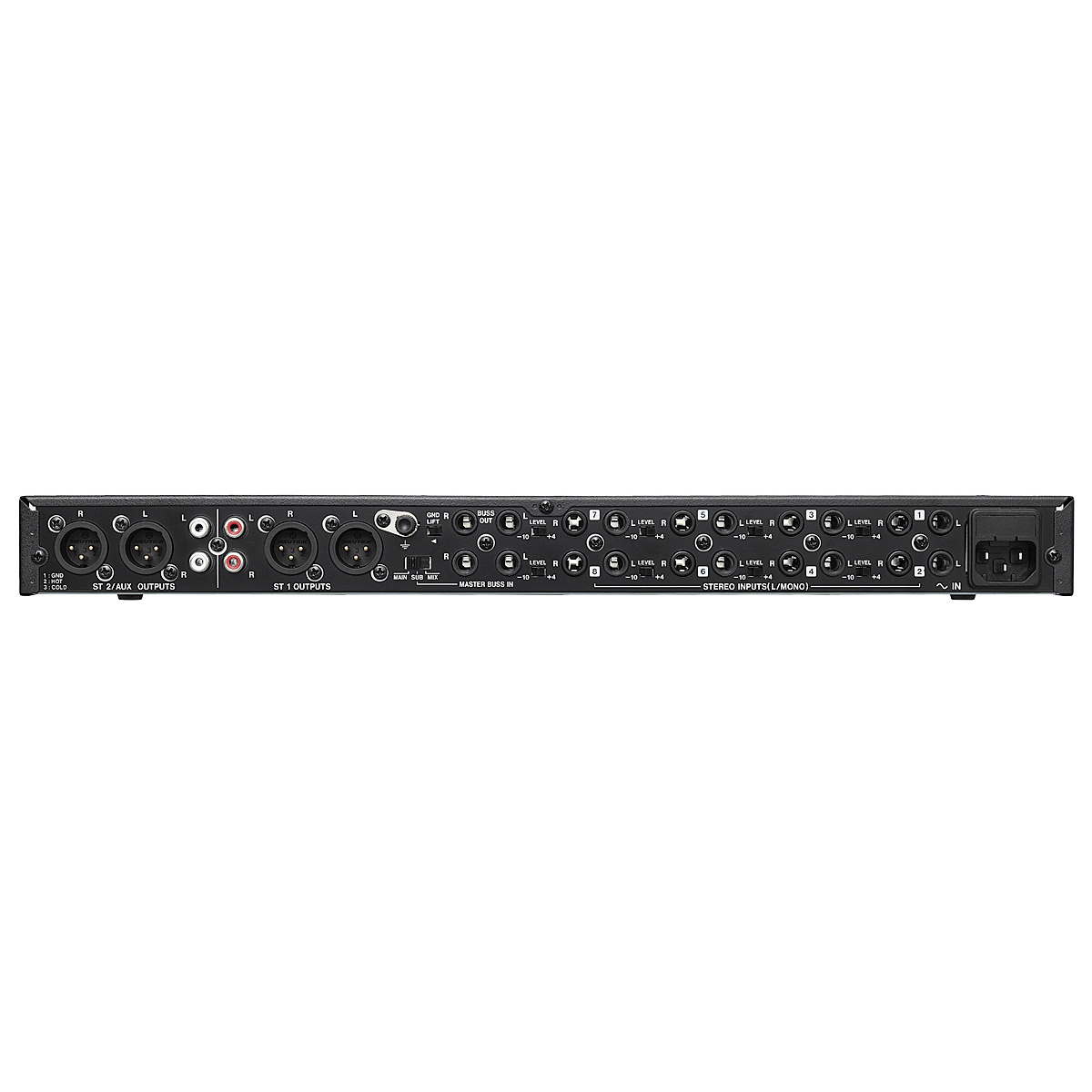

Audio inputs and outputs
Mic input
XLR (balanced)
Input impedance
2.4 k?
Nominal input level
–58 dBu (1 mV) to –12 dBu (195 mV)
Maximum input level
+10 dBu (2.45 V)
Stereo inputs
6.3-mm TRS (balanced)
Input impedance
56 k?
Nominal input level
+4 dBu (1.23 V)
Maximum input level
+24 dBu (12.3 V)
Master bus input
6.3-mm TRS (balanced)
Input impedance
56 k?
Nominal input level
+4 dBu (1.23 V)
Maximum input level
+24 dBu (12.3 V)
ST1, ST2/AUX outputs
XLR (balanced)
Output impedance
94 ?
Nominal output level
+4 dBu (1.23 V)
Maximum output level
+24 dBu (12.3 V)
ST1, ST2/AUX outputs
RCA (unbalanced)
Output impedance
200 ?
Nominal output level
–10 dBV (0.3V)
Maximum output level
+10 dBV (3.16 V)
Bus output
6.3-mm TRS (balanced)
Output impedance
94 ?
Nominal output level
+4 dBu (1.23 V)
Maximum output level
+24 dBu (12.3 V)
Headphones output
6.3-mm TRS (stereo), 3.5-mm TRS (stereo)
Maximum output power
250 mW + 250 mW (at 32 ?)
Audio performance
Frequency response
20 Hz–50 kHz, ±3 dB (PHONES outputs)
10 Hz–100 kHz, ±3 dB (BUSS output)
S/N ratio
=80 dB(A) (PHONES outputs, 20 kHz LPF)
=80 dB(A) (BUSS output, 20 kHz LPF)
THD
=0.07% (PHONES outputs, when outputting 100 mW + 100 mW (32 ?), 20Hz HPF and 20 kHz LPF)
=0.03% (BUSS output, 20 Hz HPF and 20 kHz LPF)
Channel separation
=50 dB(A) (PHONES outputs, 20 kHz LPF, 1 kHz nominal input and output, 32 ? termination)
=70 dB(A) (BUSS outputs, 20 kHz LPF, 1 kHz nominal input and output, 600 ? termination)
Crosstalk
=65 dB(A) (BUSS outputs, 20 kHz LPF, 1 kHz nominal input and output, 600 ? termination)
Power supply and other specifications
Voltage requirements
AC 100–240V, 50–60 Hz
Power consumption
15 W
Dimensions (WHD)
482 mm x 44 mm x 280 mm
Weight
3.8 kg
Operating temperature range
5–35 °C
Included items
Power cord, Rack-mounting screw kit, Warranty card, Owner’s manual
