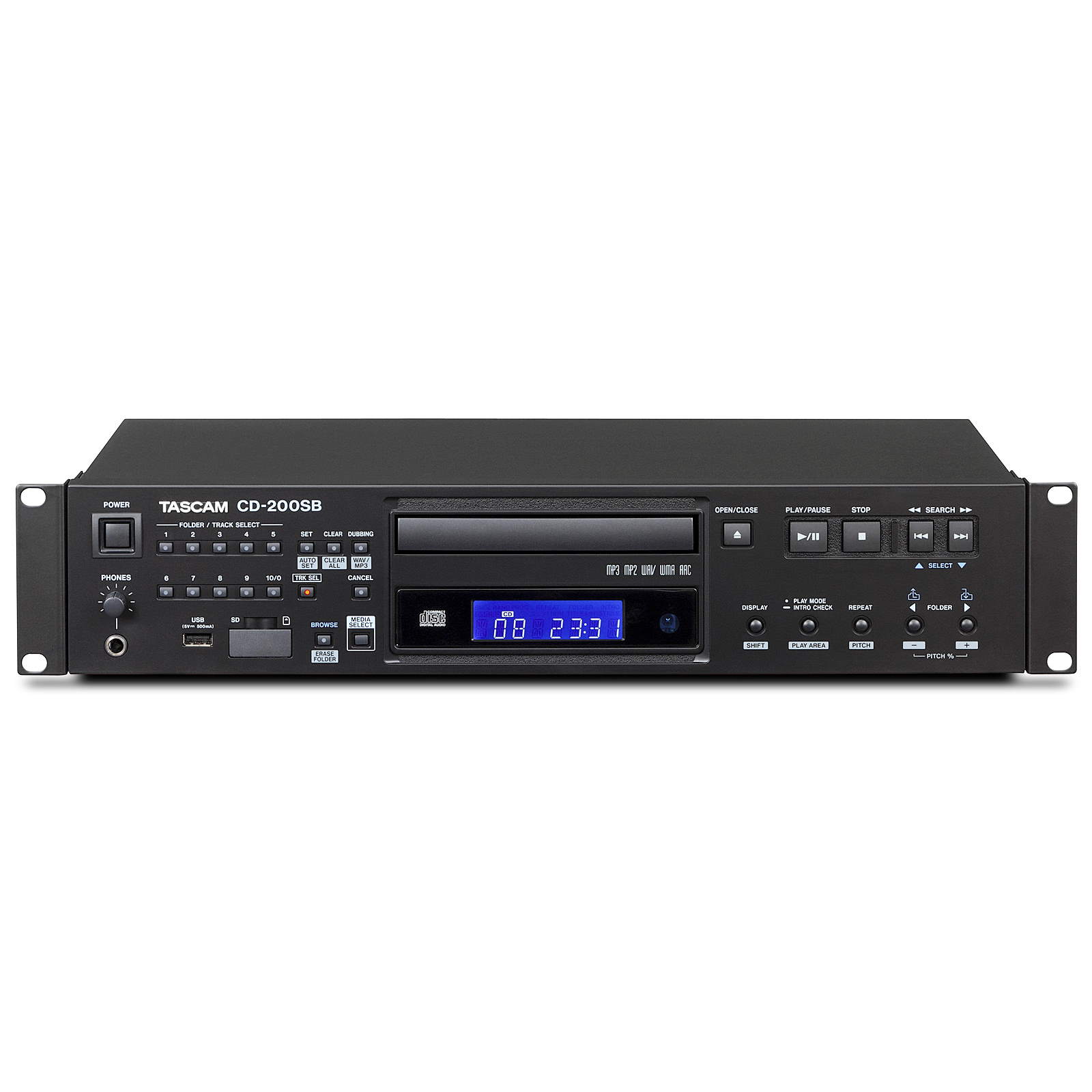

The Tascam CD-200SB is a rugged, universal playback device for audio material available on solid-state media such as SD/SDHC memory cards and USB sticks or on CDs (CD-DA, CD-R, CD-RW). It supports file formats such as WAV, MP3, MP2, WMA and AAC and provides ten keys for direct access to freely selectable folders of a solid-state medium. This makes it the ideal replacement for any aged CD changer. The unit can also extract tracks from audio CDs to SD/SDHC/USB media in either WAV or MP3 format for archiving purposes or to make them more readily available.
The CD-200SB offers functions like Single, Shuffle, Program and Repeat playback, Intro Check and Pitch Control (±14 %). CD-Text and ID3/WMA/AAC tags are also supported to allow artist and track names to be displayed on the unit. And there is an anti-shock memory (10 seconds) available to protect against dropouts. On the output stage, balanced and unbalanced analogue outputs, a headphone output with level control and coaxial and optical digital outputs ensure integration into nearly any conceivable environment. A wireless remote control is also included.
General
Supported media types
CD, CD-R and CD-RW discs (including 12cm, 8cm and multisession discs and discs with CD text)
The following types of media must be formatted in FAT16 or FAT32 format:
USB: (4–64 GB)
SD: (2 GB)
SDHC: (4–32GB)
Playback file formats
CD-DA
44.1kHz, 16-bit stereo
MP2
32/44.1/48 kHz, 32–320 kbps (data CDs/SD cards/USB flash drives)
MP3
32/44.1/48 kHz, 32–320 kbps, VBR (data CDs/SD cards/USB flash drives)
WAV
8/16/32/11.025/22.05/44.1/12/24/48 kHz, 16-bit (data CDs/SD cards/USB flash drives)
AAC*
32/44.1/48 kHz, 32–320 kbps, VBR (SD cards/USB flash drives)
WMA**
32/44.1/48 kHz, 32–384 kbps, VBR (SD cards/USB flash drives)
*AAC DRM not supported
**WMA files must be compliant with Ver. 9 Standard; DRM is not supported.
Formats of dubbed files
WAV: 44.1 kHz, 16-bit stereo
MP3: 44.1 kHz, 64/128/256 kbps

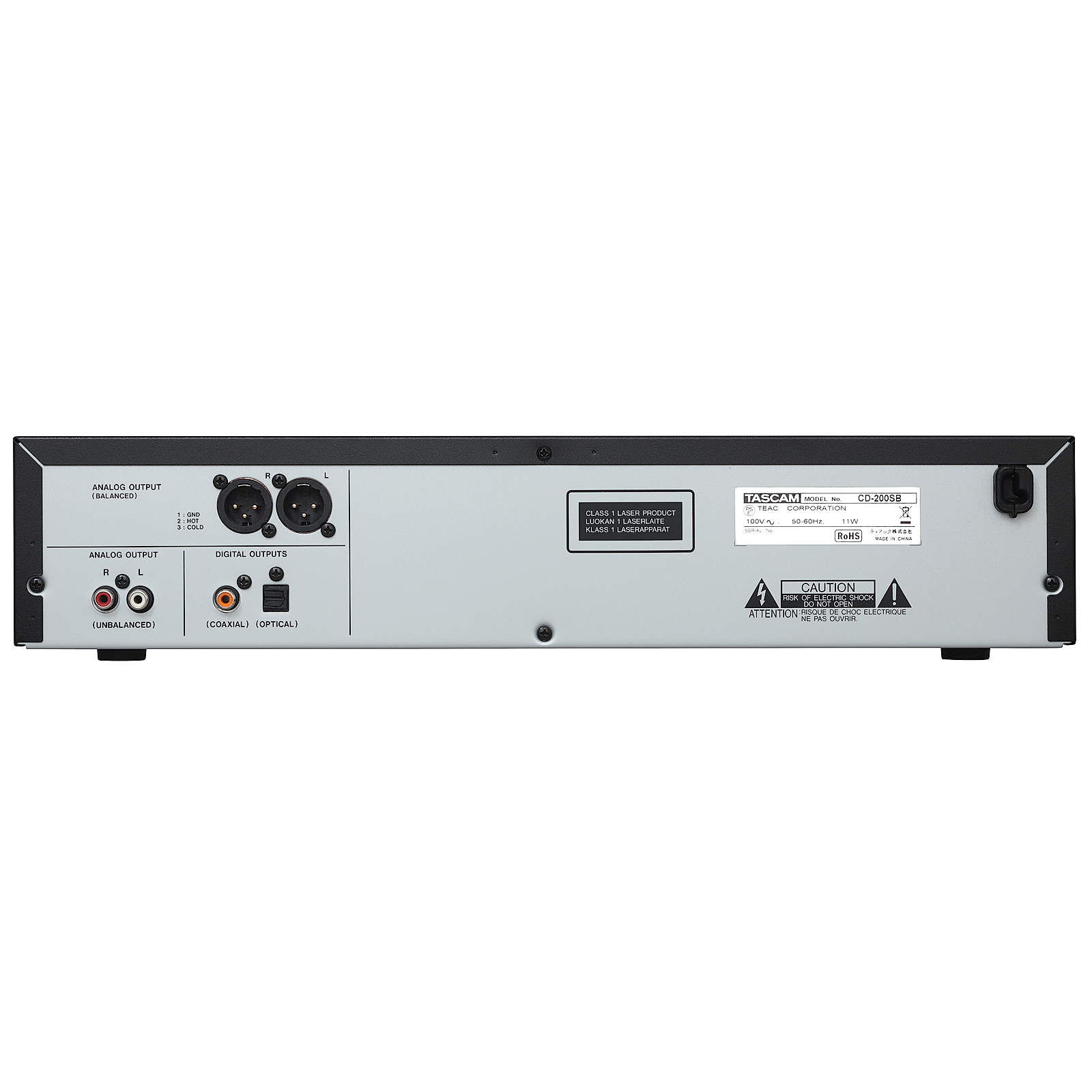

Analogue audio outputs
ANALOG OUTPUT (BALANCED)
XLR-3-32 (1: GND, 2: HOT, 3: COLD)
Output impedance
200 ?
Reference output level
+4 dBu (1.23 Vrms)
Maximum output level
+20 dBu (7.75 Vrms)
ANALOG OUTPUT (UNBALANCED)
RCA pin jack
Output impedance
200 ?
Reference output level
–10 dBV (0.32 Vrms)
Maximum output level
+6 dBV (2.0 Vrms)
PHONES output
6.3-mm stereo phone jack
Maximum output power
20 mW + 20 mW (THD+N: 0.1%, 32 ?)
Digital audio outputs
DIGITAL OUTPUT (COAXIAL)
RCA pin jack
Compatible signal format
IEC-60958-3 (S/PDIF)
DIGITAL OUTPUT (OPTICAL)
Optical connector
Compatible signal format
IEC-60958-3 (S/PDIF)
Audio performance
Frequency Response
20 Hz – 20 kHz ±1.5 dB (playback, JEITA)
Signal-to-Noise Ratio (S/N)
>90 dB (playback, JEITA)
Total Harmonic Distortion
<0.01% (playback, JEITA)
Dynamic Range
>90 dB (playback, JEITA)
Channel Separation
>90 dB (playback, JEITA)
Power supply and other specifications
Power Requirement
AC 120 V, 60 Hz (U.S.A./Canada)
AC 230 V, 50 Hz (U.K./Europe)
AC 240 V, 50 Hz (Australia)
Power Consumption
11 W
Dimensions (W x H x D)
481 mm x 95 mm x 298 mm
Weight
4.7 kg
Operating temperature
5–35 °C
Inclination of installation
5° or less
