** Please note Model 16 and Model 24 mixers do not act as a DAW control surface - Only the Model 12 has this capability. Model 16 and 24 do have USB audio interface capability for use with DAW systems **
The Classic, Reborn – The professional hybrid console with the warmth of analogue and the latest modern technology
TASCAM has continuously been providing industry-leading recording solutions such as the TASCAM 38 Open Reel 8-track, the DA-88 Digital 8-track and the legendary Portastudio family of Analog Cassette and Digital Multi-track recorders. Now, TASCAM is reinventing its legacy, one of its classic lineups, infused with the latest audio technology; The brand new, beautiful multi-track live recording console, Model 24.
Whether for your rehearsals, live shows or production, Model 24 is the most ideal true multi-track recorder, mixer and audio interface. The triple-function hybrid recording console has evolved to perfectly meet today’s music industry demands.
The Classics, Reborn.

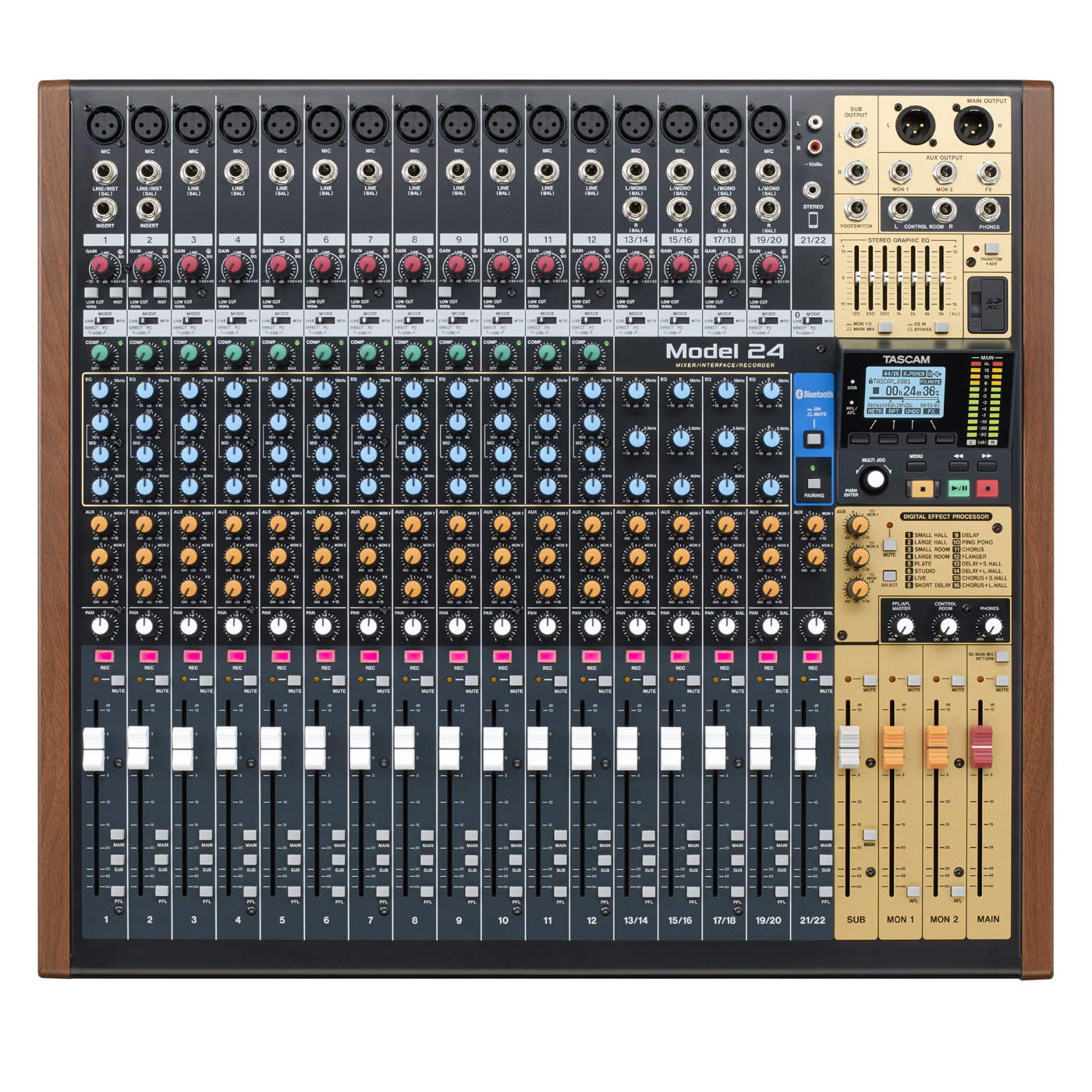

22-channel analogue mixing console with built-in 24-track recorder and USB audio interface
Mixer features :
22 analogue inputs
12 TASCAM Ultra-HDDA microphone preamps with switchable phantom power (48 V) on 12 mono and 4 stereo channels
Two high-impedance instrument inputs (channels 1 and 2)
20 balanced line inputs (12 mono, 4 stereo)
One multi-purpose stereo channel for input from Bluetooth, RCA connectors or stereo mini-jack connector
Inserts on input channels 1 and 2
Main stereo bus, sub stereo bus, two aux/monitor buses, effects bus
1-knob compressor for channels 1–12
3-band equalizer with sweepable mids for 12 mono channels, fixed mids on 4 stereo channels
Switchable low-cut filter for 12 mono and 4 stereo channels
7-band graphic stereo equalizer – can be used for main stereo bus or aux/monitor bus
Built-in Bluetooth receiver for wireless playback
On-board effects processor
16 preset effects types
Can be used on 12 mono and 4 stereo channel sends to sub bus and main stereo bus
Can be turned on/off by an optional footswitch (Tascam RC-1F)
recorder and USB audio interface
Mixer features :
22 analogue inputs
12 TASCAM Ultra-HDDA microphone preamps with switchable phantom power (48 V) on 12 mono and 4 stereo channels
Two high-impedance instrument inputs (channels 1 and 2)
20 balanced line inputs (12 mono, 4 stereo)
One multi-purpose stereo channel for input from Bluetooth, RCA connectors or stereo mini-jack connector
Inserts on input channels 1 and 2
Main stereo bus, sub stereo bus, two aux/monitor buses, effects bus
1-knob compressor for channels 1–12
3-band equalizer with sweepable mids for 12 mono channels, fixed mids on 4 stereo channels
Switchable low-cut filter for 12 mono and 4 stereo channels
7-band graphic stereo equalizer – can be used for main stereo bus or aux/monitor bus
Built-in Bluetooth receiver for wireless playback
On-board effects processor
16 preset effects types
Can be used on 12 mono and 4 stereo channel sends to sub bus and main stereo bus
Can be turned on/off by an optional footswitch (Tascam RC-1F)
Large 100-mm faders for precise level adjustments
XLR balanced outputs for main stereo bus
TRS balanced outputs for sub, control room, aux 1 /2 and effects send
Headphones output with level control (80 mW + 80 mW)
Recorder features :
Tascam multi-track recording engine
Uses SD cards as recording media (up to 512 GB)
Up to 24 tracks (22 input channels + stereo mix) can be recorded without the need for a computer
Recording format: Linear PCM (WAV format, 44.1/48 kHz, 16/24 Bit)
Playback format: WAV
Overdubbing, punch in/out recording (eight channels maximum)
Multi-track playback for advanced live performance
Audio interface features :
USB 2.0 audio interface for use with Windows (ASIO) and Mac (Core Audio) computers
Transfer to computer: 24 channels (all 22 inputs + stereo mix)
Transfer from computer: 22 channels, assignable to each channel input
Audio resolution 44.1/48 kHz, 16/24 bit
