** Please note Model 16 and Model 24 mixers do not act as a DAW control surface - Only the Model 12 has this capability. Model 16 and 24 do have USB audio interface capability for use with DAW systems **

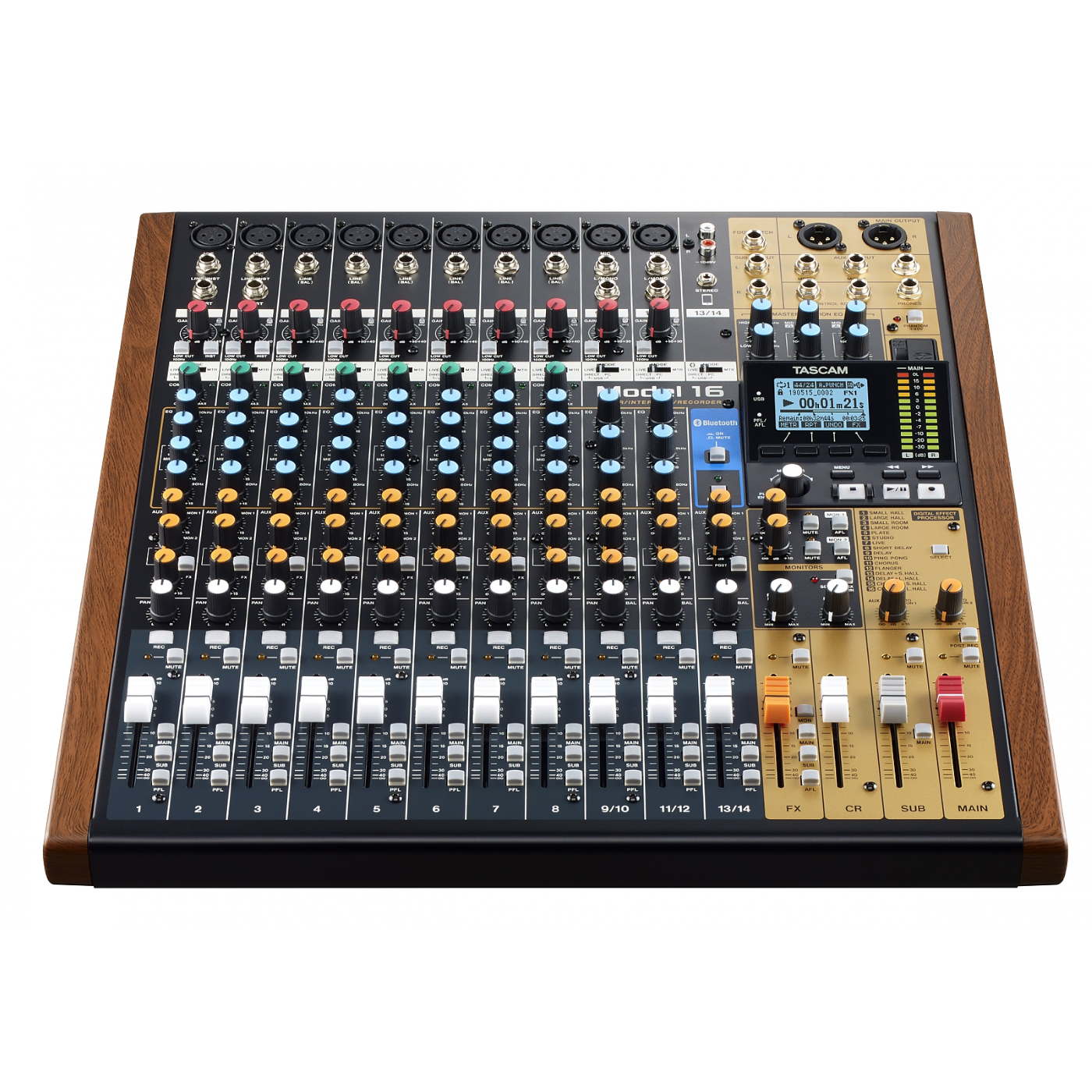

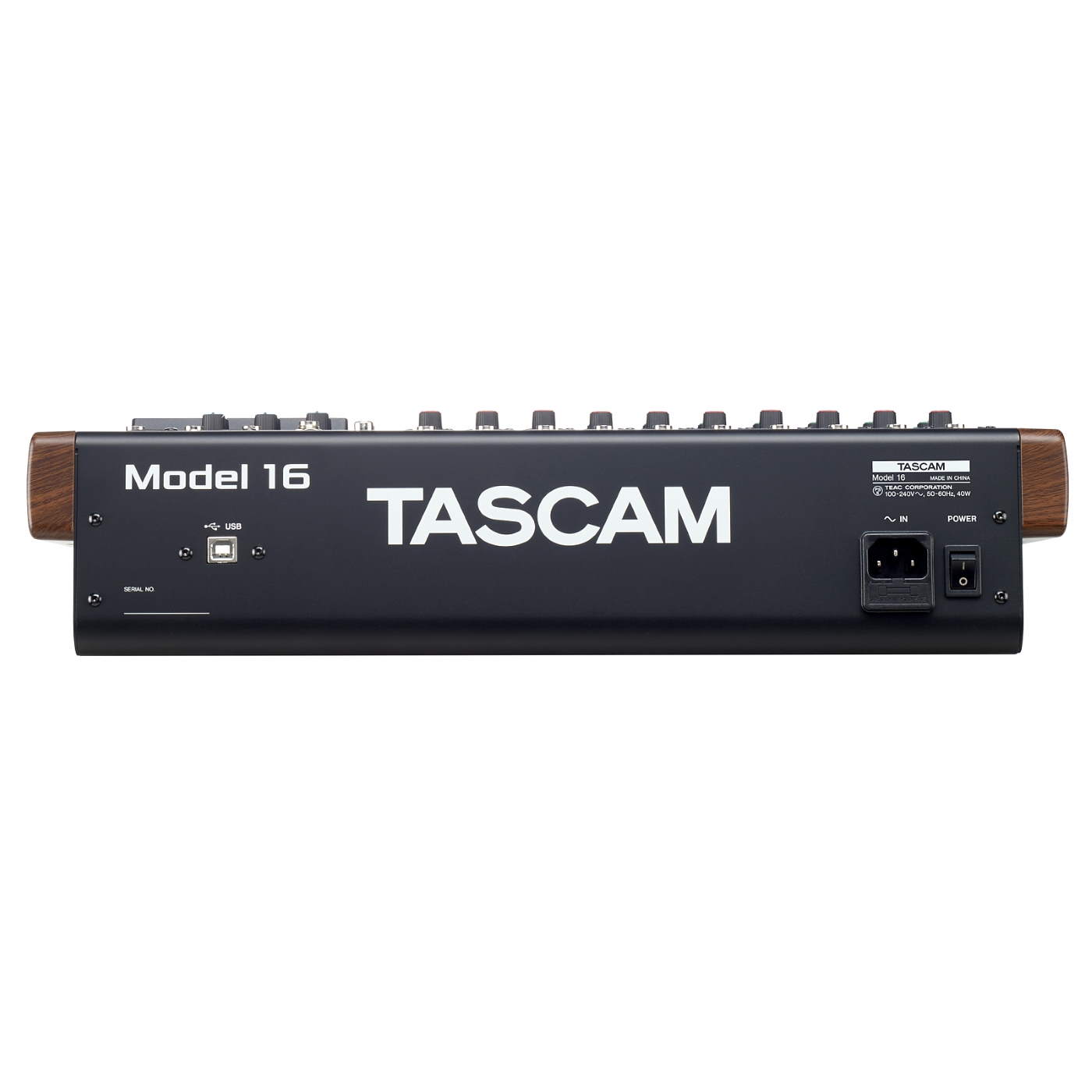

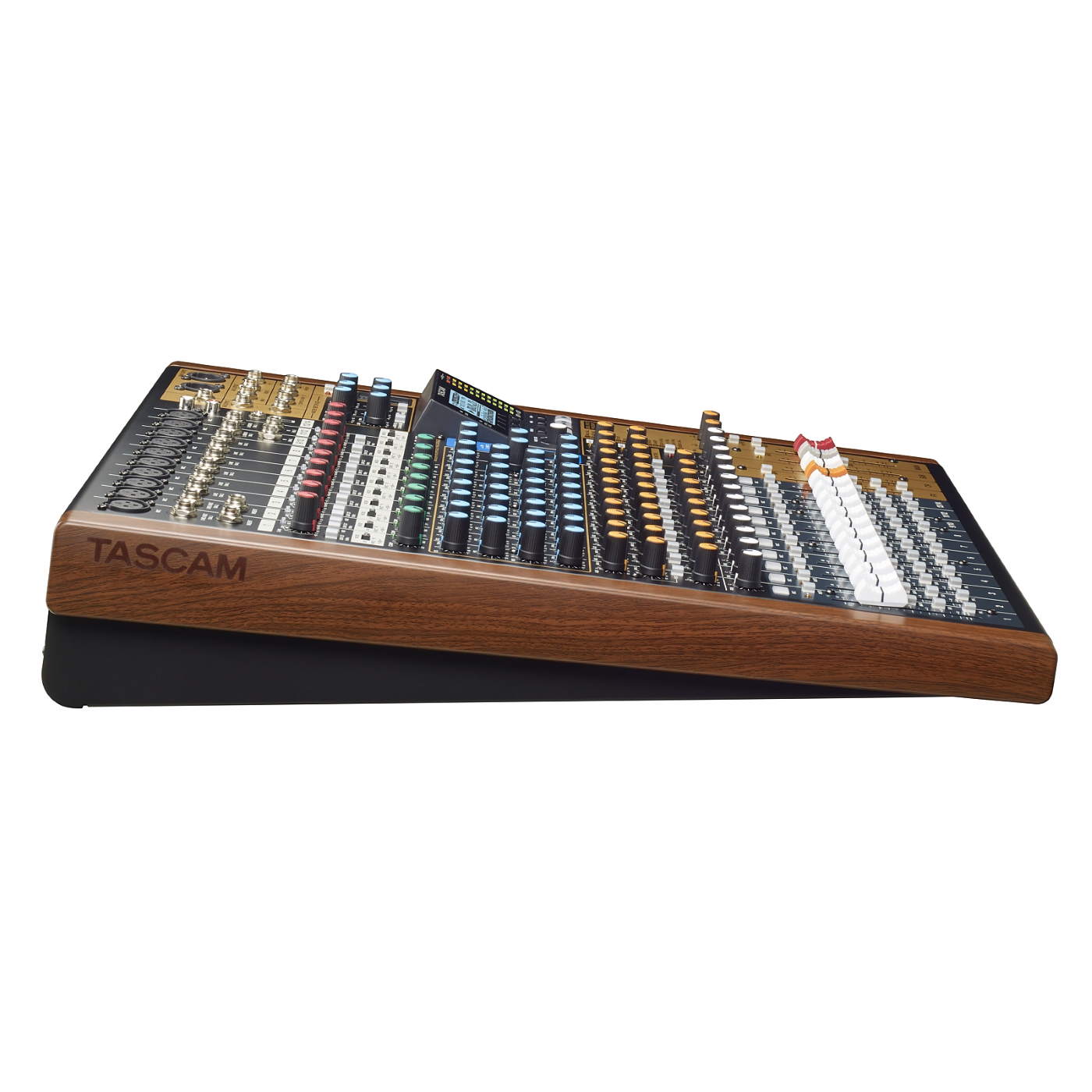

The Tascam Model 16 all-in-one mixer brings the flagship Model 24’s powerful recording and mixing features and functionality to a new level of compactness and affordability, creating a fully featured compact mixer that combines the warmth of analogue with a digital workflow. The Model 16 is the perfect mixing solution for small-format live performance, recording and production environments, featuring a multi-track recorder, USB audio interface, effects, comprehensive mixing and routing capabilities, and Bluetooth wireless.
With the Model 16, your perfect mix has met its match.
14-channel analogue mixing console with built-in 16-channel multi-track recorder and USB audio interface
Mixer features :
14 analogue inputs
10 Tascam Ultra-HDDA microphone preamps with switchable phantom power (48 V) on eight mono and two stereo channels
12 balanced line inputs (8 mono, 2 stereo)
One multi-purpose stereo channel for input from mobile devices via Bluetooth or via RCA connectors or stereo mini-jack connector (CH 13/14)
Inserts on input channels 1 and 2
Channels 1 and 2 can be used with high-impedance instruments like electric guitars/basses
Three Aux outputs (monitor 1 (pre fader), monitor 2 (pre/post fader), effects (post fader))
Three stereo outputs with independent master faders (Main, Sub, Control Room)
One-knob compressor for channels 1–8
Switchable low-cut filter (100 Hz) for eight mono and two stereo channels
Switchable Mute, Stereo/Sub routing and PFL on each input channel
Three-band equalizer with sweepable mids for eight mono channels, fixed mids on stereo channels
Semi-parametric EQ with two sweepable mid bands (wide/narrow) for stereo and sub outputs
Built-in Bluetooth receiver for wireless playback
On-board effects processor
16 effects types
Can be used on all input channels, monitor busses, sub and main stereo bus
Can be turned on/off by an optional footswitch (Tascam RC-1F)
60-mm faders on each channel
12-segment LED output level meters
XLR balanced outputs for main stereo bus
TRS balanced outputs for sub, control room, monitor 1/2 and effects send
Headphones output with level control (80 mW per channel)
Recorder features :
Tascam multi-track recording engine
Uses SD cards as recording media (up to 512 GB, Class 10 or higher required)
Up to 16 tracks (14 input channels + stereo mix) can be recorded without the need for a computer
Recording format: WAV (BWF), 44.1/48 kHz, 16/24 Bit
Playback format: WAV (BWF)
Overdubbing, punch in/out recording (eight channels maximum)
Multi-track playback for advanced live performance
Illuminated Play/Record/Stop buttons for better legibility in poorly lit environments
Audio interface features :
USB 2.0 audio interface for use with Windows (ASIO) and Mac (Core Audio) computers
Transfer to computer: 16 channels (all 14 inputs + stereo mix)
Transfer from computer: 14 channels, assignable to each channel input
Audio resolution 44.1/48 kHz, 16/24 bit
Other features :
Simple and quick menu operation with multi-jog dial
19-inch rack installation possible (with optional rackmount kit)
Internal power supply with removable power cord
