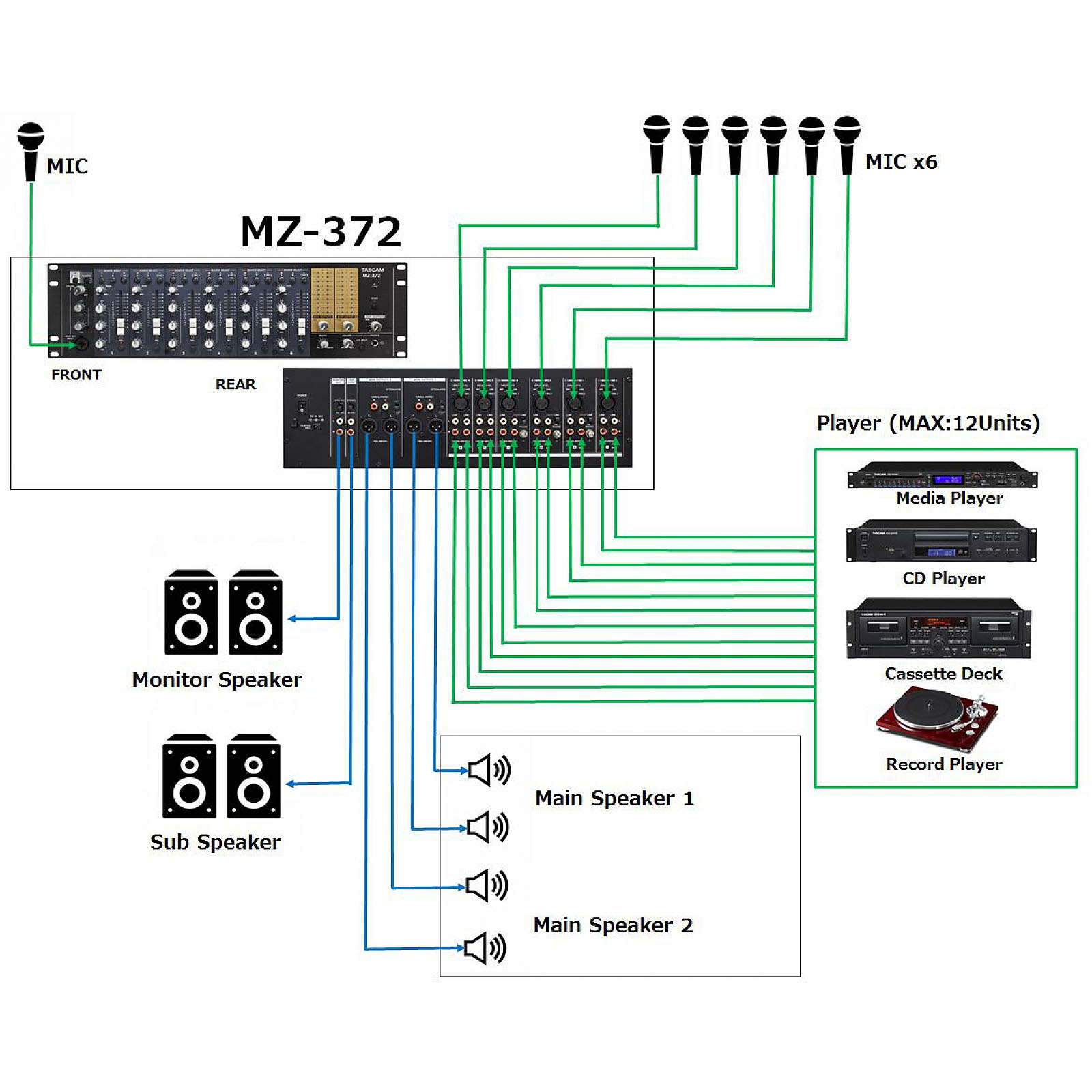

The MZ-372 is a rackmount mixer designed for fixed installations in hotels, conference centres, public facilities, theme parks or bars. It offers seven input channels, two pairs of main outputs and a sub output.

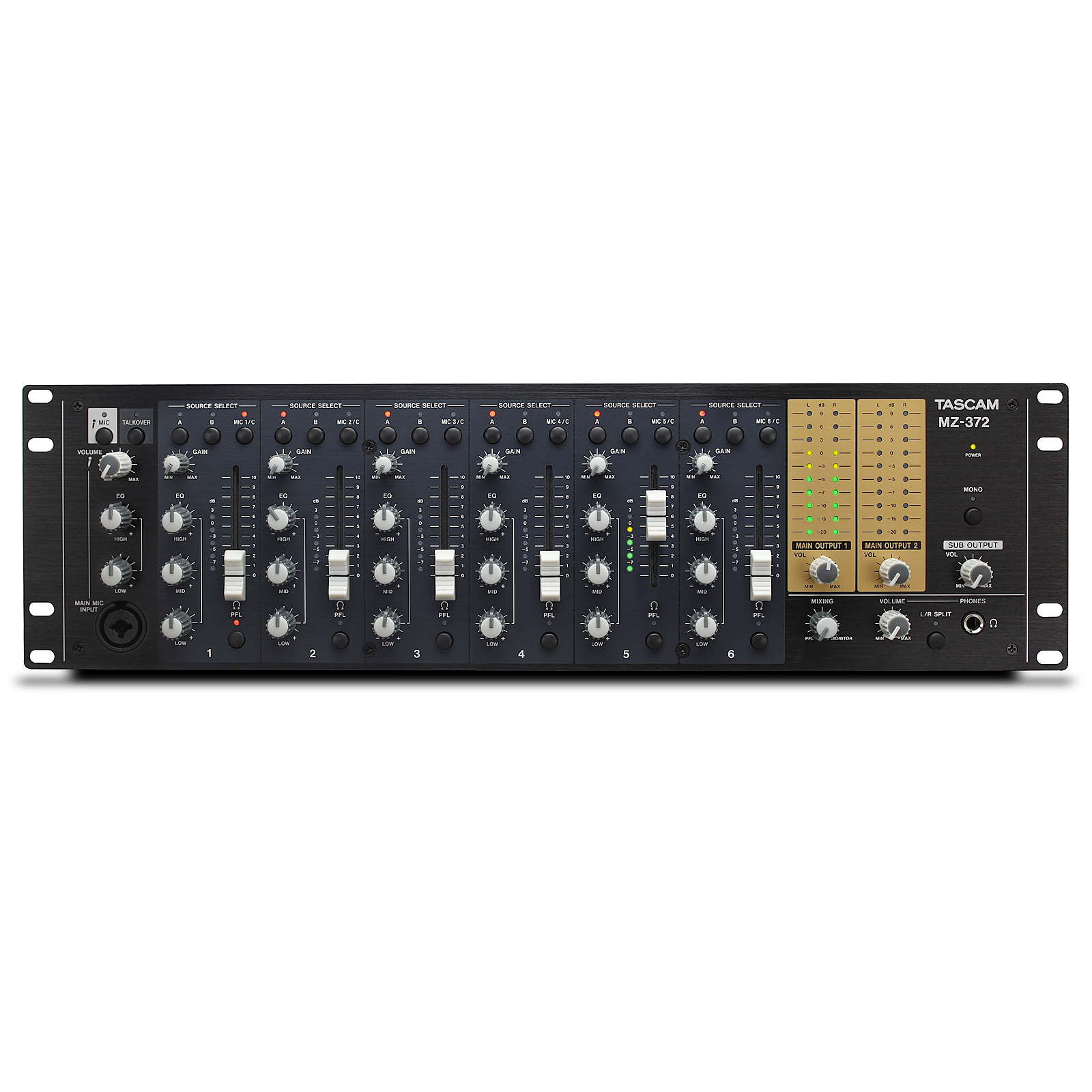

Six input channels can be used for microphones or line-level signals from analogue playback sources like media players, tuners or cassette decks, each equipped with gain controls, LED level meters, three-band equalizers and 100-mm faders. Up to three of these channels can be switched to phono to connect record players (turntables). An additional mic input with level control and two-band equalizer on the front side can be used for announcements or speech reinforcement. In this case, the built-in Talkover function can be used to automatically lower the volume of background music according to the mic volume.

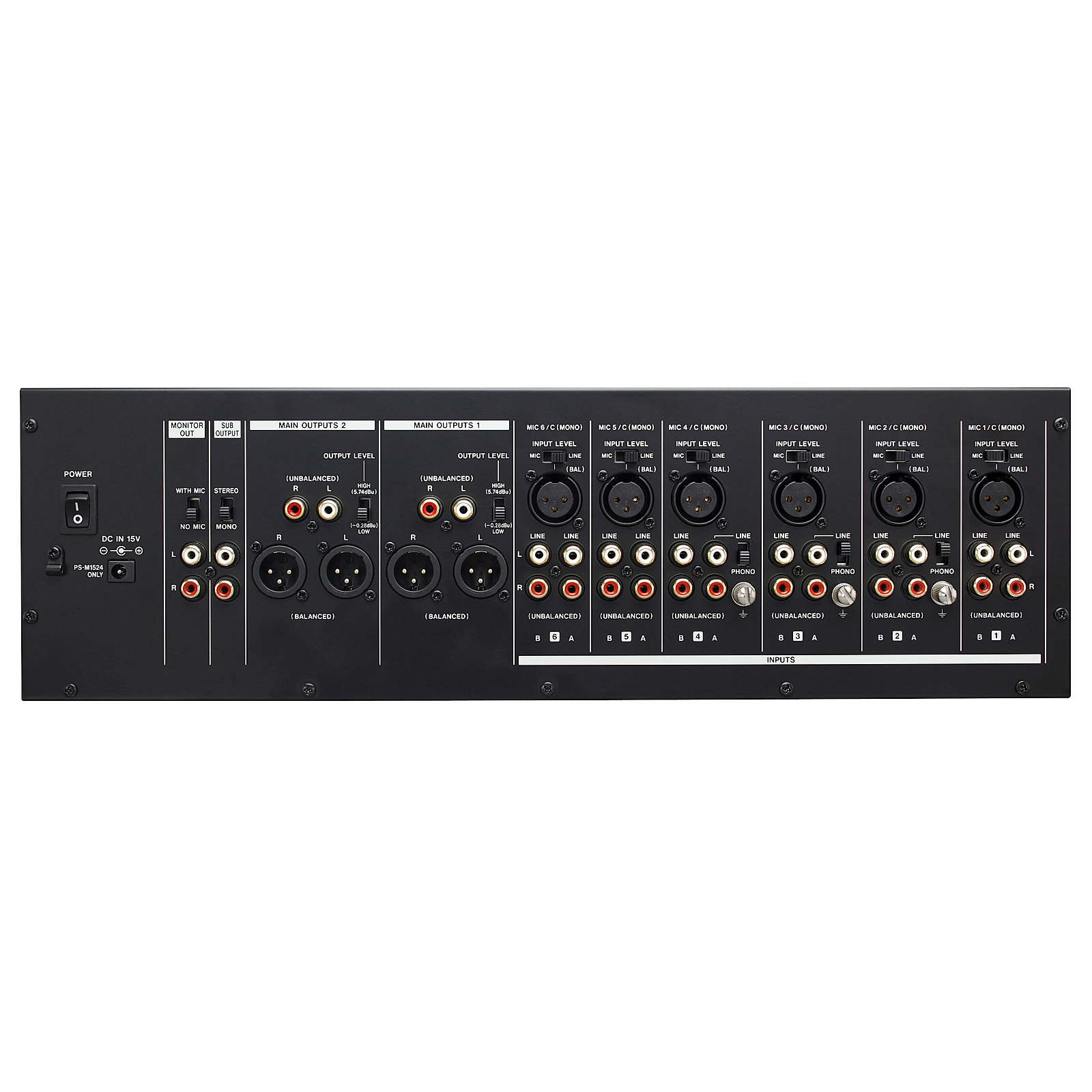

Each of the two main outputs has its own level control and stereo LED level meter. An independent sub output with level control and mono/stereo selection can be used to drive an external master recorder or an additional room. And there is a headphones output with level control for pre-fader monitoring of selected input channels and the main output signal.
Audio inputs
Main microphone input
Balanced: XLR-3-31 (1: GND, 2: HOT, 3: COLD)
Unbalanced: 6.3-mm TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND)
Input impedance
33 kO
Nominal input level
–65 dBu (VOLUME knob at MAX)
–30 dBu (VOLUME knob at MIN)
Mic/Line inputs (balanced)
XLR-3-31 (1: GND, 2: HOT, 3: COLD)
Set to Mic
Maximum input level
–30 dBu
Minimum input level
–65 dBu
Input impedance
33 kO
Set to Line
Nominal input level
–1 dBu
Maximum input level
20 dBu
Input impedance
22 kO
Line inputs (unbalanced)
RCA pin jacks
Nominal input level
–10 dBV
Maximum input level
10 dBV
Input impedance
22 kO
Audio outputs
Main outputs (unbalanced)
RCA pin jacks
Nominal output level
–10 dBV
Maximum output level
6 dBV
Output impedance
200 O
Main outputs (balanced)
XLR-3-32 (1: GND, 2: HOT, 3: COLD)
Nominal output level
4 dBu
Maximum output level
24 dBu
Output impedance
200 O
Sub outputs
RCA pin jacks
Nominal output level
–16 dBV
Maximum output level
0 dBV
Output impedance
200 O
Monitor outputs
RCA pin jacks
Nominal output level
–16 dBV
Maximum output level
0 dBV
Output impedance
200 O
Headphones output
6.3-mm stereo jack
Maximum output power
50 mW + 50 mW (into 32 O load)
Audio performance
Frequency response
20 Hz – 20 kHz
Distortion
=0.03%
Crosstalk
65 dB
Power supply and other specifications
Power supply
Dedicated AC adapter (PS-M1524)
Input voltage
AC 100–240 V, 50/60 Hz
Output voltage
DC 15 V
Output current
2.4 A
Power consumption
35 W
Overall dimensions (width × height × depth)
482 mm × 132 mm × 93 mm
Weight
3.2 kg
Permissible operating temperature
5–35 °C
