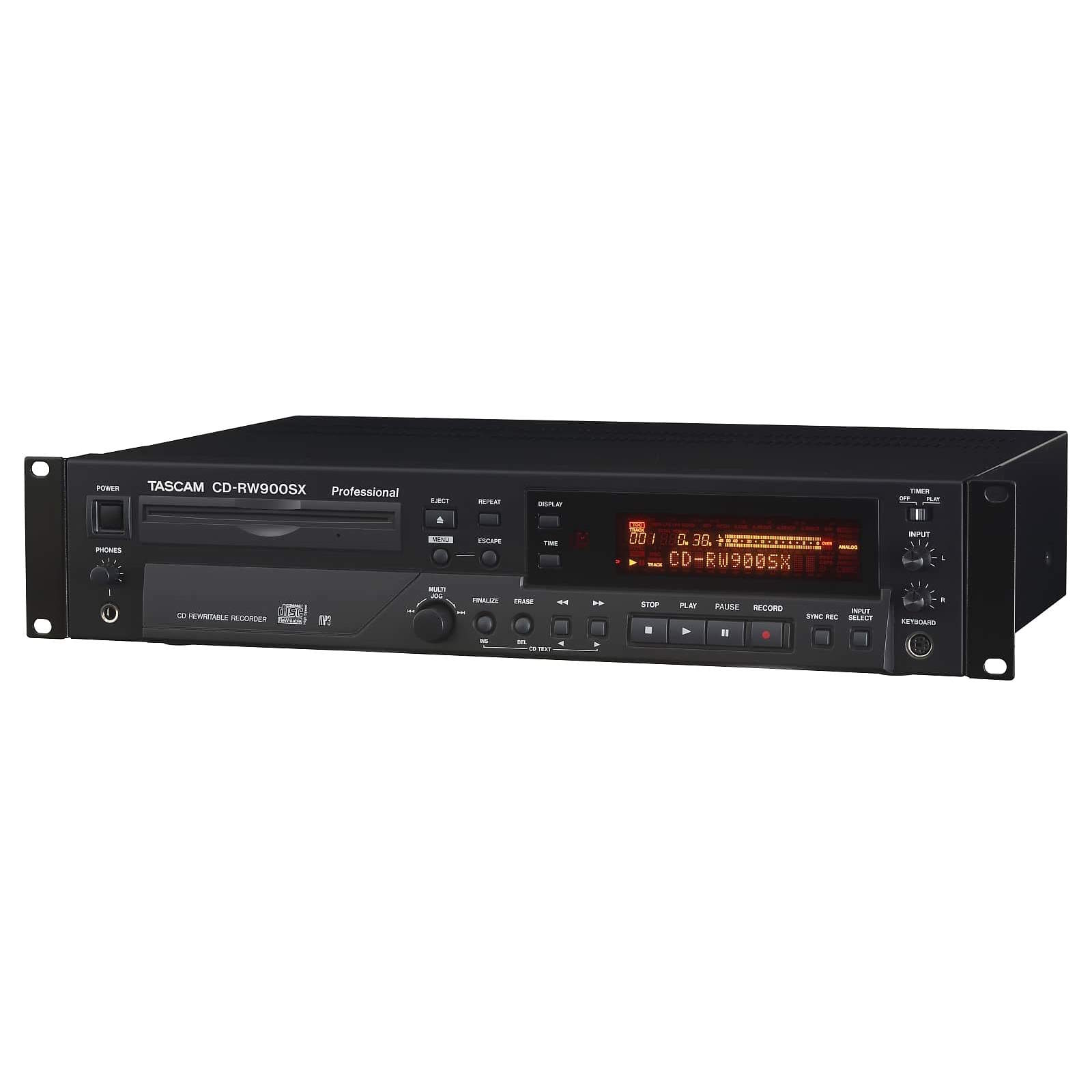

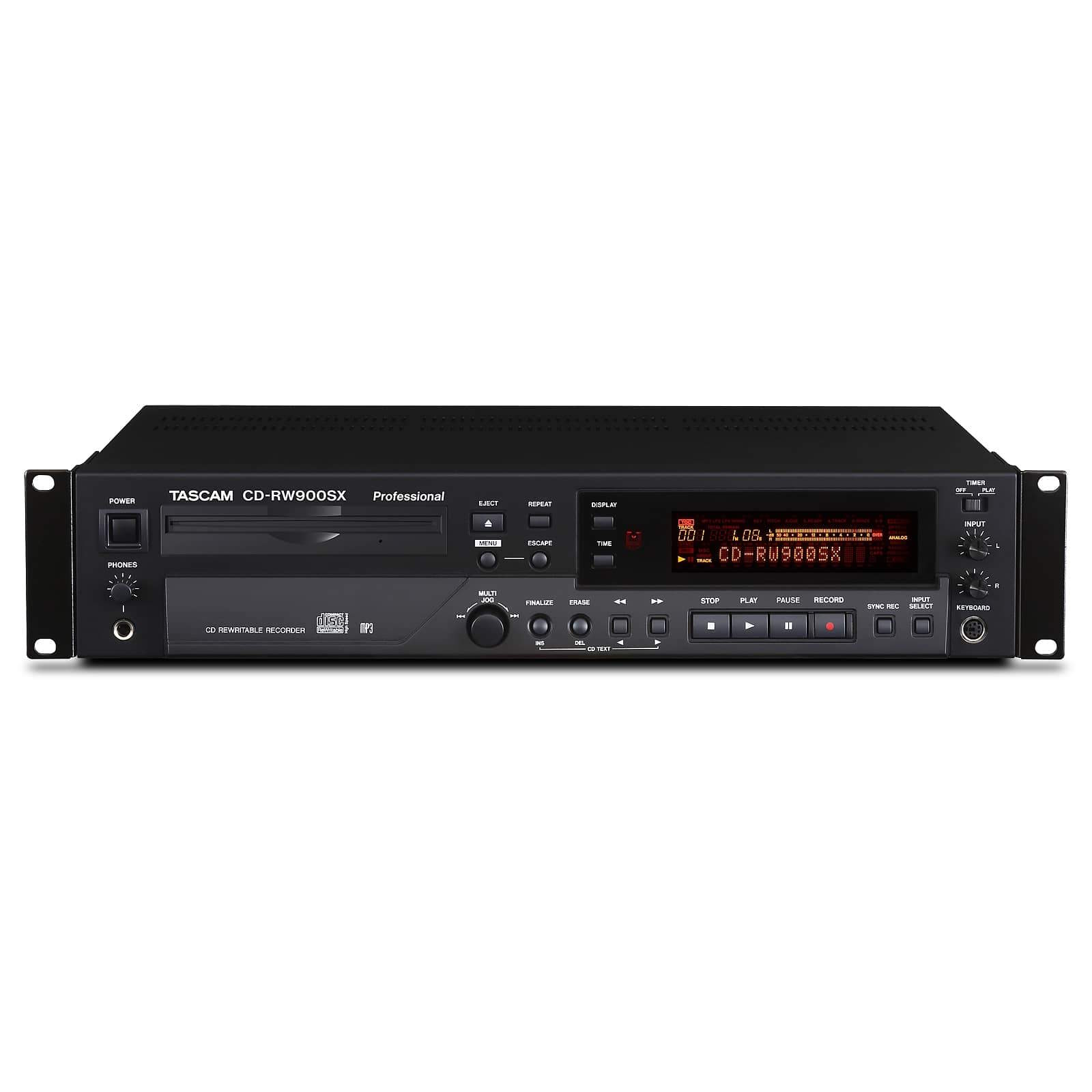

The CD-RW900SX is a professional CD recorder and player that replaces the CD-RW900MKII. A slot-loading optical drive ensures years of reliable operation in the most demanding installations. This CD drive allows gapless recording when setting track marks, something not possible using off-the-shelf PC optical drives. A high-performance codec chip is used for A/D and D/A conversion for clean, clear sound quality with a frequency response of 20 Hz to 20 kHz ±0.8 dB. Various recording features like automatic track creation help the operator create polished recordings without constant supervision.

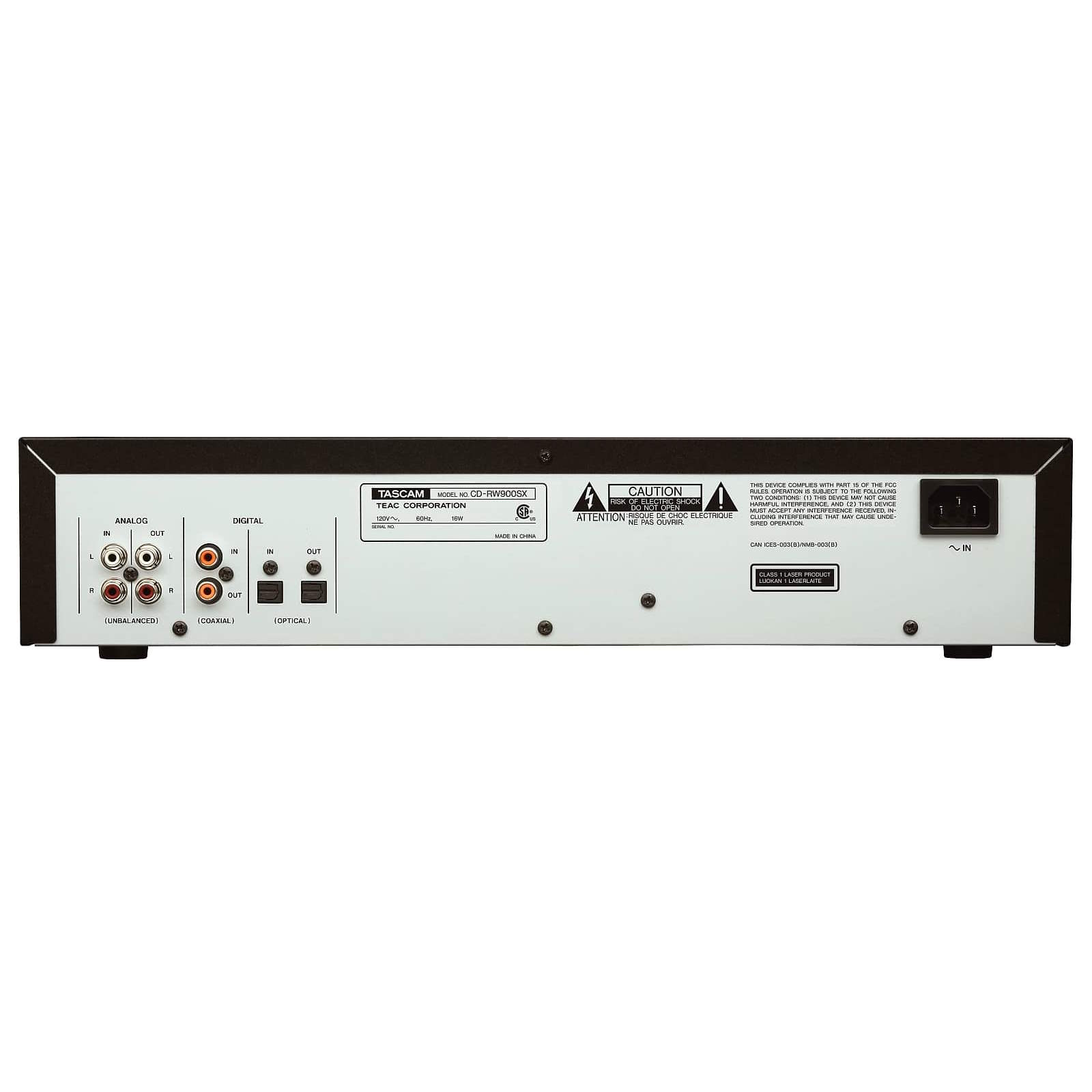

The CD-RW900SX has unbalanced analogue input/output jacks as well as optical and coaxial digital audio connectors. Both the left and right analogue inputs have their own gain controls on the front panel. In addition, the digital input can be controlled for optimal recording levels from a digital source. Functions including auto-cue, auto-ready, pitch control, power-on playback, and fade-in/fade-out playback are provided. It is also possible to control the transport via an optional computer keyboard.
Whether used for PA/rental or fixed installations, the CD-RW900SX is the right choice for reliable CD recording and playback.
General
Recordable media : CD-R, CD-RW, CD-R-DA, CD-RW-DA (High speed CD-RW is supported)
Playback disc formats : CD-DA, CD-ROM (ISO 9660 Level 1/2 Joliet format, multisession discs and CD text)
Playback file formats : CD-DA: 44.1 kHz, 16-bit stereo MP3: 44.1 kHz, 64–320 kbps, VBR
Recording file formats : CD-DA: 44.1 kHz, 16-bit stereo
Quantisation : 16-bit linear
Sampling frequency : 44.1 kHz
Frequency response :20 Hz to 20 kHz, ±0.8 dB (Playback), 20 Hz to 20 kHz, ±1.0 dB (Recording)
Signal-to-noise ratio : 95 dB (Playback), 90 dB (Recording)
Dynamic range :95 dB (Playback), 90 dB (Recording)
Total harmonic distortion : <0.006 % (Playback), <0.008 % (Recording)
Channel separation : >90 dB (Playback, at 1 kHz), >80 dB (Recording, at 1 kHz)
Wow and flutter : <0.001 % (unmeasurable)
Analogue inputs and outputs : Analogue input
Unbalanced RCA : Nominal input level -10 dBV (-16 dBFS)
Nominal impedance : 22k ? ±10 %
Analogue output : Unbalanced RCA
Nominal output level : -10 dBV (-16 dBFS)
Maximum output level : +6 dBV ±2 dB
Nominal impedance : 200 ? ±10 %
Headphones output : 6.3-mm stereo jack
Output power : 20 mW + 20 mW (into 32 ?)
Digital inputs and outputs
Digital inputs
Supported input sampling frequencies : 32–48 kHz
Coaxial :RCA, IEC60958 Type II (SPDIF)
Optical :TOS, IEC60958 Type II (SPDIF)
Digital outputs
Coaxial :RCA, IEC60958 Type II (SPDIF)
Optical :TOS, IEC60958 Type II (SPDIF)
Other connectors
Keyboard connector
Mini DIN, 6-pin (PS/2)
Power supply and other specifications
Voltage requirements : 230 V AC, 50 Hz
Power consumption : 18 W
Dimensions (W x H x D) : 483 mm x 94 mm x 309 mm
Weight :4.3 kg
