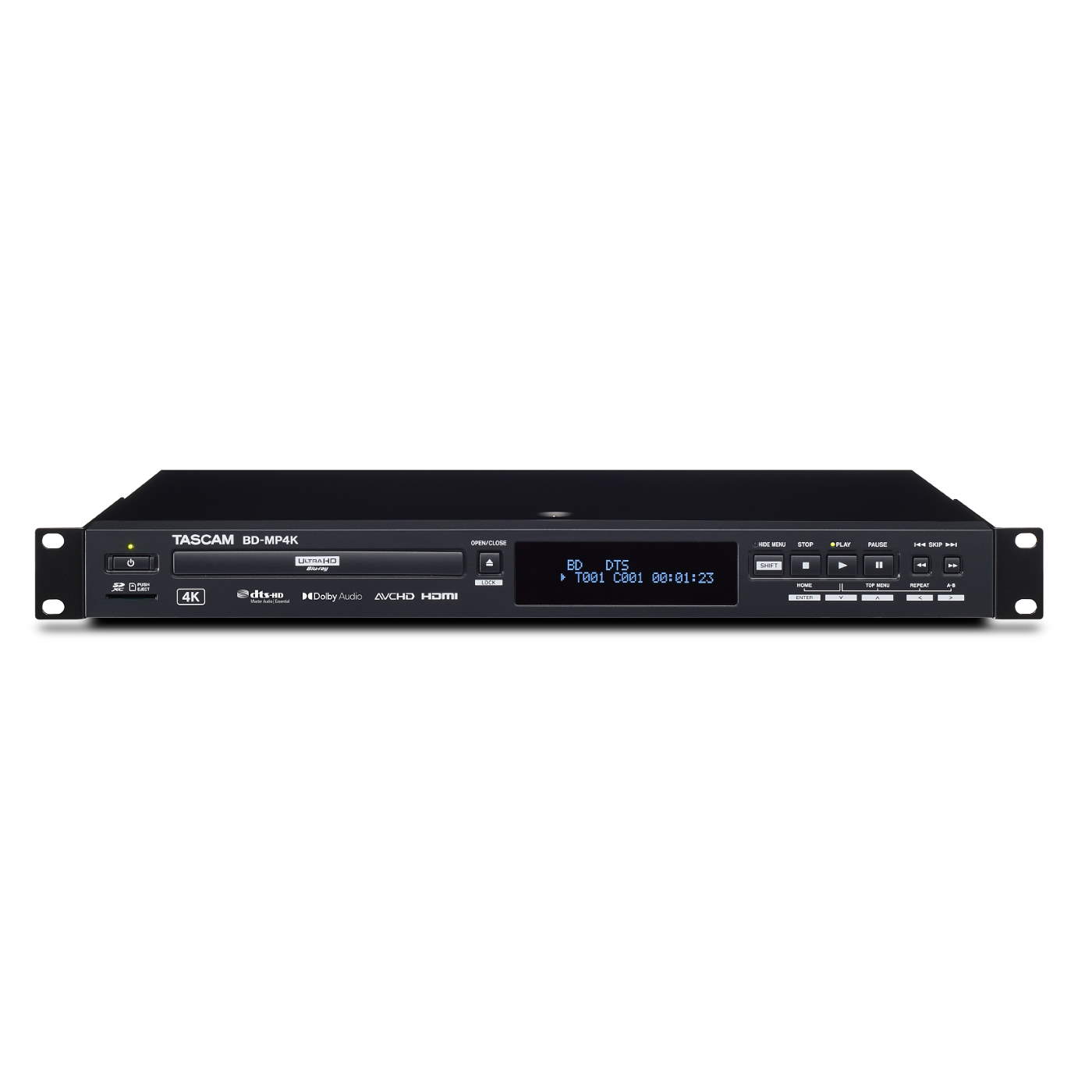

As a remote-controllable, professional-grade 4K UHD Blu-ray player, the Tascam BD-MP4K is the perfect choice for a wide range of applications requiring ultra-high definition image quality, including public, educational and commercial facilities, theaters, amusement and entertainment businesses, to name but a few.
Occupying only one height unit in the rack, the compact BD-MP4K saves space by eliminating the need for discrete audio/video playback devices in an installation rack. It accepts a broad range of media and file formats from discs (Blu-ray, DVD, CD), USB flash devices, SD cards or even Samba network shares on a NAS or remote server through Gigabit Ethernet.

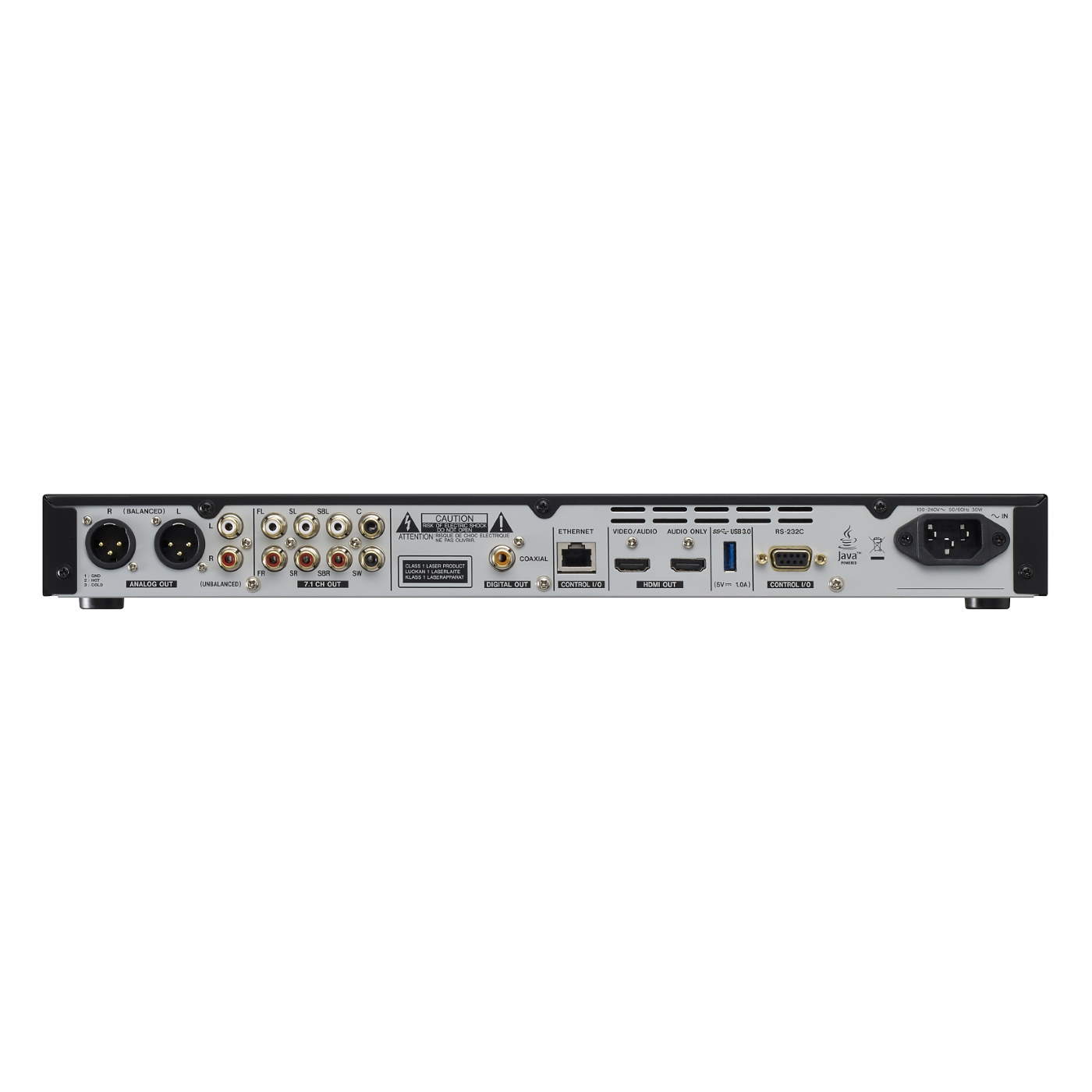

When it comes to professional audio quality and commercial integration, the BD-MP4K is pure Tascam. Individual connectors for 7.1 Surround Sound are provided on the rear panel for fully immersive, rich audio playback in any installation. Professional-grade XLR balanced stereo analogue outputs as well as RCA unbalanced stereo outputs are also available. And a coaxial output can deliver professional-grade digital audio formats including Dolby, DTS, and two-channel linear PCM (SPDIF).
With its high image resolution and superb audio quality, support for virtually all common media and file formats and comprehensive connection and configuration options, the BD-MP4K meets even the highest demands making it the ideal choice for professional use in permanent installation or touring.
Single-rackspace 4K/UHD Blu-ray, DVD, CD and solid-state player
Controllable via Ethernet network, RS-232C or wireless remote control
Plays video and audio material stored on following media:
4K/UHD BD, BD25, BD50, BD-ROM, BD-R, BD-RE
DVD-ROM, DVD+R, DVD-R, DVD+RW, DVD-RW
CD-DA, CD-R, CD-RW
SD cards (up to 512 GB)
USB flash media (up to 2 TB)
Supports exFAT file format and playback of various formats of video, image and audio from SD cards and USB flash memory
Can access a Samba share on the network to play files located on an external server
Comprehensive menu with many detailed setting options for image and sound
Power-on playback with the following disc media: 4K/UHD BD, BD, DVD, CD-DA
Seamless repeat by chapter, title or marked section (A–B)
Last memory function allows to resume playback of disc media
Several lock functions (panel lock, IR remote lock, tray lock)
On-screen menu can be hidden
Many outputs available (can all be used simultaneously)
HDMI 2.0 audio/video output, HDMI 1.4 audio output
Separate 7.1 surround sound outputs (RCA)

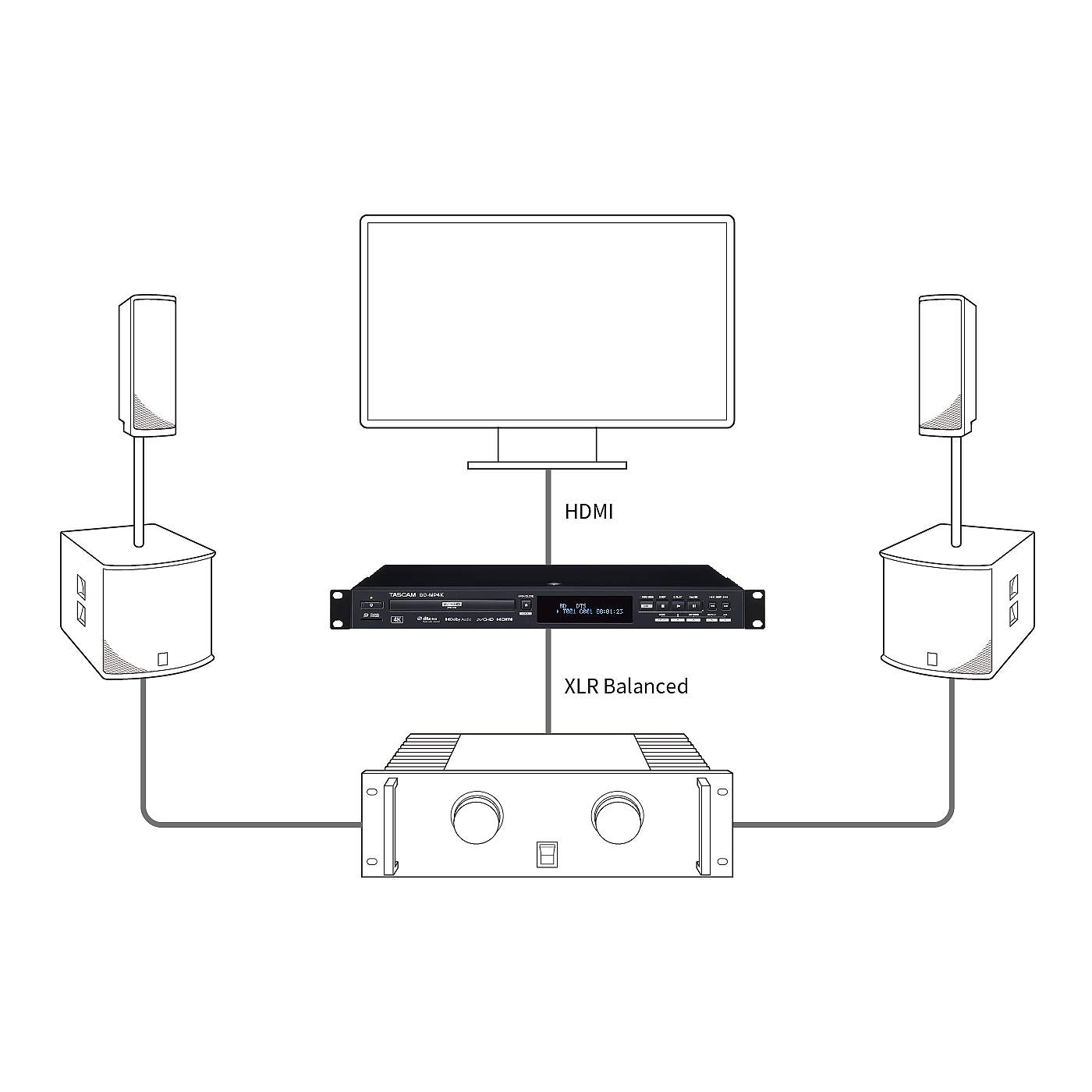

XLR balanced and RCA unbalanced stereo outputs
SPDIF/Dolby/DTS digital output (coaxial)
Up to 40 dB attenuation for audio outputs
USB 3.0 port for high-speed data transfer
Built-in power supply with IEC socket and removable mains cable
Rugged metal enclosure
1U rack-mount size

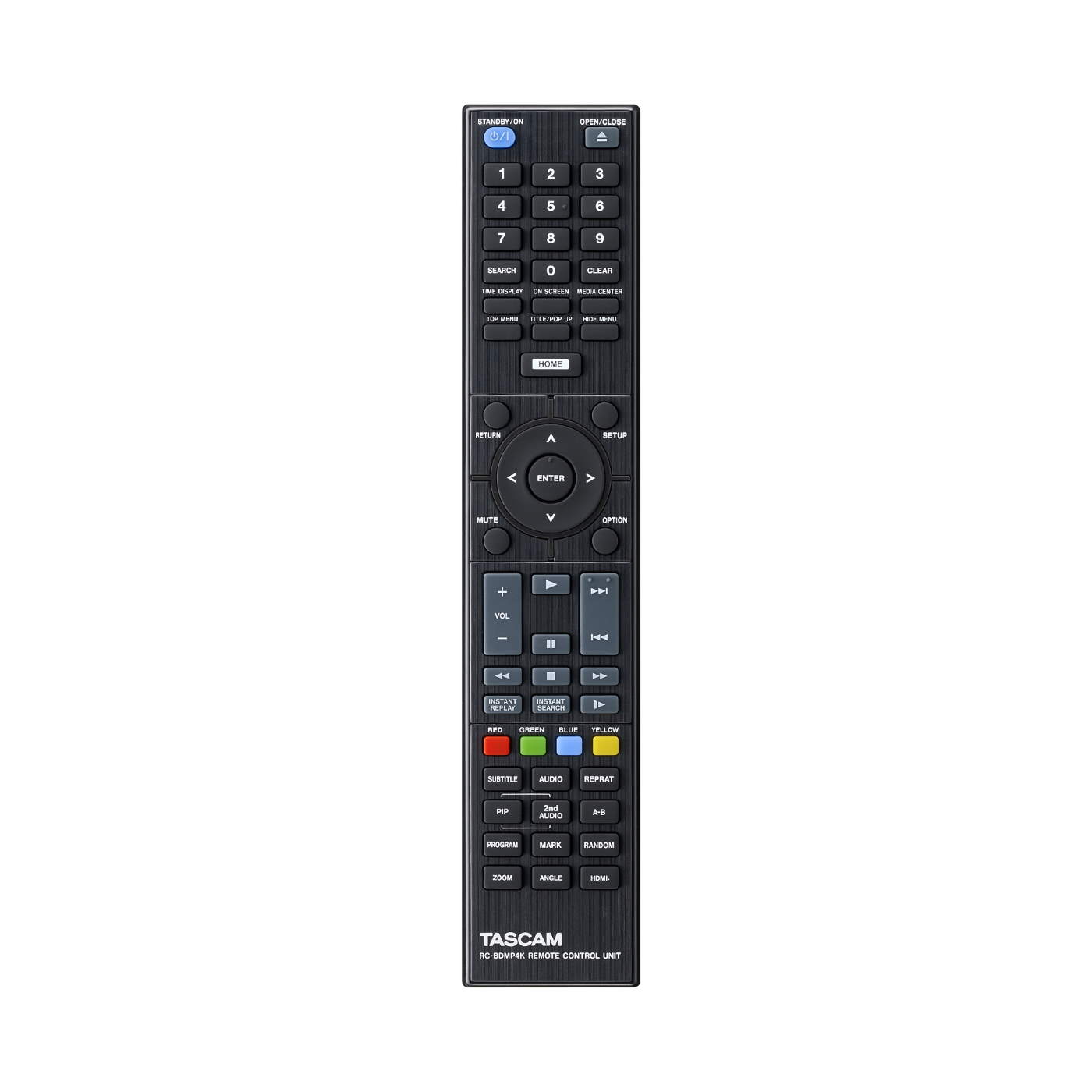

Included: Infrared remote control (RC-BDMP4K), mains cable, 3p-2p conversion adapter, rack-mounting kit, owner’s manual
