The Sennheiser EW500-G4-MKE2-GBW is a professional wireless lavalier system, including a Sennheiser SK500-G4 beltpack transmitter and MKE2-EW-GOLD lapel microphone.
The smooth extended frequency response of the MKE2 gives natural spoken-voice reproduction plus the clever design of this lapel microphone incorporates the use of a special umbrella diaphragm, to help protect the microphone capsule from sweat or moisture ingress.

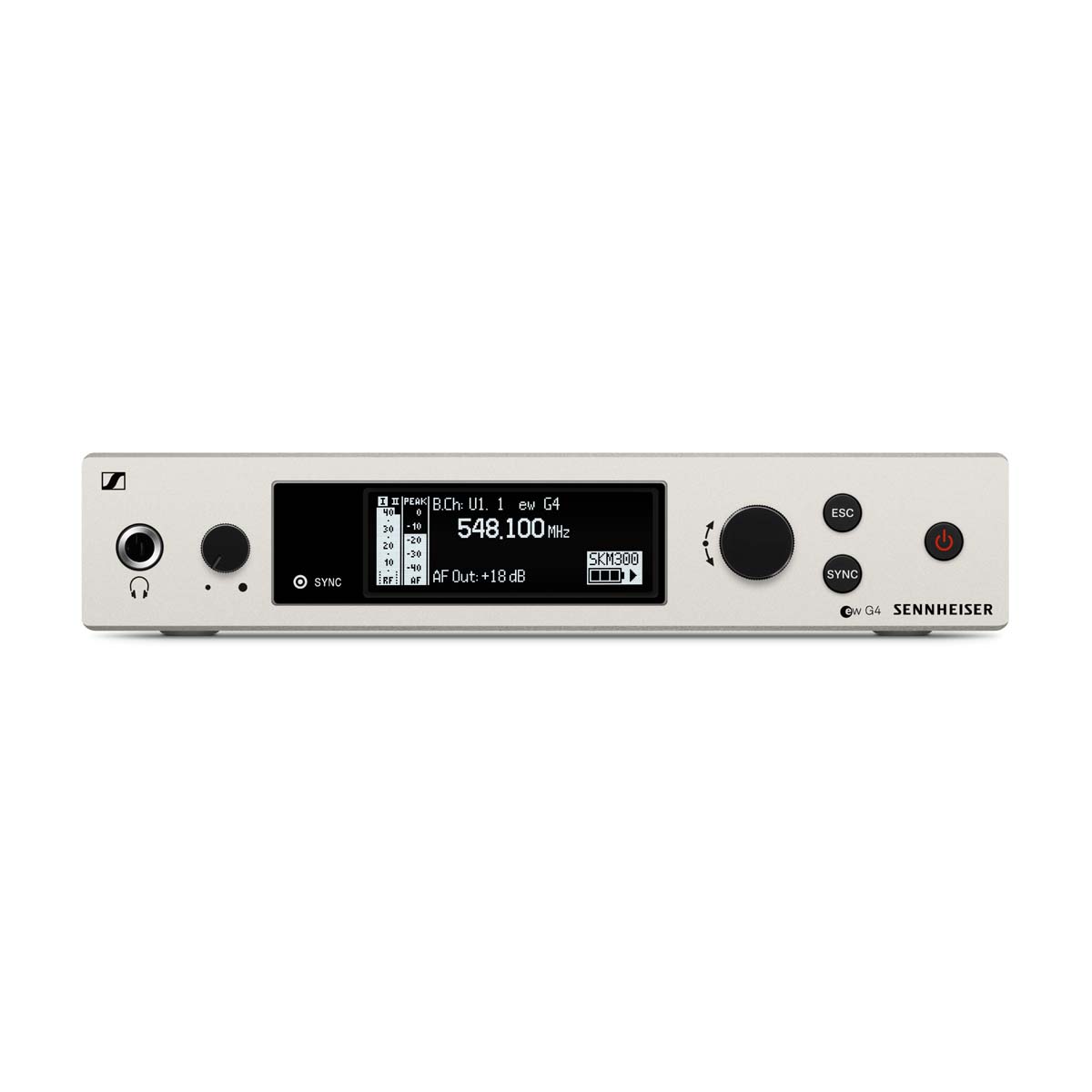

1 x EM300-500 G4 true-diversity rackmount receiver

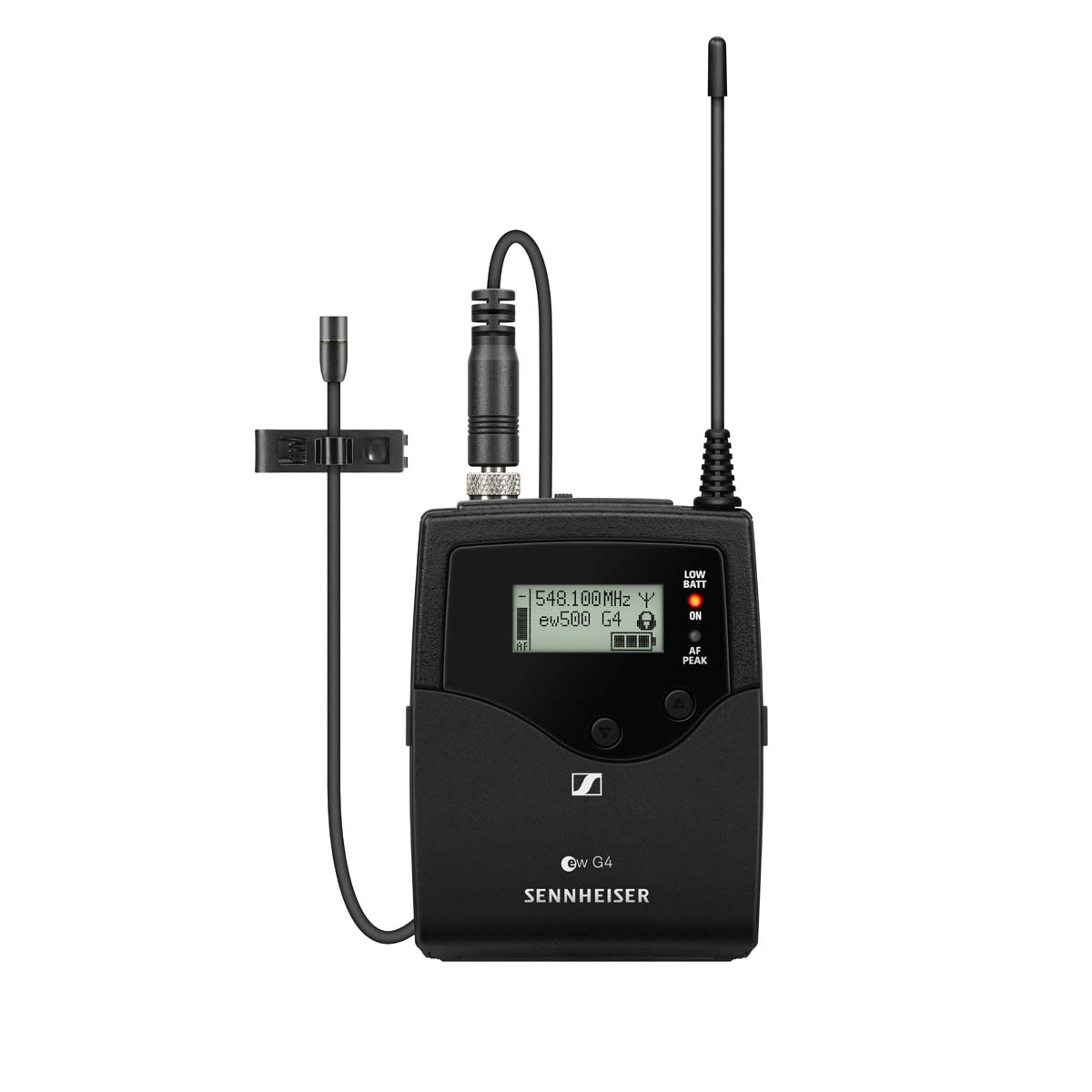

1 x SK500-G4 beltpack transmitter
1 x MKE2-EW-GOLD lapel microphone - black
2 x AA batteries
1 x NT2-3 12V power supply
1 x GA 3 rackmount kit
2 x Rod antennas with BNC connections
1 x User manual and frequency planner sheet
• True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full control
• Easy and flexible wireless synchronization between transmitter and receiver via infrared
• Up to 32 compatible channels
• Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range
• Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
• High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations
Range GBW ( 606-678 MHz )
Range GBW is suitable for use on bandwidth between 606-614MHz ( Channel 38 ) in the UK, which is covered by a standard UK radio mic licence. This is the best solution for most users and offers reliable results for portable use. Upto 12 x systems can be operated together and the licence allows use across the UK, indoors & outdoors.
Frequency range GBW covers a total of 72MHz of bandwidth, enabling configuration of large multi-channel setups when 48-hour portable licences or fixed site licences are used for more specialist applications.
Other frequency ranges are available, which are suitable for limited licence-exempt use and for fixed site users. Please call our Sales Team on 01707 332104 if you would like to discuss this further, we will be happy to offer specific advice.
