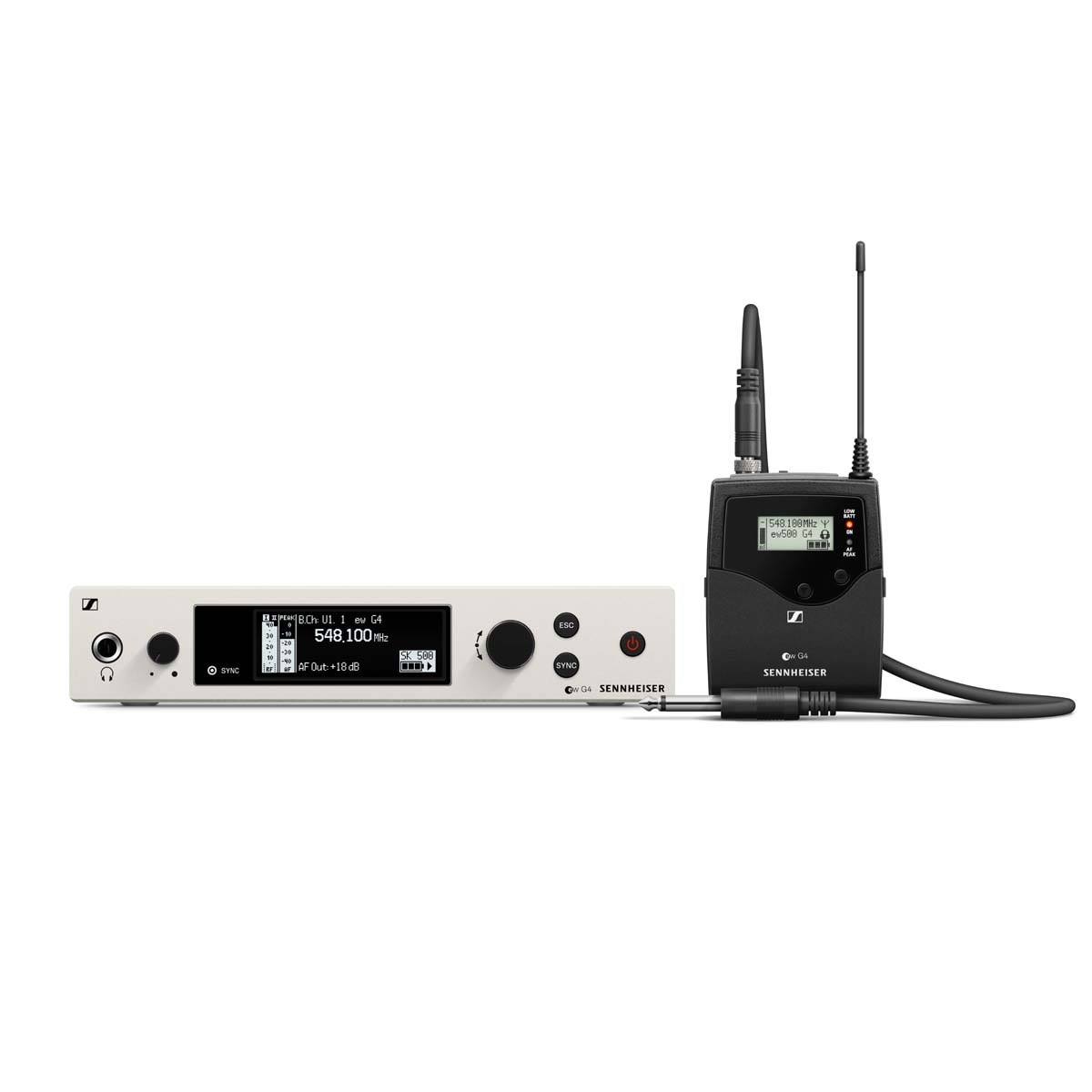

The Sennheiser EW500-G4-CI1-GBW is a professional wireless guitar system, including a Sennheiser SK500-G4 beltpack transmitter and CI1 instrument cable.
The CI1 cable is terminated in a standard 1/4 inch jack plug for use with electric guitars or acoustic instruments fitted with a 1/4 jack pickup. The extended frequency range of this G4 system ( 25Hz to 18 KHz ) means that it also works very well with bass guitar.
This system also provides a cost-effective way of buying the SK500-G4 beltpack and EM300-500 G4 receiver together for use with an optional EW microphone. Compatible microphones are shown in the drop-down box above.
1 x EM300-500 G4 true-diversity rackmount receiver
1 x SK500-G4 beltpack transmitter
1 x CI1 instrument cable with 1/4 inch jack plug
2 x AA batteries
1 x NT2-3 12V power supply
1 x GA 3 rackmount kit
2 x Rod antennas with BNC connections
1 x User manual and frequency planner sheet
• True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full control
• Easy and flexible wireless synchronization between transmitter and receiver via infrared
• Up to 32 compatible channels
• Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range
• Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
• High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations
Range GBW ( 606-678 MHz )
Range GBW is suitable for use on bandwidth between 606-614MHz ( Channel 38 ) in the UK, which is covered by a standard UK radio mic licence. This is the best solution for most users and offers reliable results for portable use. Upto 12 x systems can be operated together and the licence allows use across the UK, indoors & outdoors.
Frequency range GBW covers a total of 72MHz of bandwidth, enabling configuration of large multi-channel setups when 48-hour portable licences or fixed site licences are used for more specialist applications.
Other frequency ranges are available, which are suitable for limited licence-exempt use and for fixed site users. Please call our Sales Team on 01707 332104 if you would like to discuss this further, we will be happy to offer specific advice.
