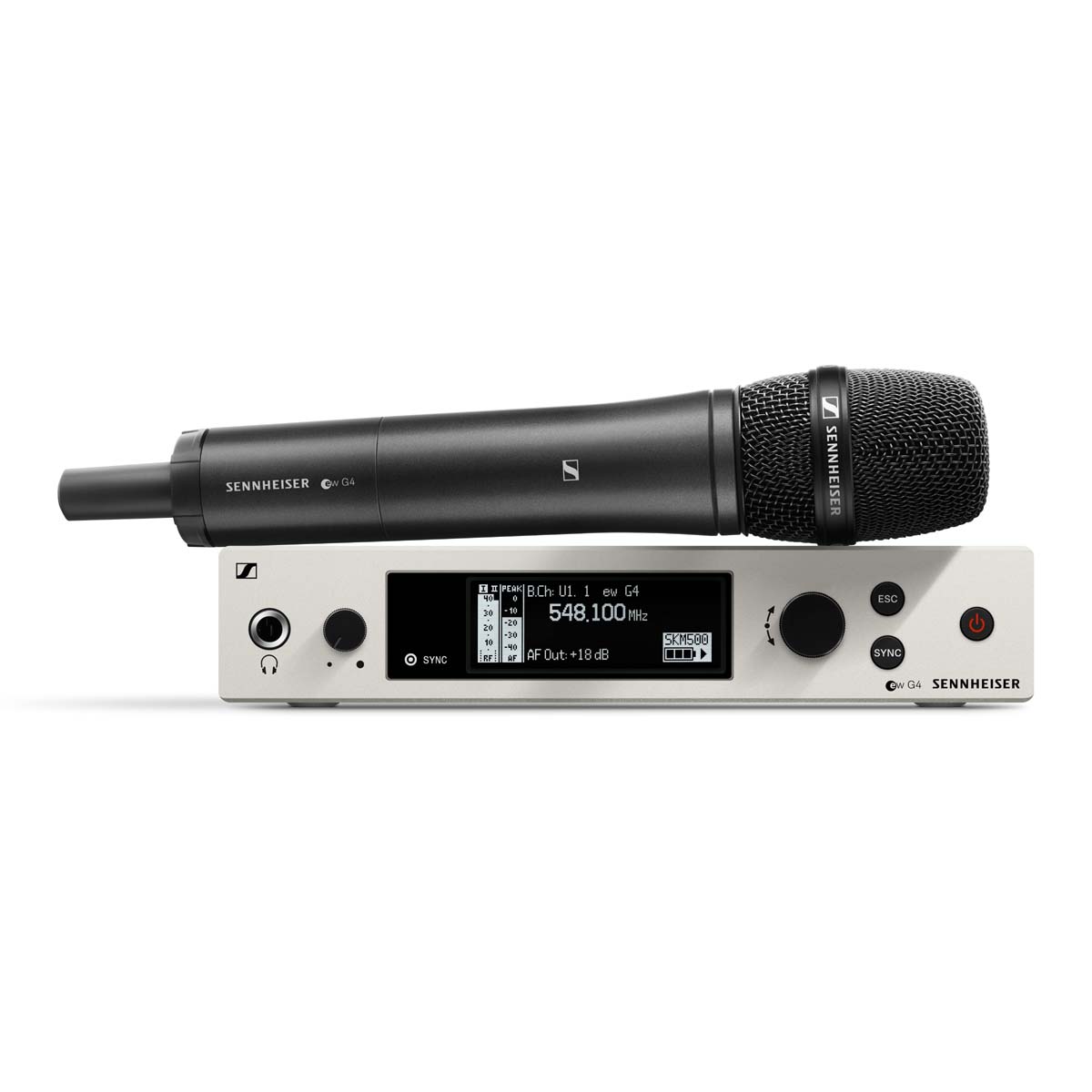

The Sennheiser EW500-G4-945-GBW is a handheld radio microphone system. This G4 500 Series system includes a lightweight aluminium handheld transmitter fitted with Sennheiser's renowned E945 microphone head. The E945 is a dynamic microphone with cardioid pickup pattern, designed for use on the loudest stages and offering excellent feedback rejection.
This system (Range GBw) offers 72MHz of tuning bandwidth. The Ethernet connector on the rear panel of the receiver enables use of Sennheiser's WSM control software to monitor and setup multi-channel systems using a PC or Mac.
G4 500 Series handheld transmitters are designed for professional live sound applications, so no mute switch is provided on the microphone. This ensures the Sound Engineer mixing the show retains full control of the sound and helps to avoid any confusion. Users requiring a wireless microphone with a mute switch for their application will find suitable models in the 300 or 100 G4 Series.
1 x EM300-500 G4 true-diversity rackmount receiver
1 x SKM500-G4 handheld transmitter - black finish
1 x MMD945-1 microphone head - black finish
1 x MZQ 1 mic clamp
2 x AA batteries
1 x NT2-3 12V power supply
1 x GA 3 rackmount kit
2 x Rod antennas with BNC connections
1 x User manual and frequency planner sheet
FEATURES
• True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full control
• Easy and flexible wireless synchronization between transmitter and receiver via infrared
• Up to 32 compatible channels
• Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range
• Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
• High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations
Range GBW ( 606-678 MHz )
Range GBW is suitable for use on bandwidth between 606-614MHz ( Channel 38 ) in the UK, which is covered by a standard UK radio mic licence. This is the best solution for most users and offers reliable results for portable use. Upto 12 x systems can be operated together and the licence allows use across the UK, indoors & outdoors.
Frequency range GBW covers a total of 72MHz of bandwidth, enabling configuration of large multi-channel setups when 48-hour portable licences or fixed site licences are used for more specialist applications.
Other frequency ranges are available, which are suitable for limited licence-exempt use and for fixed site users. Please call our Sales Team on 01707 332104 if you would like to discuss this further, we will be happy to offer specific advice.
