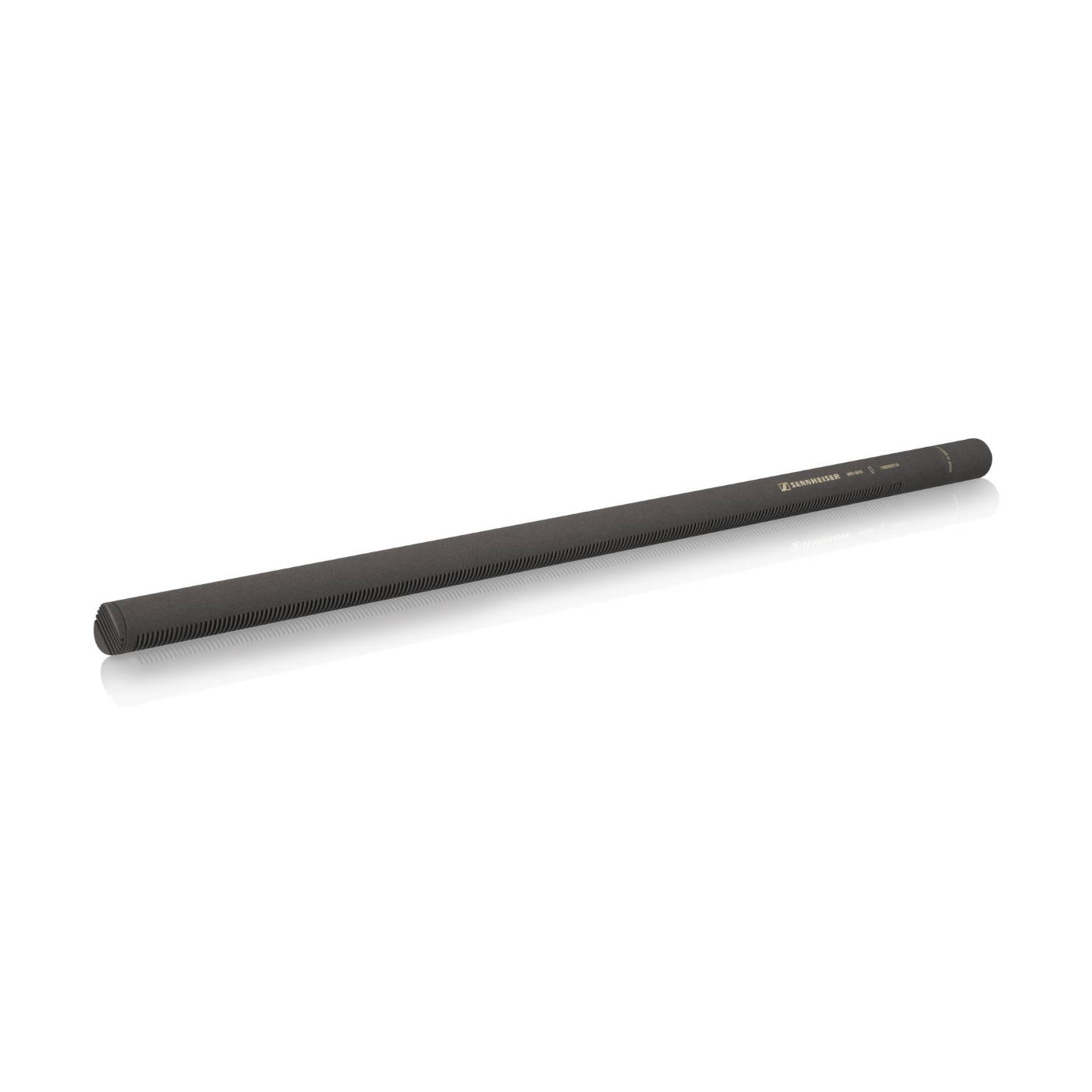

The long shotgun microphone MKH 8070 was especially designed for picking up distant sources of sound in best quality. Its very natural sound makes it the ideal choice for major broadcast and sporting events. Featuring extreme directivity and a pronounced lobar pick-up pattern it will reliably capture that magic moment from a distance, even under the toughest sonic and climatic conditions. The MKH 8070's special design ensures attenuation of off-axis sound without coloration. Like all mics of the 8000-family it can be easily combined with the MZD 8000 digital module, turning it into a full-fledged digital microphone.
Included items :
Shotgun microphone MKH 8070
Microphone clip
Foamwindshield
Threaded transport tube
User manual
Features :
Lobar pick-up pattern
Enhanced directivity
Very natural sound
Uncolored off-axis sound
Exceptionally low inherent self-noise
Extremely low distortion
Transformerless and fully floating balanced output
High output signal
Rugged metal housing
Non-reflective Nextel® coating
Extremely weather-proof due to RF circuit• Nextel®- • Becomes a digital mic when combined with the MZD 8000 digital module
Timbrally identical with the other 8000-series microphones for optimum aural compatibility
Dimensions : diameter 19 mm, lenght 465 mm (432 mm excluding XLR module)
Transducer principle (Microphone) : RF condenser microphone
Frequency response : 45 - 20000 Hz
Weight : 332 g (300 g excluding XLR module)
Audio output : XLR-3M balanced, transformerless, floating
Pick-up pattern : lobar
Sensitivity in free field, no load (1kHz) : 112 mV/Pa (-19 dBV/Pa)
Nominal impedance : 25 Ohms
Min. terminating impedance : 2000 Ohms
Phantom powering : 48 V +/- 4 V
Equivalent noise level : 8 dB
Equivalent noise level weighted as per CCIR 468-3 : 21 dB
Maximum sound pressure level (passive) : 124 dB SPL
Current consumption : 3,3 mA
