Whether it's a feature film, a documentary, an outdoor shoot or a studio production, the MKH 8060 will provide high quality sound to match your great pictures. Handily compact it shows its strengths as a professional shotgun microphone: The MKH 8060 delivers an absolute natural sound and outstanding off-axis linearity, attenuating sound coming from the side without coloration. Like all mics of the 8000-family it can be easily combined with the MZD 8000 digital module, turning it into a full-fledged digital microphone.
Included items :

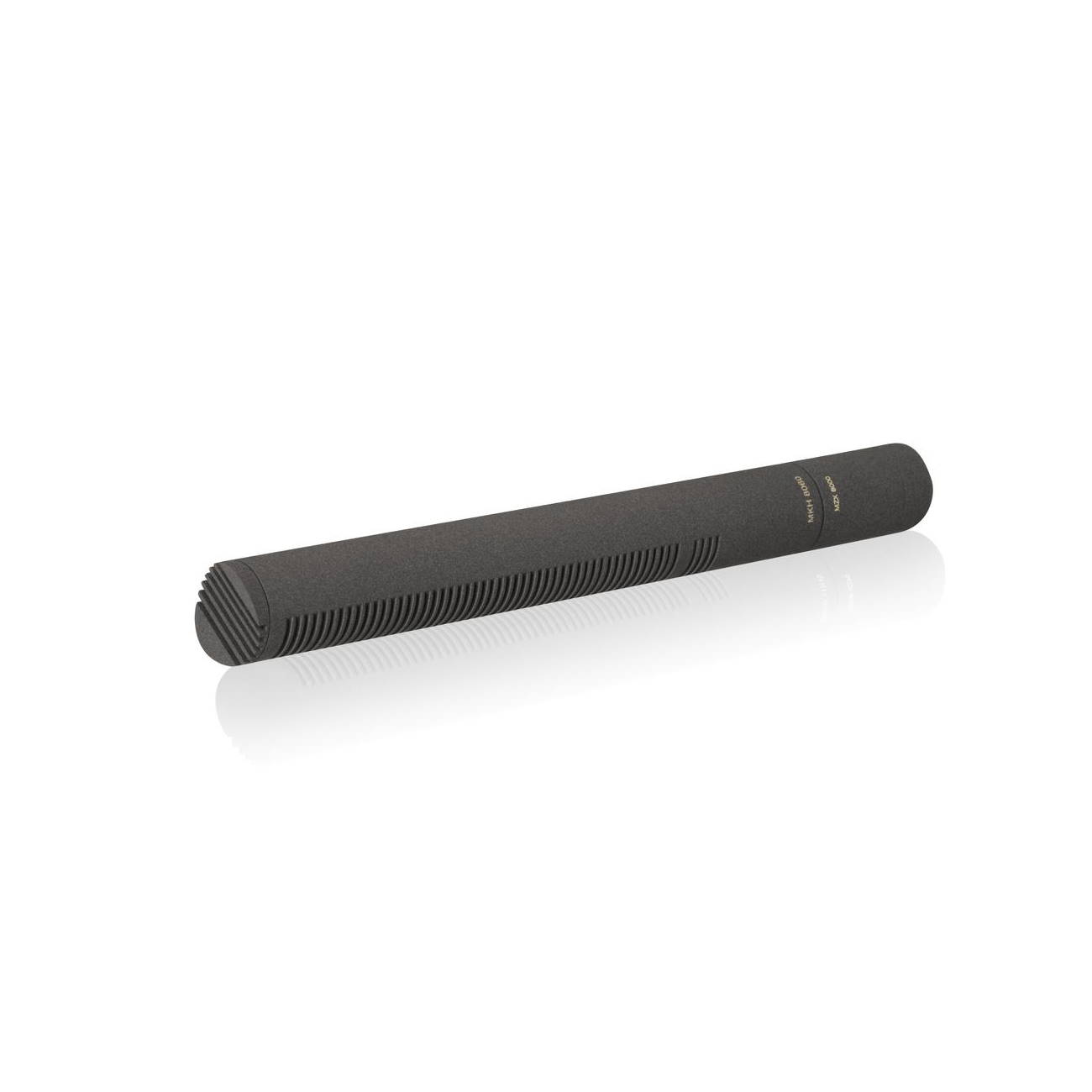

Shotgun microphone MKH 8060
Microphone clip
Foamwindshield
Threaded transport tube
User manual
Features :
Super-cardioid/lobar pick-up pattern
Very natural sound
Undistorted off-axis sound
Exceptionally low inherent self-noise
Extremely low distortion
Transformerless and fully floating balanced output
High output signal
Rugged metal housing
Non-reflective Nextel® coating
Extremely weather-proof due to RF circuit
Ideal for camera mounting due to compact design
Becomes a digital mic when combined with the MZD 8000 digital module
Timbrally identical with the other 8000-series microphones for optimum aural compatibility
Dimensions : diameter 19 mm, length 175 mm (145 mm excluding XLR module)
Transducer principle (Microphone) : RF condenser microphone
Frequency response : 50 - 25000 Hz
Weight : 112 g (80 g excluding XLR module)
Audio output : XLR-3M balanced, transformerless, floating
Pick-up pattern : super-cardioid/lobar
Sensitivity in free field, no load (1kHz) : -24 dBV/Pa (63mV/Pa)
Nominal impedance : 25 Ohm
Min. terminating impedance : 2000 Ohm
Phantom powering : 48 V +/- 4 V
Equivalent noise level : 11 dB
Equivalent noise level weighted as per CCIR 468-3 : 23 dB
Maximum sound pressure level (passive) : 129 dB SPL
Current consumption : 3,3 mA
