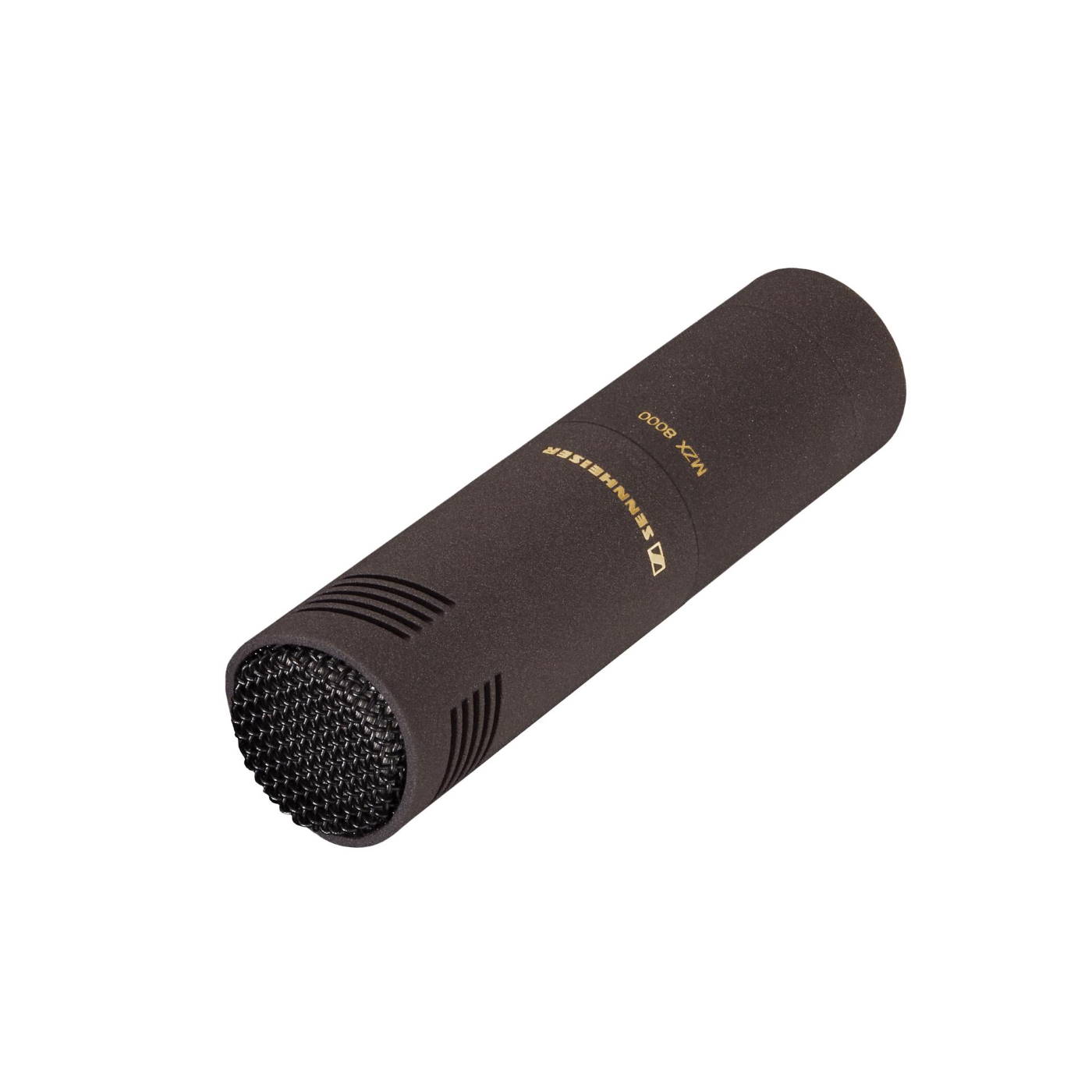

Thanks to its super-cardioid pick-up pattern the MKH 8050 offers an even higher attenuation of off-axis sound, than its sister model MKH 8040. Thus, it is a perfect choice for recording soloists, and when absolute acoustical separation is demanded. Its balanced frequency response throughout the whole pick-up pattern ensured that large instruments like the grand piano but also orchestras sound musically flawless and free of distortion. The Nextel® coating of the MKH 8050 prevents reflections, giving you the freedom to position the microphone according to acoustic criteria alone.
Included items :
Shotgun microphone MKH 8050
Microphone head MKHC 8050
XLR module MZX 8000
Microphone clip MZQ 8000
Windshield MZW 8000
User manual
Transport case
Features :
Super-cardioid pick-up pattern
Modular Design
Wide frequency response: 30 – 50,000 Hz
Extremely low distortion
Extremely low inherent self-noise
Balanced frequency response within the pick-up pattern
Very even directional diagram
Non-reflective Nextel® coating
Optimum separation of instruments
Timbrally identical with the other 8000-series microphones for optimum aural compatibility
Dimensions : Ø 19 mm, L 41 mm (74 mm with XLR module)
Transducer principle (Microphone) :RF condenser microphone
Frequency response : 30 - 50000 Hz
Weight : 25 g (55 g with XLR module)
Audio output : XLR-3M balanced, transformerless, floating
Pick-up pattern : super-cardioid
Sensitivity in free field, no load (1kHz) :20 mV/Pa (-34 dBV/Pa)
Nominal impedance : 25 Ohms
Min. terminating impedance : 1000 Ohms
Phantom powering : 48 V +/- 4 V
Equivalent noise level : 13 dB(A)
Equivalent noise level weighted as per CCIR 468-3 : 22 dB
Maximum sound pressure level (passive) : 142 dB SPL
Current consumption : 3,3 mA
