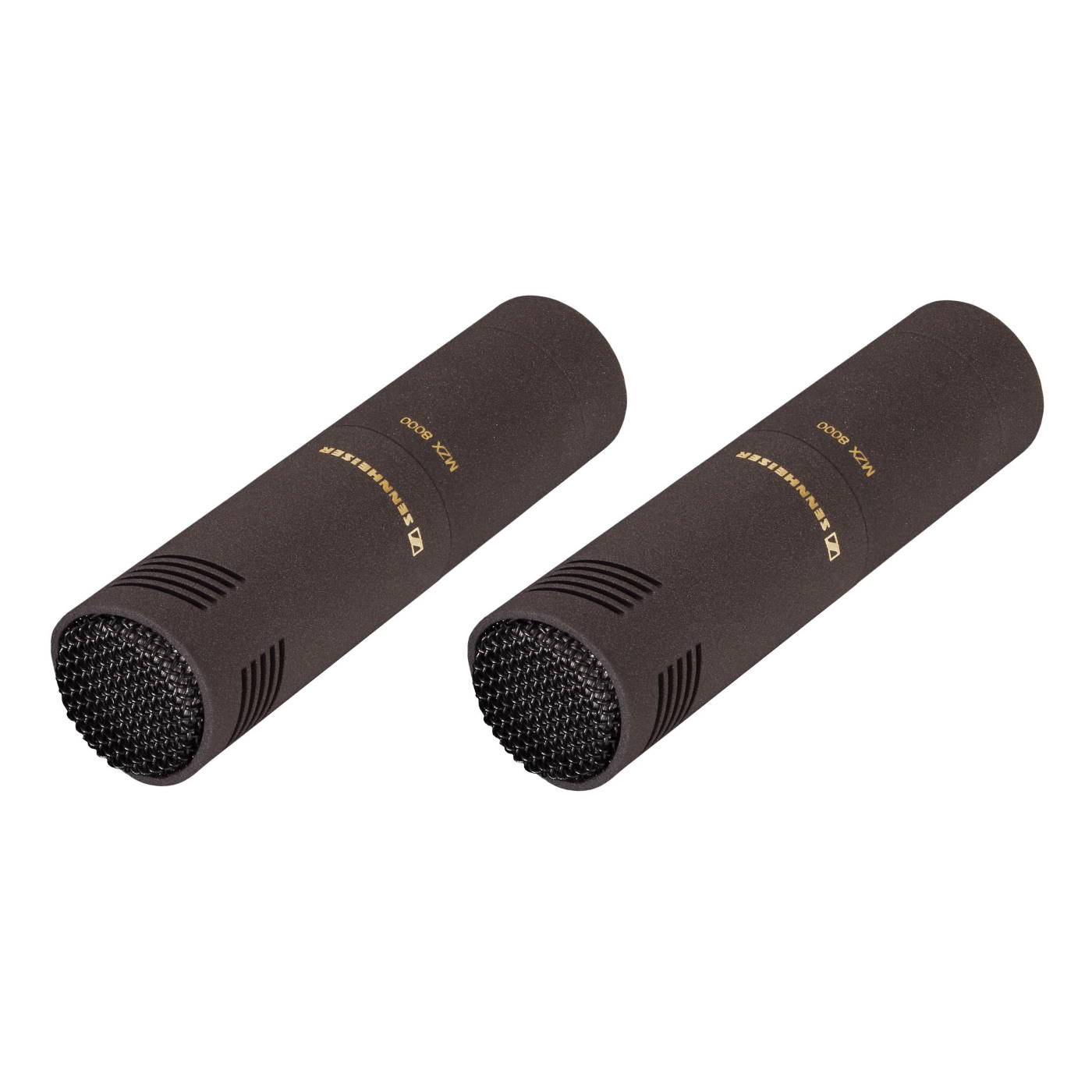

The Sennheiser MKH8040 STEREOSET includes 2 x MKH8040 microphones in a single transit case, for use as a stereo pair.
Due to its cardioid pick-up pattern the MKH 8040 is perfectly suitable for a wide range of applications. It features a balanced frequency response throughout the whole pick-up pattern, as well as a significantly reduced pick-up of rear sound without depriving it of its natural timbre: Very valuable talents when used in rooms with poor acoustics or when disturbing sounds impinge mainly from the rear.
Included items :
2 x Microphone heads MKHC 8040
2 x XLR modules MZX 8000
2 x Microphone clips MZQ 8000
2 x Windshields MZW 8000
1 x User manual
1 x Aluminium transport case
Features :
Cardioid pick-up pattern
Modular Design
Wide frequency response: 30 – 50,000 Hz
Extremely low distortion
Extremely low inherent self-noise
Balanced frequency response within the pick-up pattern
Very even directional diagram
Non-reflective Nextel® coating
Ideal as a spot microphone and for surround recordings
Timbrally identical with the other 8000-series microphones for optimum aural compatibility
Dimensions : Ø 19 mm, L 41 mm (74 mm with XLR module)
Transducer principle (Microphone) : RF condenser microphone
Frequency response : 30 - 50000 Hz
Weight : 25 g (55 g with XLR module)
Audio output : XLR-3M balanced, transformerless, floating
Pick-up pattern : cardioid
Sensitivity in free field, no load (1kHz) : 20 mV/Pa (-34 dBV/Pa)
Nominal impedance : 25 Ohms
Min. terminating impedance : 1000 Ohms
Phantom powering : 48 V +/- 4 V
Equivalent noise level :13 dB
Equivalent noise level weighted as per CCIR 468-3 : 22 dB
Maximum sound pressure level (passive) : 142 dB SPL
Current consumption : 3,3 mA
