** ONLY 1 x UNIT LEFT AT THIS SPECIAL CLEARANCE PRICE - NEW STOCK WITH FULL 2 YEAR WARRANTY **

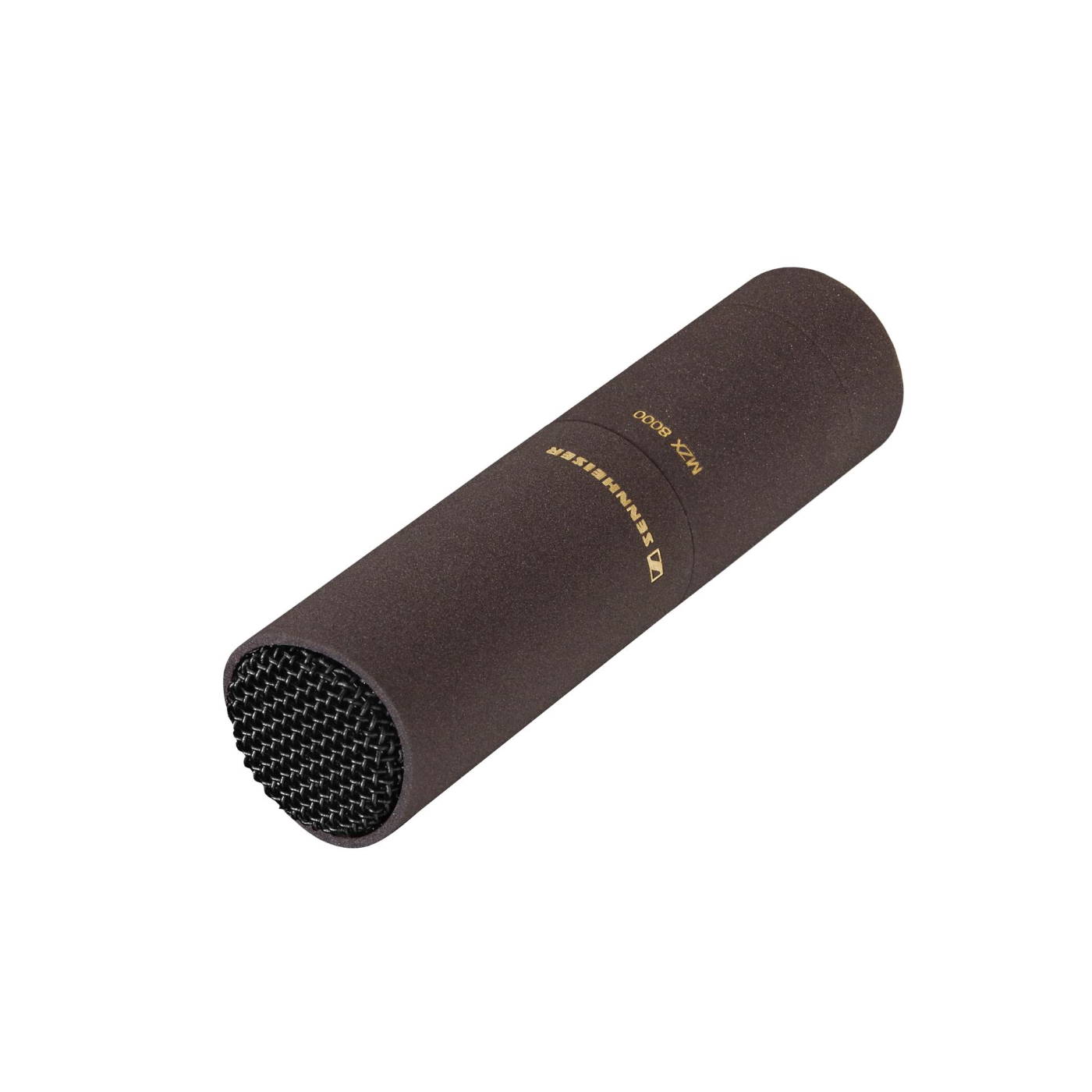

Its omni-directional pick-up pattern makes the MKH 8020 the ideal main mic for “spaced pair” and “Decca Tree” recordings or the use in an OSS “Jecklin Disk“ array. Especially in acoustically favorable ambiences this excellent microphone unfolds its outstanding quality. With a wide frequency response, which reaches deep down to 10 Hz the MKH 8020 is a perfect choice for capturing instruments like organ, grand piano or double bass in all their natural beauty. Furthermore, its capsule design is optimized for an extraordinarily even directional diagram.
Included items :
Microphone head MKHC 8020
XLR module MZX 8000
Microphone clip MZQ 8000
Windshield MZW 8000
User manual
Transport case
Features :
Omni-directional pick-up pattern
Modular design
Wide frequency response: 10 – 60,000 Hz
Extremely low distortion
Extremely low inherent self-noise
Very even directional diagram
Non-reflective Nextel® coating
Ideal for stereo and surround recordings, as an M microphone, and for ambience
Timbrally identical with the other 8000-series microphones for optimum aural compatibility
Dimensions : 19 mm diameter, lenght 74 mm (41 mm excluding XLR module)
Transducer principle (Microphone) : RF condenser microphone
Frequency response : 10 - 60.000 Hz
Weight : 55g (25 g excluding XLR module)
Audio output : XLR-3M balanced, transformerless, floating
Pick-up pattern : omni-directional
Sensitivity in free field, no load (1kHz) : 31 mV/Pa (- 30 dBV/Pa)
Nominal impedance : 25 Ohms
Min. terminating impedance : 1000 Ohms
Phantom powering : 48 V +/- 4V
Equivalent noise level : 10 dB(A)
Equivalent noise level weighted as per CCIR 468-3 : 21 dB
Maximum sound pressure level (passive) : 138 dB SPL
Current consumption : 3,3 mA
