Sennheiser EW-DX MKE 2 / 835-S SET (S1-10) Digital Wireless Combo Set

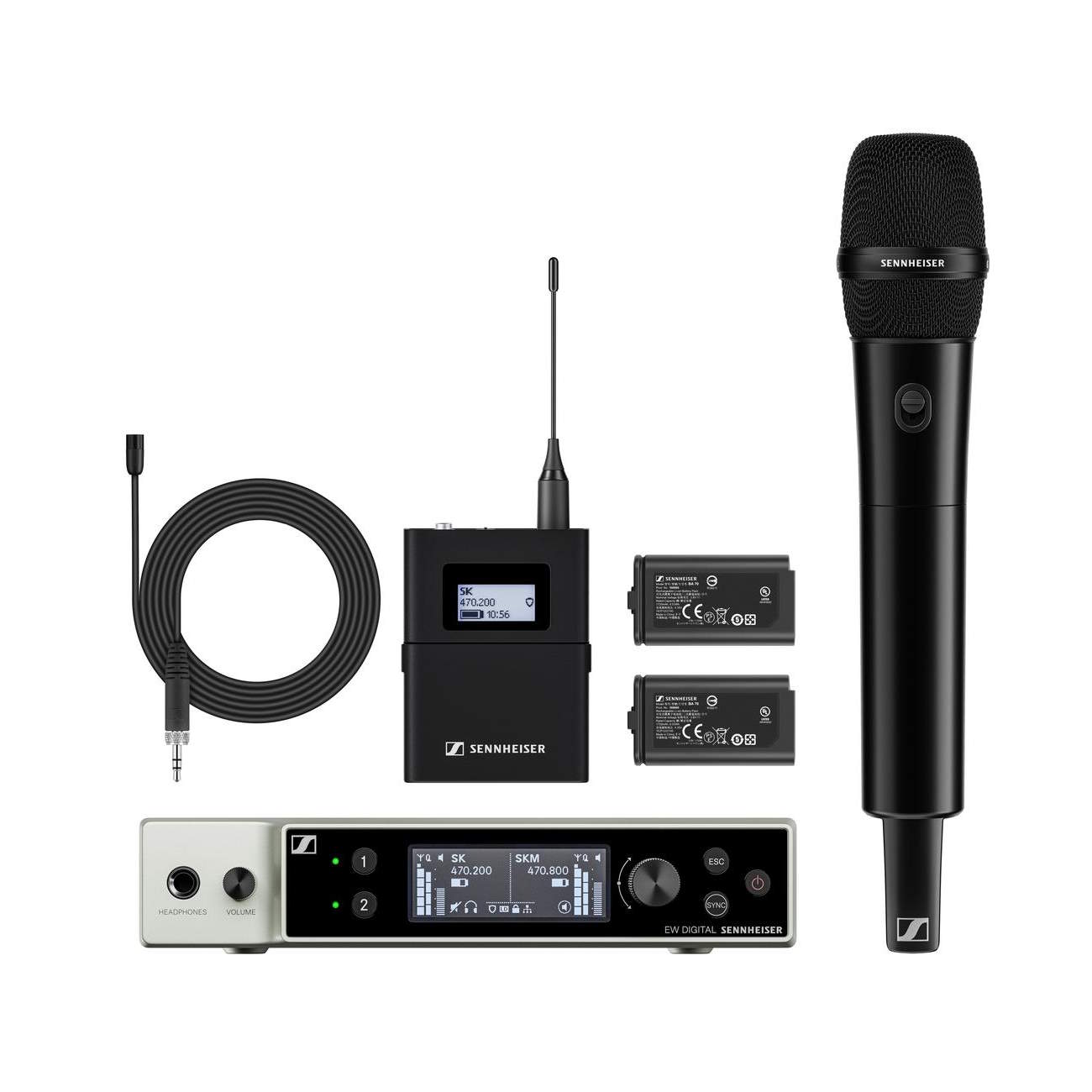

Sennheiser EW-DX MKE 2 / 835-S SET (S1-10) Digital Wireless Combo Set - This combo set consists of 1 x EW-DX SKM-S (handheld with mute switch), 1 x MMD 835 capsule (cardioid, dynamic), 1 x EW-DX SK (wireless bodypack transmitter), 1 x MKE 2 (omni-directional clip-on lavalier microphone), 1 x EW-DX EM 2 rackmout receiver (2 channels) and 2 x BA 70 rechargeable batteries.

FEATURES EW-DX EM 2
• 2 channel half rack (9.5’)
• Up to 88 MHz switching bandwidth
• PoE IEEE 802.3af Class 3
• Equidistant Channel Spacing: 146 channels in standard mode; 293 channels in Link Density Mode
• Network enabled for control with Sennheiser Control Cockpit/media control system through a number of 3rd party modules
• Clear and easy focused user interface with OLED display
• Ethernet connectivity (IPv4 and IPv6)
• Secure AES 256 encryption
• External PSU 12V/1A
• All-metal housing

FEATURES EW-DX SKM-S
• 10mW RF power with up to 100m/328ft working range
• Charging contacts for in-device charging with CHG 70N
• Persistent eInk display - parameters visible on screen even when device is not powered on
• Programmable mute switch on EW-DX SKM-S - customize the device depending on your professional needs
• Function buttons - control all the transmitter settings directly from handheld microphone
• Extended runtime with lithium-ion batteries - up to 12 hours operation time
• Standard capsule interface - compatible with a wide range of Sennheiser and Neumann capsules
• Mic input trim control
• Metal housing

FEATURES EW-DX SK
• 3,5 mm jack
• 10mW RF power with up to 100m/328ft working range
• Charging contacts for in-device charging with CHG 70N
• Persistent eInk display - parameters visible on screen even when device is not powered on
• Programmable mute switch - customize the device depending on your professional needs
• Extended runtime with lithium ion batteries - up to 12 hours operation time
• Mic input trim control
• Metal housing

EW-DX EM2 rack receiver
• EW-DX SK bodypack transmitter
• EW-DX SKM-S handheld transmitter
• MKE 2 lavalier microphone
• MMD 835 microphone module
• MZQ 1 microphone clamp
• 2 rod antennas
• power supply with country adapters
• GA 3 rackmount set
• 4 rubber feet
• 2 BA 70 rechargeable battery packs
• quick guide
• safety guide
• manufacturer declaration sheet

Range S1-10 ( 606.200-693.800 MHz )

Range S1-10 is suitable for use on bandwidth between 606-614MHz ( Channel 38 ) in the UK, which is covered by a standard UK radio mic licence. This is the best solution for most users and offers reliable results for portable use.

Other frequency ranges are available, which are suitable for limited licence-exempt use and for fixed site users. Please call our Sales Team on 01707 332104 if you would like to discuss this further, we will be happy to offer specific advice.
