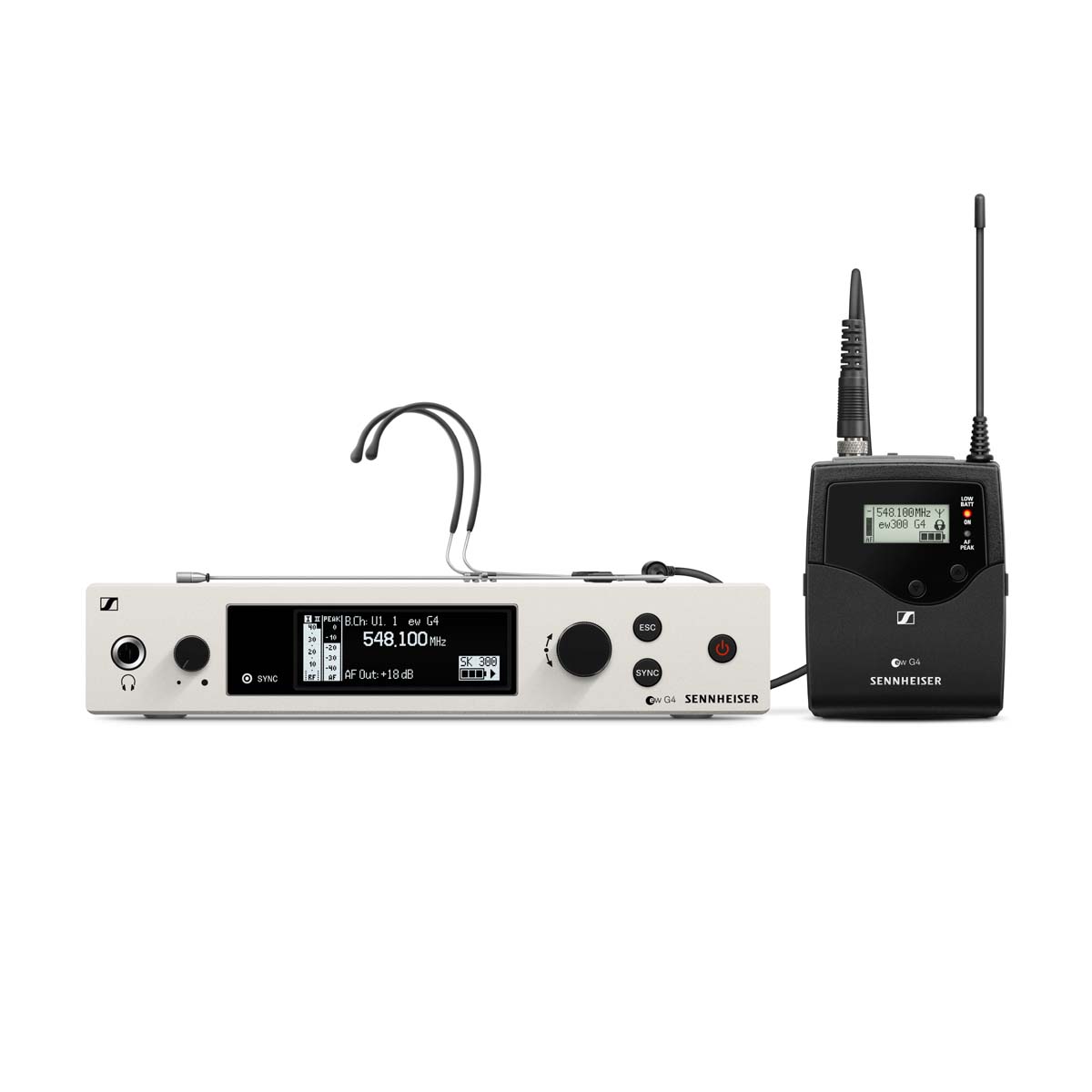

The Sennheiser EW300-G4-HEADMIC1-RC-GBW is a wireless headset system. The slimline, lightweight (7g) HEADMIC 1 microphone is comfortable to wear and visually discreet with a smart silver finish. The microphone capsule is Sennheiser's MKE1 which is an ultra-small ( 3.3mm diameter ) broadcast-quality design, featuring a moisture resistant protective membrane.
This system is suitable for conference and presentation use, giving louder levels before feedback than a lapel mic, due to the closer proximity of the microphone to the performers mouth. The microphone fits securely, so is also well suited to live performances and musical theatre.
The beltpack included is Sennheiser's SK300-G4 which has a socket for connection of an option RMS 1 remote mute switch. The RMS 1 is a small box with a push-button and is connected to the beltpack with a short cable. This allows it to be handheld or clipped to clothing, giving the performer the ability to mute/unmute audio which would normally only be available with a handheld microphone.
Included items :
1 x EM300-500 G4 true diversity receiver
1 x SK300 G4 beltpack transmitter
1 x SL Headmic 1
1 x GA3 rackmount kit
1 x 12V DC power supply
2 x AA batteries
2 x BNC rod antennas
1 x User guide & frequency planner sheet
• Easy to use, fast setup time
• Integrated network port allows control, monitoring and setup via Sennheiser Control Cockpit and WSM Software
• Broad range of products and existing accessories (such as microphones) allows usage in any kind of environment
• Up to 88 MHz bandwidth, up to 32 channels
• Increased RF output power (10/30/50 mW)
• Transmission Range: up to 100 meters / 330 feet
• Compatible with wireless speaker system LSP 500 PRO
• RC (remote control) switch available for the bodypack transmitter
Range GBW ( 606-678 MHz )
Range GBW is suitable for use on bandwidth between 606-614MHz ( Channel 38 ) in the UK, which is covered by a standard UK radio mic licence. This is the best solution for most users and offers reliable results for portable use. Upto 12 x systems can be operated together and the licence allows use across the UK, indoors & outdoors.
Frequency range GBW covers a total of 72MHz of bandwidth, enabling configuration of large multi-channel setups when 48-hour portable licences or fixed site licences are used for more specialist applications.
Other frequency ranges are available, which are suitable for limited licence-exempt use and for fixed site users. Please call our Sales Team on 01707 332104 if you would like to discuss this further, we will be happy to offer specific advice.
