- Overview
- Included Items
- Features
- Frequency Range GBW

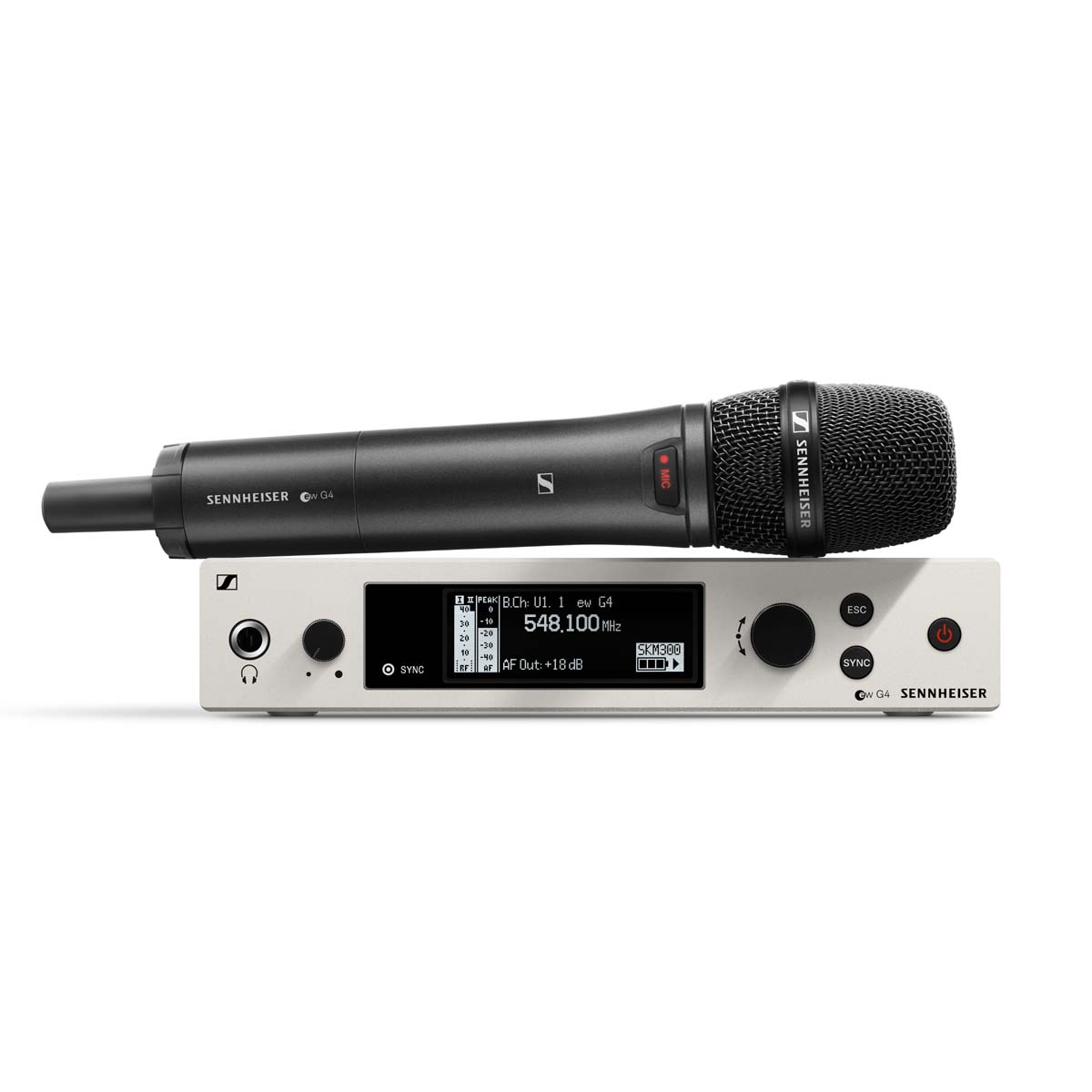

The Sennheiser EW300-G4-BASE-SKM-S-GBW radio mic system includes a rackmount receiver and SKM300-G4 handheld transmitter ( without a mic capsule ).
To complete the system, please select one of the compatible mic capsules using the drop-down box :
Sennheiser MMD835-1 BK - General purpose dynamic, cardioid mic - Black
Sennheiser MMD845-1 BK - Dynamic, super-cardioid mic with enhanced feedback rejection - Black
Sennheiser MME865-1-BK - Electret condenser, super-cardioid mic with low handling noise and accurate reproduction - Black
Sennheiser MMD935-1 BK - Dynamic cardioid mic, designed for use on loud stages - Black
Sennheiser MMD945-1 BK - Dynamic super-cardioid mic, designed for use on loud stages, enhanced feedback rejection - Black
Sennheiser MMK965-1 BK - Premium condenser mic with switchable pickup pattern and -10dB pad - Black
Sennheiser MMK965-1 NI - Premium condenser mic with switchable pickup pattern and -10dB pad - Nickel
Sennheiser MMD42-1 - Dynamic omni-directional mic - perfect for ENG interview use - Black
Included items :
1 x EM300-500 G4 true diversity receiver
1 x SKM300 G4-S handheld transmitter ( order mic head separately )
1 x GA3 rackmount kit
1 x MZQ1 microphone clamp
1 x 12V DC power supply
2 x AA batteries
2 x BNC rod antennas
1 x User guide & frequency planner sheet
• Easy to use, fast setup time
• Integrated network port allows control, monitoring and setup via Sennheiser Control Cockpit and WSM Software
• Broad range of products and existing accessories (such as microphones) allows usage in any kind of environment
• Up to 88 MHz bandwidth, up to 32 channels
• Increased RF output power (10/30/50 mW)
• Transmission Range: up to 100 meters / 330 feet
• Compatible with wireless speaker system LSP 500 PRO
• RC (remote control) switch available for the bodypack transmitter
Range GBW ( 606-678 MHz )
Range GBW is suitable for use on bandwidth between 606-614MHz ( Channel 38 ) in the UK, which is covered by a standard UK radio mic licence. This is the best solution for most users and offers reliable results for portable use. Upto 12 x systems can be operated together and the licence allows use across the UK, indoors & outdoors.
Frequency range GBW covers a total of 72MHz of bandwidth, enabling configuration of large multi-channel setups when 48-hour portable licences or fixed site licences are used for more specialist applications.
Other frequency ranges are available, which are suitable for limited licence-exempt use and for fixed site users. Please call our Sales Team on 01707 332104 if you would like to discuss this further, we will be happy to offer specific advice.
