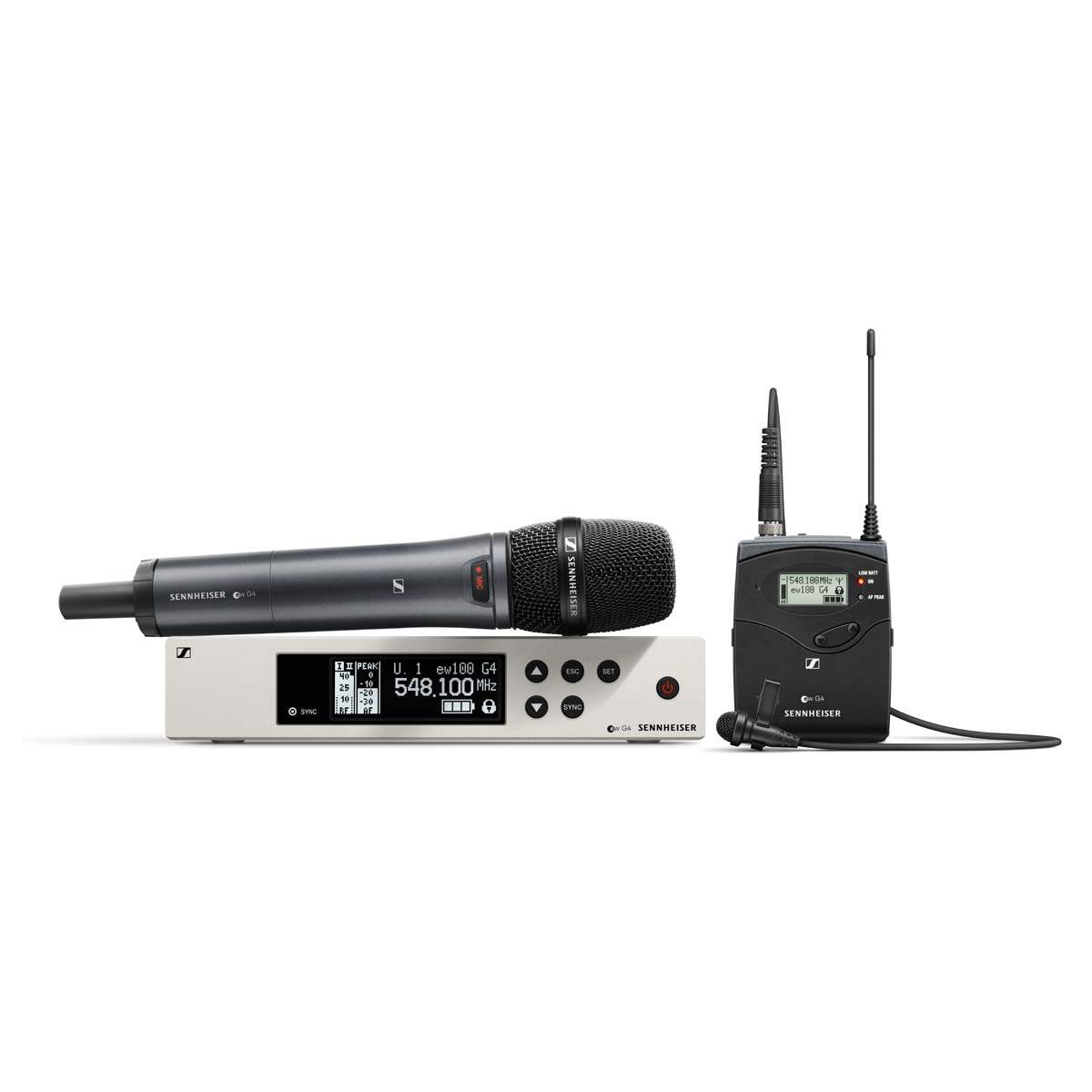

The Sennheiser EW100-G4-ME2/835-S-E is a dual kit ( combo ) system which allows users to select either a wireless lapel or handheld transmitter to suit different performances. Only 1 x receiver is provided, so it is not possible to use both transmitters together, however this is a very flexible option that allows one univeral system to be deployed for a variety of different events.
1 x EM 100 G4 receiver with 42MHz tuning bandwidth
1 x SK 100 G4 beltpack transmitter
1 x SKM 100-S G4 handheld transmitter body with mute switch
1 x MMD 835-1 dynamic mic head
1 x ME2 II omni-directional lapel mic
1 x MZQ 1 microphone clamp
1 x GA 3 rackmount kit
1 x 12V DC power supply
2 x AA batteries
2 x BNC rod antennas
1 x RJ 10 linking cable - allows fast, simultaneous setup of up to 12 linked systems
1 x User guide & frequency planner sheet
Engineered for professional live sound : Rugged all-in-one combo wireless system for singers, presenters and moderators.
• Dynamic handheld microphone e 835, robust bodypack transmitter and unobstrusive clip-on microphone ME2-II (omni-directional) with high speech intelligibility for daily use on stage
• True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control
• Easy and flexible wireless synchronization between transmitter and receiver via infrared
• Fast frequency allocation for up to 12 receivers via new linking functionality
• Up to 20 compatible channels
• Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
• Transmission Range: up to 100 meters / 300 feet
• High RF output power (up to 30 mW) depending on country regulations
Range E ( 823-865 MHz )
Range E is a flexible choice for use in the UK and across Europe. Without a licence it can be used in the UK between 863-865 MHz. This is enough bandwidth to allow the use of upto 4 x systems simultaneously.
With a UK radio mic licence, it can be used between 823-832 MHz. This falls under the scope of the revised licence brought into effect in April 2015. This is sufficient bandwidth to alllow the use of upto 13 x simultaneous systems. Access to 823-832 MHz is also well co-ordinated across Europe.
Please phone our Sales Team on 01707 332104 if you have any questions about frequencies and licencing, we will be happy to help.
