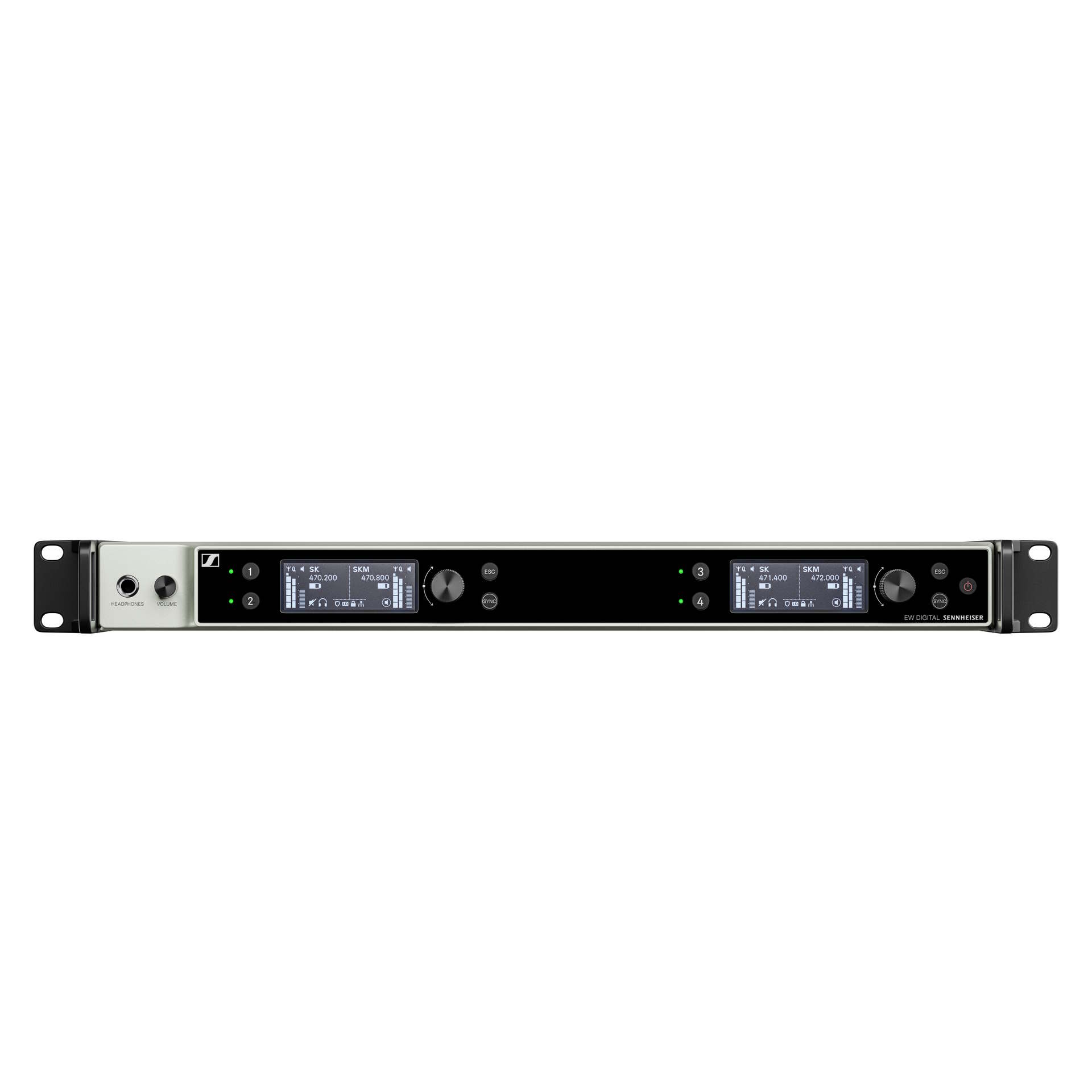

Sennheiser EW-DX EM 4 DANTE (S1-10) Four-channel digital full-rack (19") receiver with internal PSU and Dante® for use with Evolution Wireless Digital handheld, bodypack and tablestand transmitters. Extended 88 MHz switching bandwidth, intermodulation-free operation [intermodulation-free equidistant channel spacing] for up to 293 channels with secure AES 256 encryption and four modular network ports.
Four-channel digital full rack (19") receiver with internal PSU and with Dante® in rugged metal housing
Up to 88 MHz switching bandwidth
Auto-switching PSU with IEC Connection

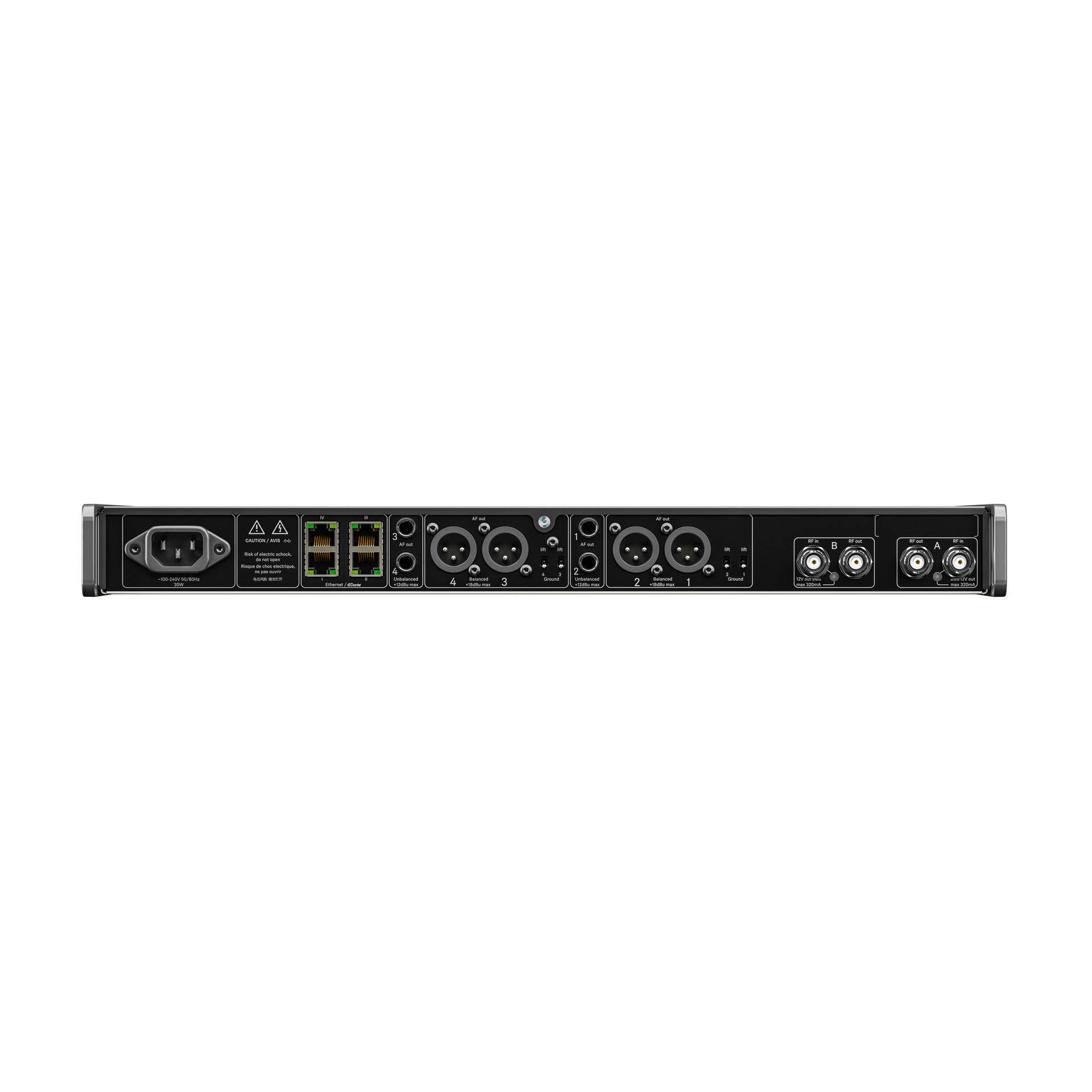

Four network ports for flexible network configurations - each port can be assigend as: Control, Control + Dante® Prim, Control + Dante® Sec, Dante® Prim, Dante® Sec
Integrated antenna splitter with antenna power and loop through to daisy chain up to 16 channels (4 x EW-DX EM 4)
Low latency of 1.9 ms wireless transmission thanks to proprietary Sennheiser Performance Audio Codec (SePAC)
134 dB input dynamic range - no need to set gain on your wireless transmitters at all, thanks to proprietary Sennheiser Performance Audio Codec (SePAC)
Equidistant channel spacing to easily allocate intermodulation-free channels: Standard Mode with 600 kHz spacing for up to 146 channels; Link Density (LD) Mode with 300 kHz spacing for up to 293 channels
Network enabled for expanded remote control with Sennheiser Control Cockpit, Wireless System Manager (WSM - Available in mid-2023) and 3rd party media control systems via plug-in
Ethernet connectivity (IPv4 and IPv6)
Secure transmission of confidential content using AES 256 encryption
AutoScan-feature quickly scans your environment and deploys frequencies with equidistant channel spacing - even without RF knowledge
Link Quality Indicator (LQI) showing the quality of the links seperate to the RF levels
Remote control via Smart Assist App over Bluetooth® Low Energy (BLE) at distances up to 25 meters (Available in late 2023)
Clear and easy focused user interface with OLED display, jog wheel navigation and control buttons
Selective headphone output with volume control on front panel
Extended menu settings such as custom frequency list, selectable sync parameter and walk test
Worldwide usage (specific frequencies subject to local RF regulations)
EW-DX EM 4 Dante rack receiver
GA 3 rack mount kit
EW-D Power Supply with country adapters
2 rod antennas
4 rubber feet
Range S1-10 ( 606.200-693.800 MHz )
Range S1-10 is suitable for use on bandwidth between 606-614MHz ( Channel 38 ) in the UK, which is covered by a standard UK radio mic licence. This is the best solution for most users and offers reliable results for portable use.
Other frequency ranges are available, which are suitable for limited licence-exempt use and for fixed site users. Please call our Sales Team on 01707 332104 if you would like to discuss this further, we will be happy to offer specific advice.
