Our Sennheiser radio mic systems are supplied racked and ready to use. They are built using genuine Sennheiser RF splitters, Sennheiser power supplies, Neutrik audio connectors and high quality flightcases, to ensure the whole system offers the reliability & performance that Sennheiser wireless equipment is renowned for.

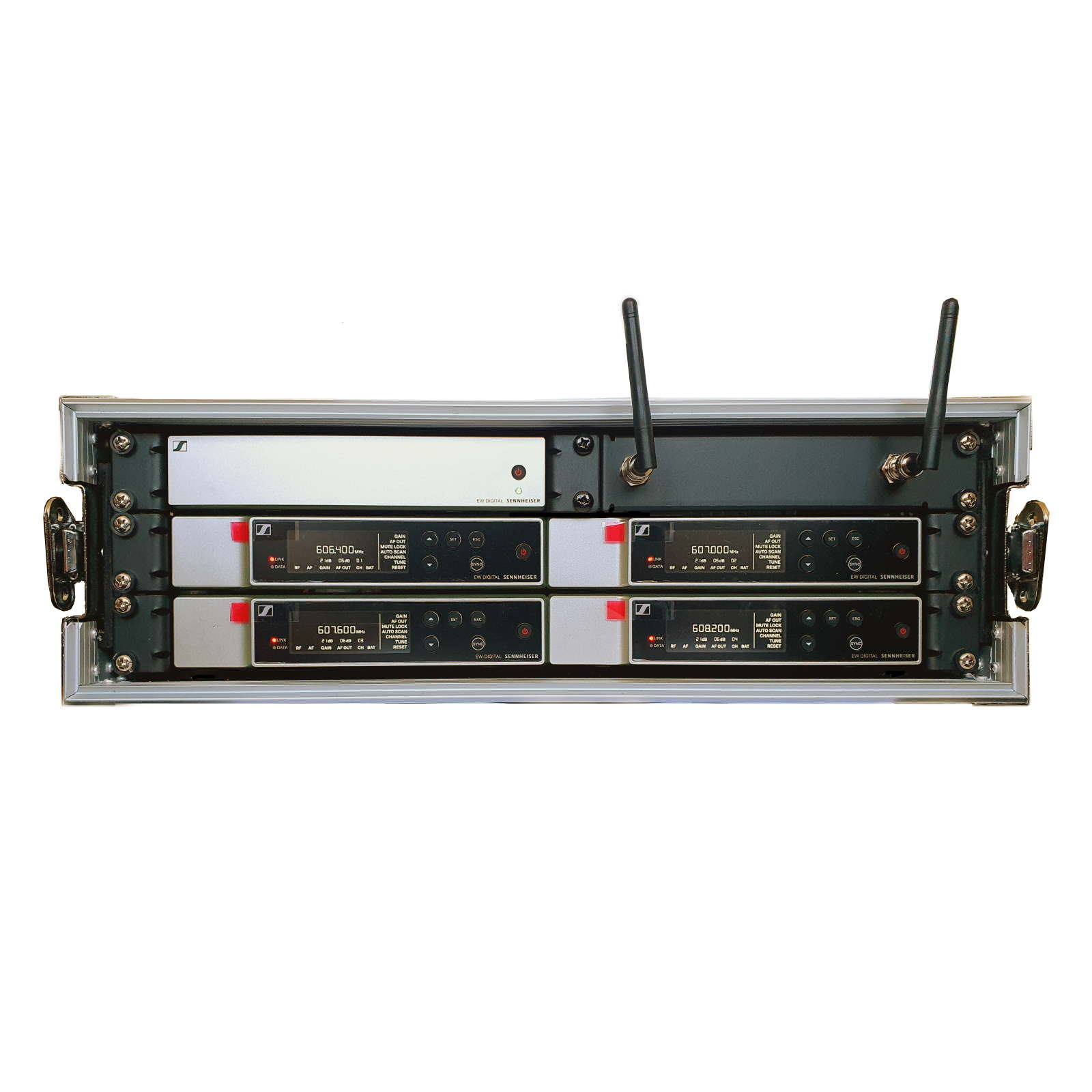

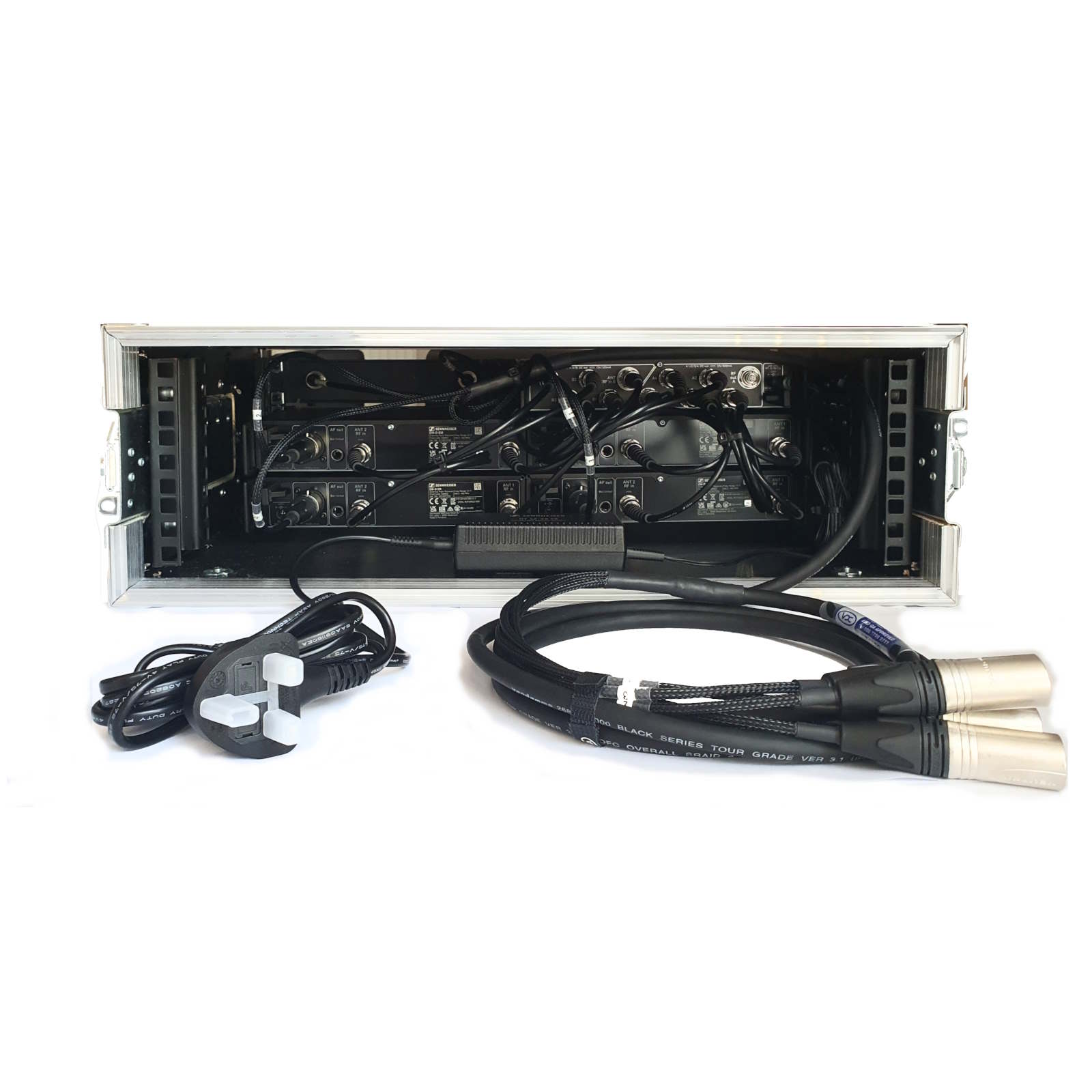

This system includes 4 x Sennheiser EW-D-EM digital receivers, rackmounted in a high quality 3U black flightcase together with 1 x Sennheiser EW-D-ASA active antenna splitter. A Sennheiser NT12-35+ power supply provides DC power for all receivers. A Sennheiser AM2 cable kit is used to mount the aerials on the front panel of the rack next to the EW-D-ASA splitter. The aerials provided are standard 1/4 wave aerials. Transmitters and receivers are pre-programmed and labelled. A 3M 4-way Van Damme XLR Audio loom is connected externally for audio output. The systems are delivered fully assembled, tested and ready to use.
The standard price for this system includes 4 x EW-D-SK beltpack transmitters but various options can be supplied with this system to suit different applications.
Please use the dropdown box above to see how selecting different transmitters would affect the total price. If you would like a price for a package including a combination of different types of transmitter then please contact us and we will be happy to provide a quote.
The standard frequency range we supply this system on is Sennheiser Range S1-7 ( 606.200-662.000 MHz )
Range S1-7 is suitable for use on bandwidth between 606-614MHz ( Channel 38 ) in the UK, which is covered by a standard UK radio mic licence. This is the best solution for most users and offers reliable results for portable use.
Other frequency ranges are available, which are suitable for limited licence-exempt use and for fixed site users. Please call our Sales Team on 01707 332104 if you would like to discuss this further, we will be happy to offer specific advice.
