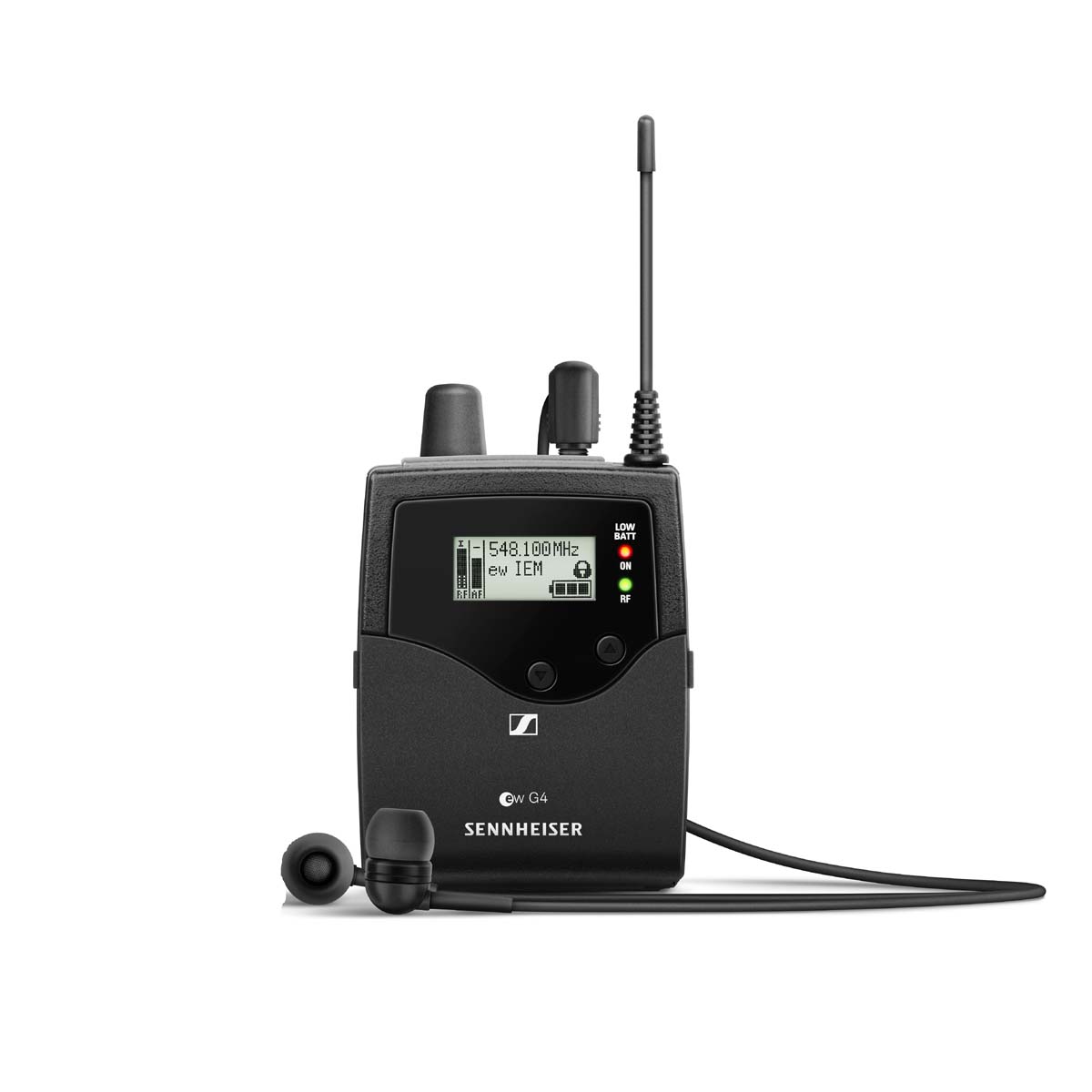

The Sennheiser EK-IEM-G4-GB beltpack is a rugged unit fitted with a standard 3.5mm stereo minijack socket. This can be used with the supplied IE4 in-ear earphones but is also compatible with any other earphones fitted with a standard miniack ( e.g. custom moulds etc ).
The beltpack features 'Focus Mode' which allows it to be converted to from stereo output to dual-mono output. In Focus Mode, when the transmitter is fed with two different monitor mixes, the Up and Down buttons on the beltpack allow adjustment on the pack to hear Mix 1, Mix 2 or a blend of both.
1 x EK IEM G4 stereo beltpack receiver
2 x AA batteries

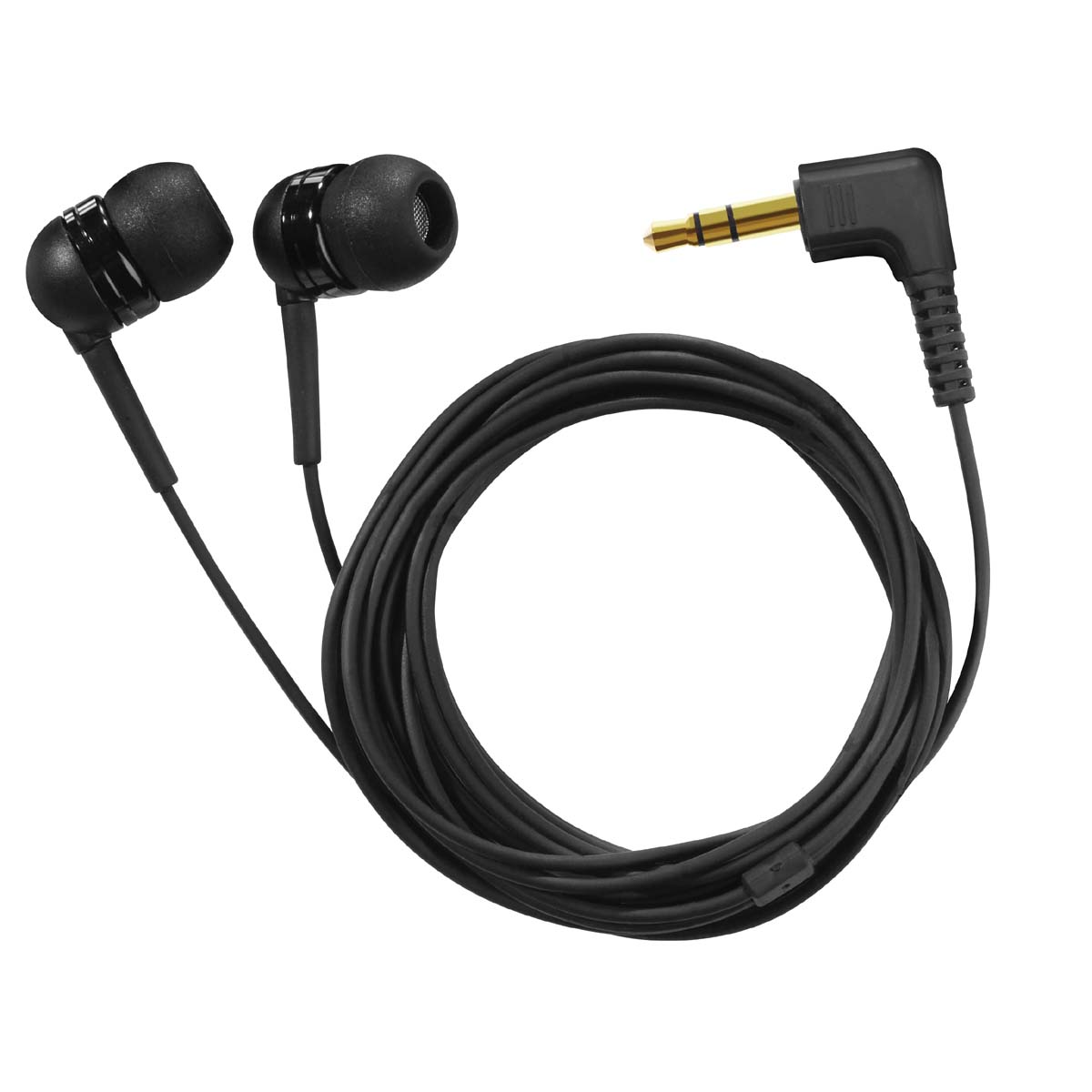

1 x Pair of stereo IE 4 earphones
1 x User guide & frequency planner sheet
• Robust bodypack receiver delivering clarity along the whole frequency spectrum for daily use on stage
• Easy and flexible wireless synchronization between transmitter and receiver via infrared
• Compatible with Sennheiser WSM control software for flexible frequency allocation
• Up to 16 compatible channels
• Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
• Transmission Range: up to 100 meters / 300 feet
• High RF output power (up to 30 mW) depending on country regulations
Range GB ( 606-648 MHz )
Range GB is suitable for use on bandwidth between 606-614MHz ( Channel 38 ) in the UK, which is covered by a standard UK radio mic licence. This is the best solution for most users and offers reliable results for portable use. Upto 9 x IEM systems can be operated together and the licence allows use across the UK, indoors & outdoors.
Other frequency ranges are available, which are suitable for limited licence-exempt use and for fixed site users. Please call our Sales Team on 01707 332104 if you would like to discuss this further, we will be happy to offer specific advice.
