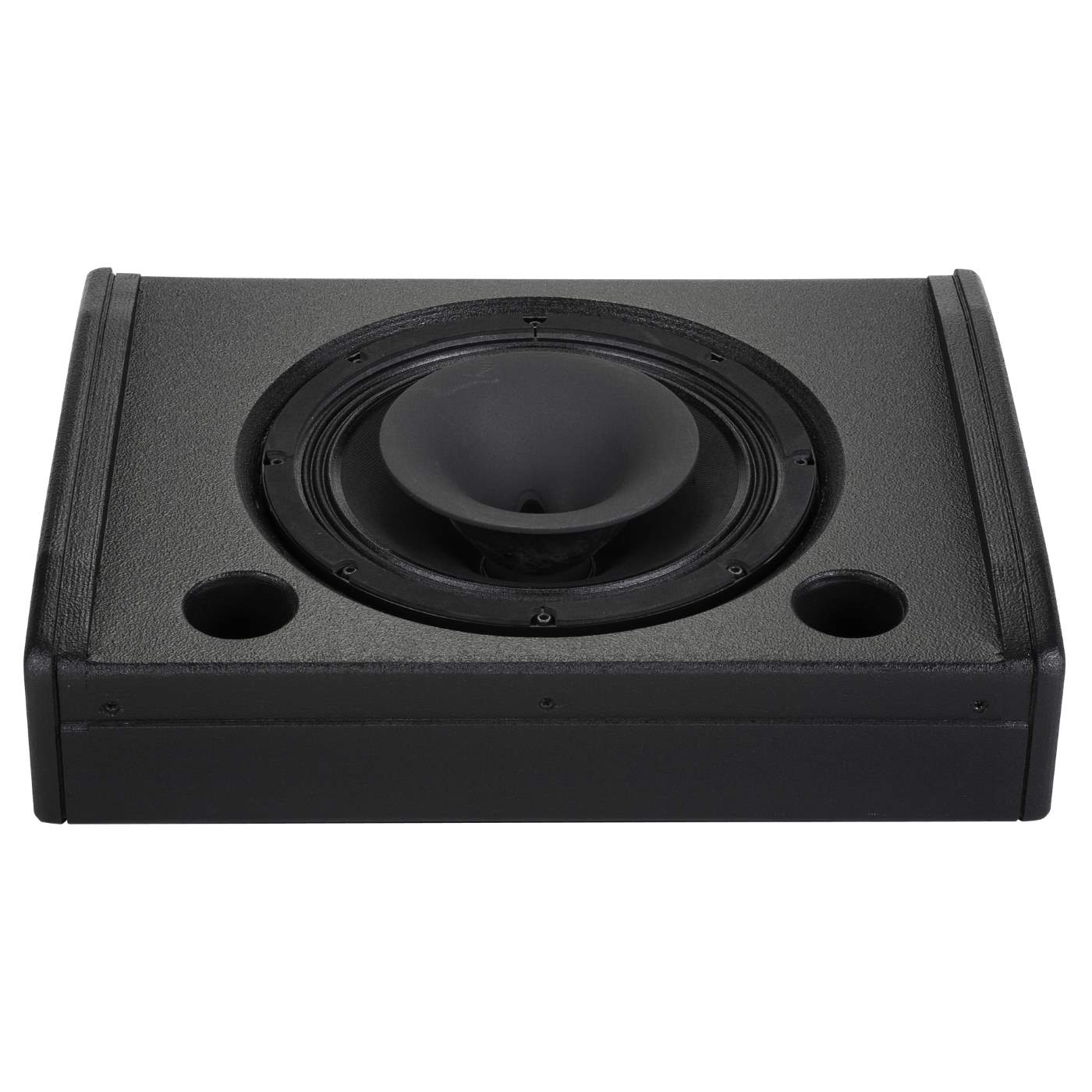

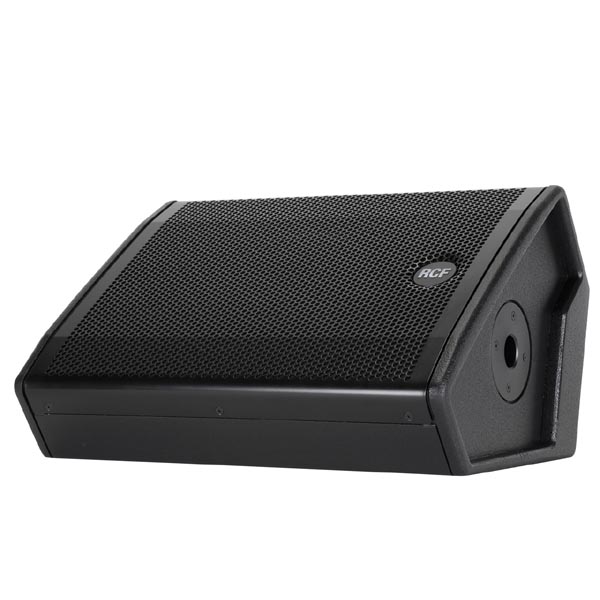

The NX 12-SMA is equipped with new high power 700 W digital amplifier and a newly designed 12” coaxial neodymium transducer that guarantees outstanding audio quality and definition as well as an extremely lightweight of the final system.
The NX 12-SMA can be also used as a portable PA system, thanks to the rugged powder coated steel pole mount installed on the side. In order to control the response of the speaker in such different applications, RCF has incorporated two special Equalization Modes:
- Floor, for stage monitoring;
- Free Field, for the use of the speakers as a stand-alone PA system.
Cabinet is made in Baltic Birch plywood, finished with an extremely resistant paint for an extensive use on the road.

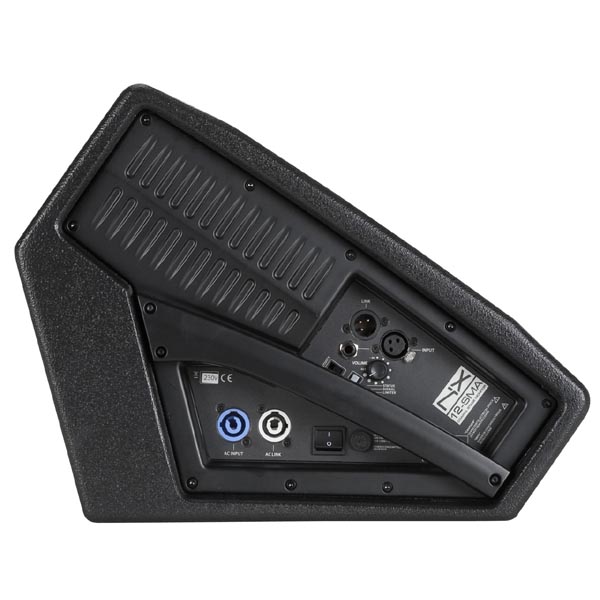

An ergonomic side handle, integrated with the input panel, is provided for an easier transport of the speaker.
FEATURES
1400 Watt Peak, 700 Watt RMS digital bi-amplification
129 dB max spl
60° x 60° constant directivity horn
12" High power neodymium woofer, 2.5" voice coil
1.7" kapton dome, 1" exit, neodymium high frequency driver
DSP processing, floor - fre field equalization, soft limiter and protection
Combo xlr/jack input, xlr signal output
ACOUSTICAL SPECIFICATIONS
Frequency Response -3 dB:50 Hz - 20000 Hz
Max SPL:129 dB
Horizontal coverage angle:60°
Vertical coverage angle:60°
Compression Driver:1.7" kapton dome, 1" exit, neodymium
Woofer:12" neo high power woofer, 2.5" voice coil
INPUT/OUTPUT SECTION
Input connectors:xlr, jack
Output connectors:xlr
PROCESSOR SECTION
Limiter:Soft Limiter
Controls:Freefield, floor
AMPLIFIER SPECIFICATIONS
Total power:1400 W PEAK
High frequencies:400 W PEAK
Low frequencies:1000 W PEAK
Total power:700 W RMS
High frequencies:200 W RMS
Low frequencies:500 W RMS
CABINET
Cabinet Material:Baltic Birch
Handles:1 on side
Pole Mount/Cap:yes

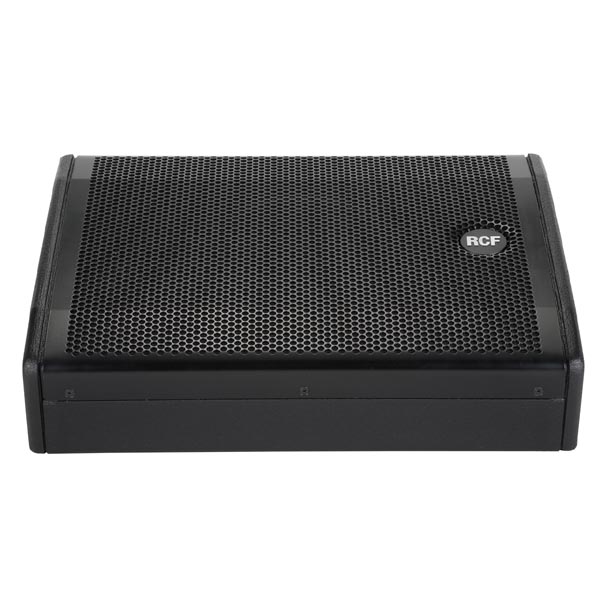

Grille:steel
PHYSICAL SPECIFICATIONS
Height:324/12.7 mm/inch
Width:550/21.6 mm/inch
Depth:417/16.4 mm/inch
Net Weight:16,5/36.3 kg/lbs
