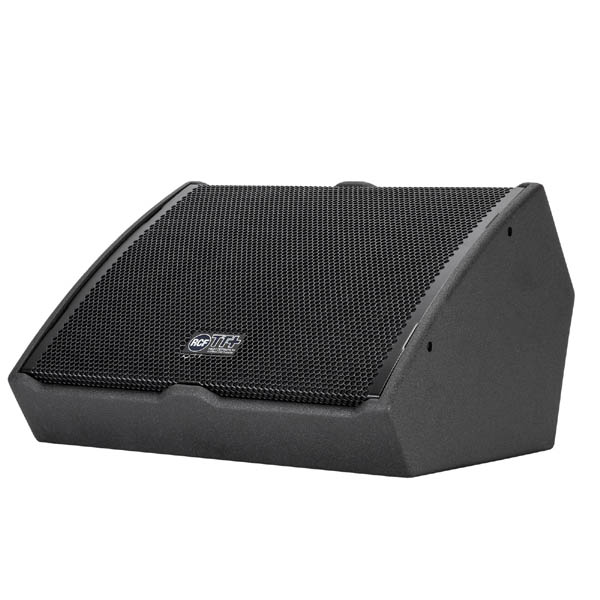

RCF's TT25-CXA is a full range, high performance coaxial monitor. The linear response curve, the consistent coverage and acoustic output make the TT25-CXA the professional choice for most demanding situations. The voicing is accurate and deep, the sound is transparent in the mids and extremely accurate at very high frequencies. The size is compact and the profile is very low for a discreet appearance. The TT25-CXA is a high power active system that sets a new standard in the touring and theatre sound reinforcement. By producing flat amplitude and phase response, full-range bandwidth and exceptional impulse response, the TT25-CXA far exceeds the capabilities of conventional stage monitors.
FEATURES
1100 W Class D Amplifier
60 x 60 constant directivity coverage angle

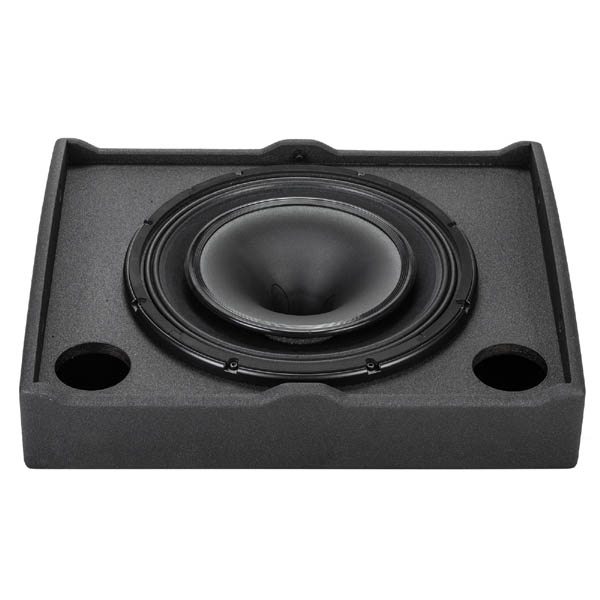

15" neo coaxial woofer, 3.5" mm voice coil
1.5 " neo coaxial c. driver, 2.5" mm voice coil
DSP Processing
Onboard RDNet Control
Multifunctional cabinet
Very high output
ACOUSTICAL SPECIFICATIONS
Frequency Response -3 dB:50 Hz - 20000 Hz
Max SPL:133 dB
Horizontal coverage angle:60°
Vertical coverage angle:60°
Compression Driver:1.5 " neo, 2.5" voice coil
Woofer:15" neo, 3.5" voice coil

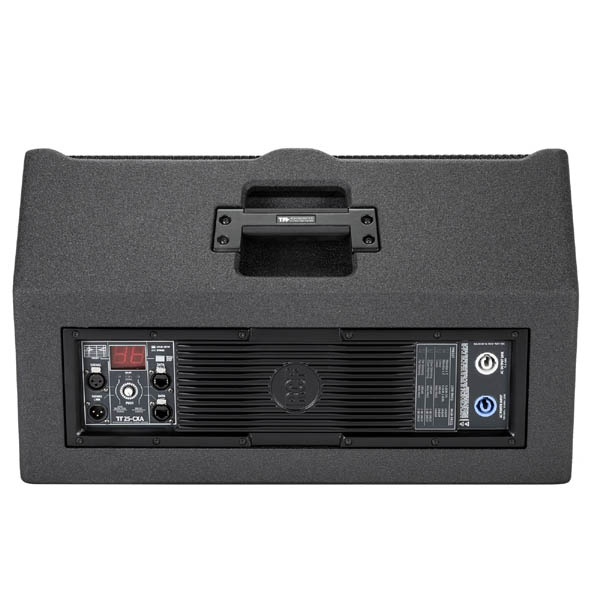

INPUT/OUTPUT SECTION
Input signal:Bal/unbal
Input connectors:XLR, RDNet onboard
Output connectors:XLR, RDNet onboard
Input sensitivity:-2 dBu / + 4 dBu
PROCESSOR SECTION
Crossover frequencies:900 Hz
Protections:Thermal, HF
Limiter:soft limiter, dynamic
Controls:proces., 8 sel. presets
AMPLIFIER SPECIFICATIONS
Total power:1100 W RMS
High frequencies:300 W RMS
Low frequencies:800 W RMS
Cooling:Convection
Connections:Powercon in/out
CABINET
Cabinet Material:Baltic birch
Handles:1 top
Pole Mount/Cap:yes
Colour:Black
PHYSICAL SPECIFICATIONS
Height:353 / 13.89 mm/inch
Width:580 / 22.83 mm/inch
Depth:486 / 19.15 mm/inch
Net Weight:18 / 39.6 kg/lbs
