** RCF originally ony supplied 8, 12 and 15 inch TT models, which are now in MKII format. TT10A is from the same generation as these MKII models but does not show a MKII suffix as there wasn't an earlier version **

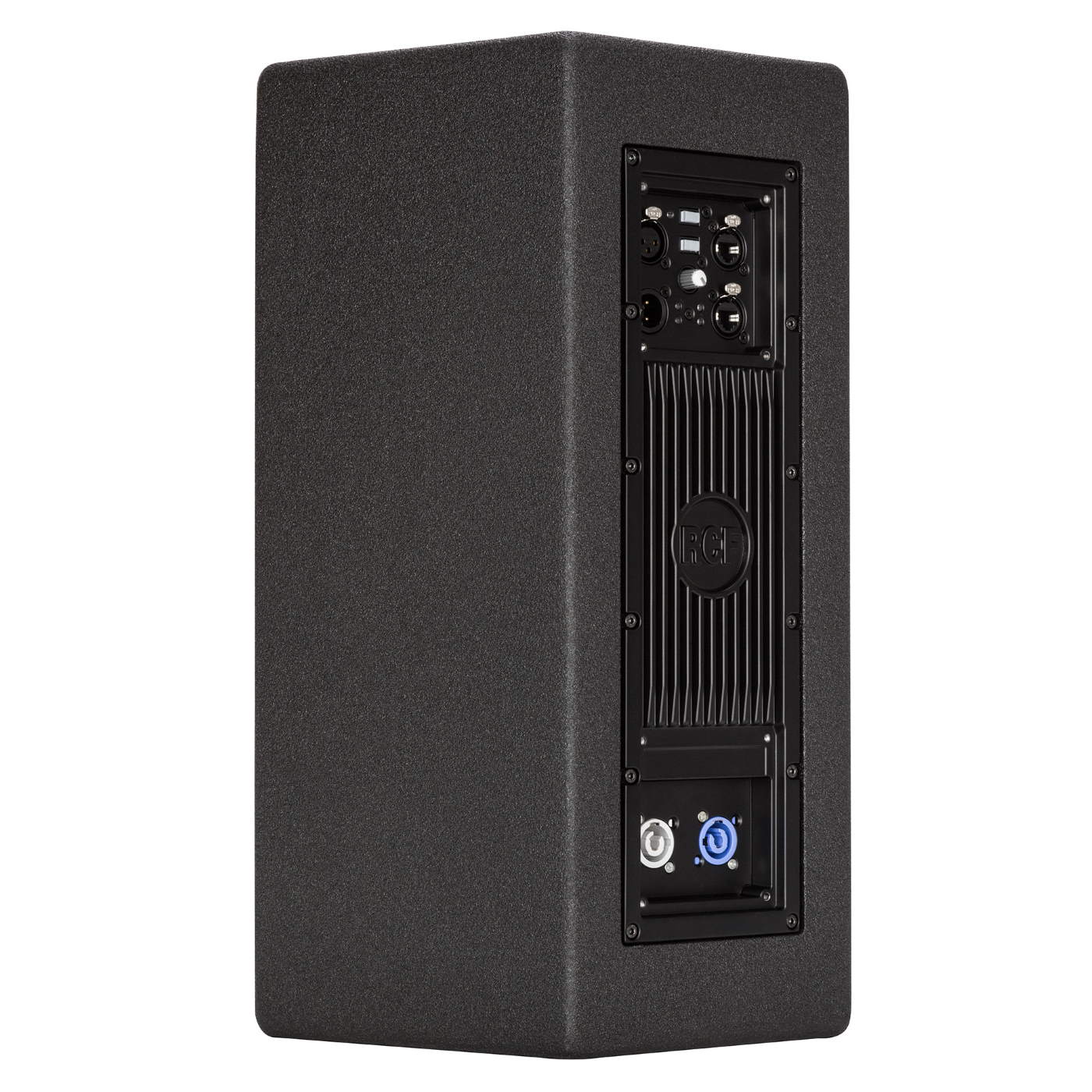

With 130 dB SPL power and a small footprint, the active two-way RCF TT10-A speaker saves the day when you need top quality sound power and unobtrusive size. Though remarkably compact and lightweight, the TT10-A offers the distinguished high-end TT+ sound quality, DSP capabilities, networked control, rugged hardware and a complete set of rigging options.
COLOR:
Black
Size
HEIGHT:
450 mm / 17.72 inches
WIDTH:
270 mm / 10.63 inches
DEPTH:
278 mm / 10.94 inches
WEIGHT:
11 kg / 24.25 lbs
Shipping informations
PACKAGE HEIGHT:
500 mm / 19.69 inches
PACKAGE WIDTH:
330 mm / 12.99 inches
PACKAGE DEPTH:
320 mm / 12.6 inches
PACKAGE WEIGHT:
12.7 kg / 28 lbs
Acoustical specifications
FREQUENCY RESPONSE:
60 Hz ÷ 20000 Hz
MAX SPL @ 1M:
130 dB
HORIZONTAL COVERAGE ANGLE:
90°
VERTICAL COVERAGE ANGLE:
70°
Transducers
COMPRESSION DRIVER:
1.0'' neo, 1.75'' v.c
WOOFER:
10'' neo, 2.5'' v.c
Input/Output section
INPUT SIGNAL:
bal/unbal
INPUT CONNECTORS:
XLR, RDNet Ethercon
OUTPUT CONNECTORS:
XLR, RDNet Ethercon
INPUT SENSITIVITY:
-2 dBu/+4 dBu
Processor section
CROSSOVER FREQUENCIES:
900 Hz
PROTECTIONS:
Thermal, HF
LIMITER:
Fast Limiter
CONTROLS:
Bypass, Linear/High Pass, Volume, RDnet on boar
RDNET:
Yes
Power section
TOTAL POWER:
2000 W Peak, 1000 W RMS
HIGH FREQUENCIES:
600 W Peak, 300 W RMS
LOW FREQUENCIES:
1400 W Peak, 700 W RMS
COOLING:
Convection
CONNECTIONS:
Powercon IN/OUT
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Baltic birch plywood
HARDWARE:

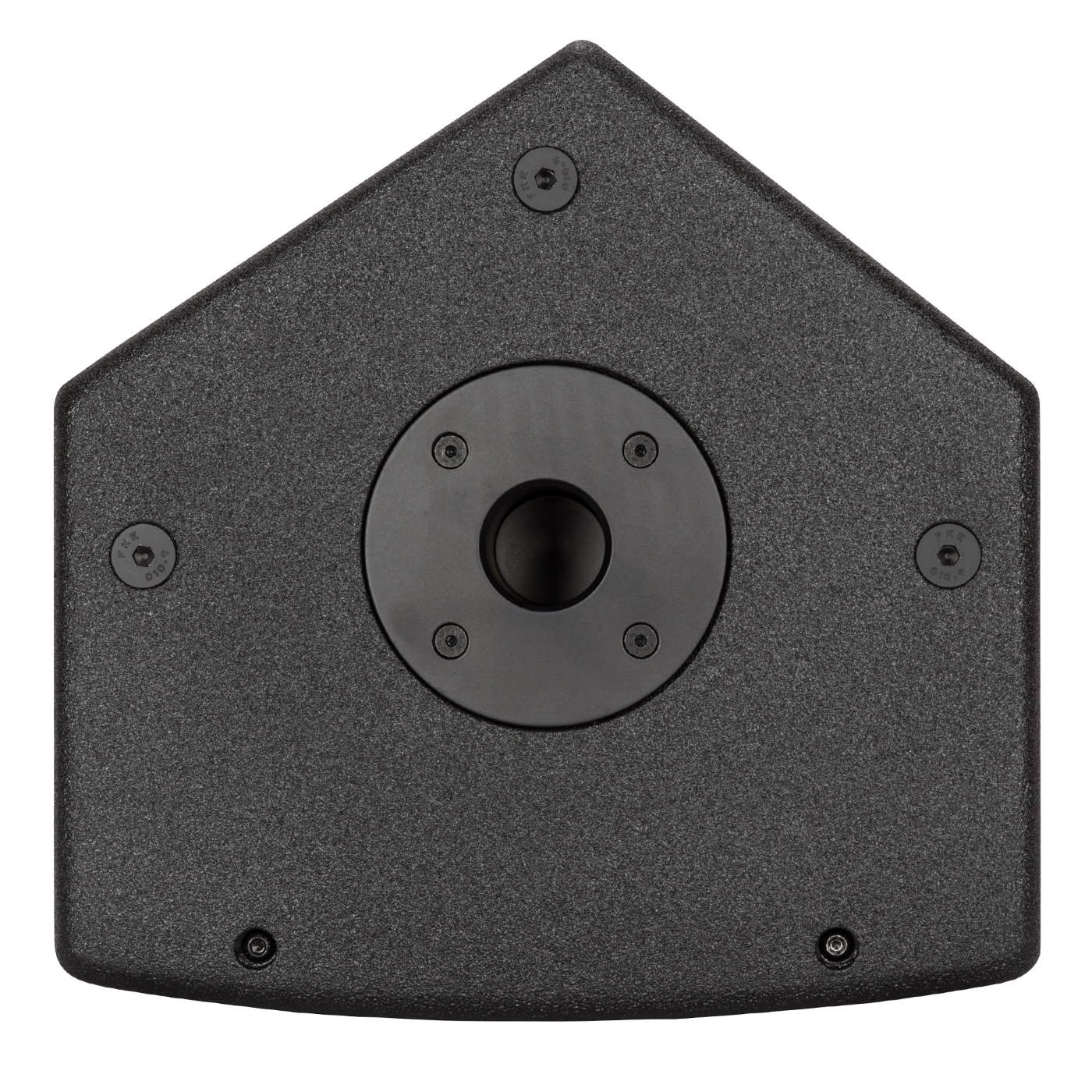

3X M10 TOP AND BOTTOM 2X PIN D.10 AND M10 SIDE
HANDLES:

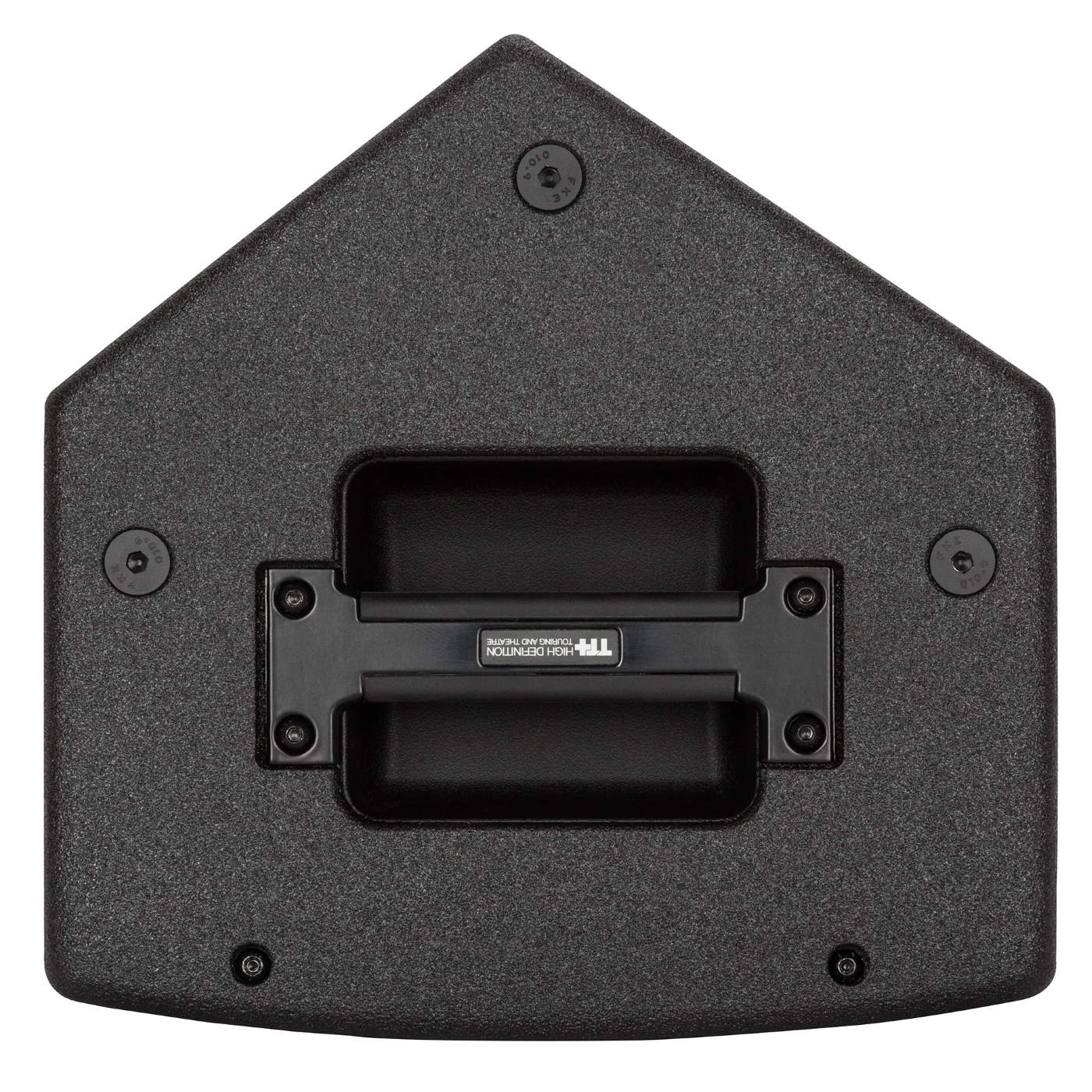

1 TOP
GRILLE:
Steel
COLOR:
Black
Size
HEIGHT:
490 mm / 19.29 inches
WIDTH:
306 mm / 12.05 inches
DEPTH:
299 mm / 11.77 inches
WEIGHT:
11.5 kg / 25.35 lbs
Shipping informations
PACKAGE HEIGHT:
540 mm / 21.26 inches
PACKAGE WIDTH:
350 mm / 13.78 inches
PACKAGE DEPTH:
350 mm / 13.78 inches
PACKAGE WEIGHT:
13.7 kg / 30.2 lbs
