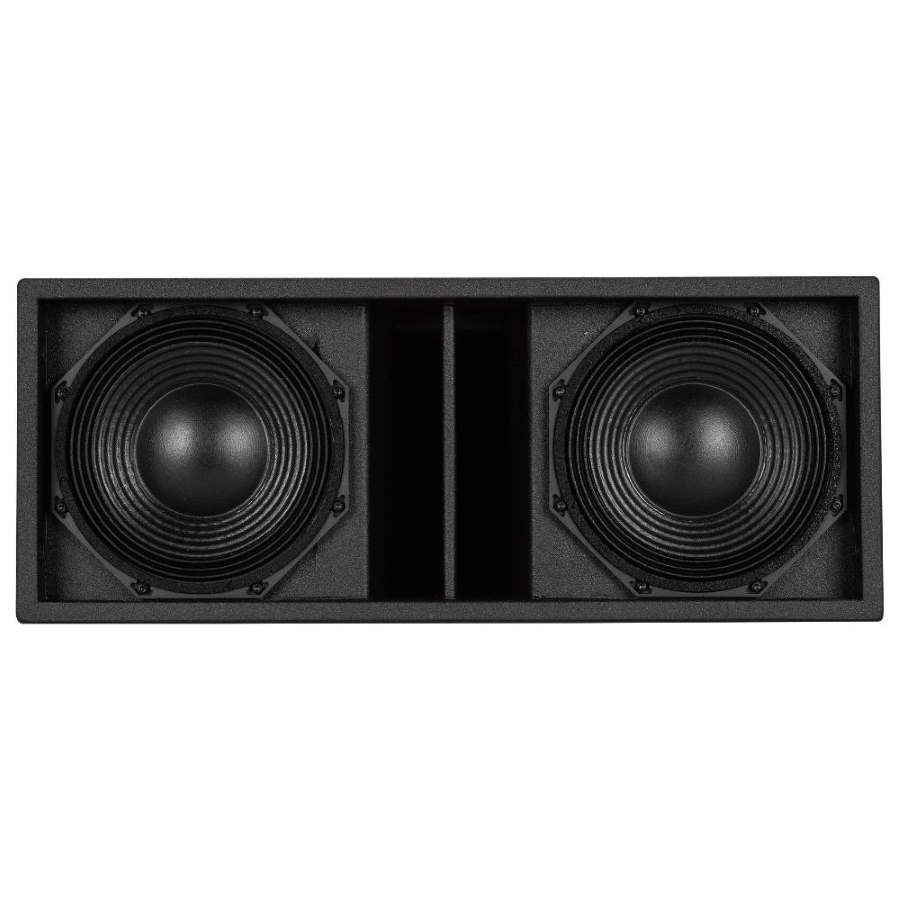

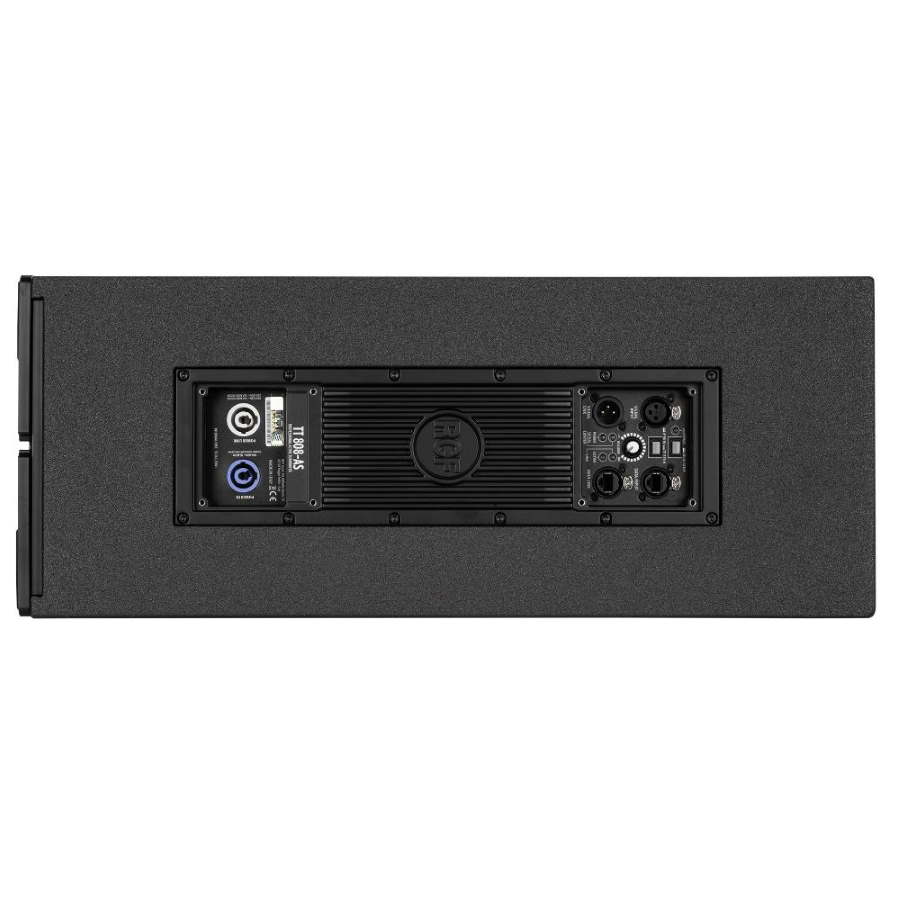

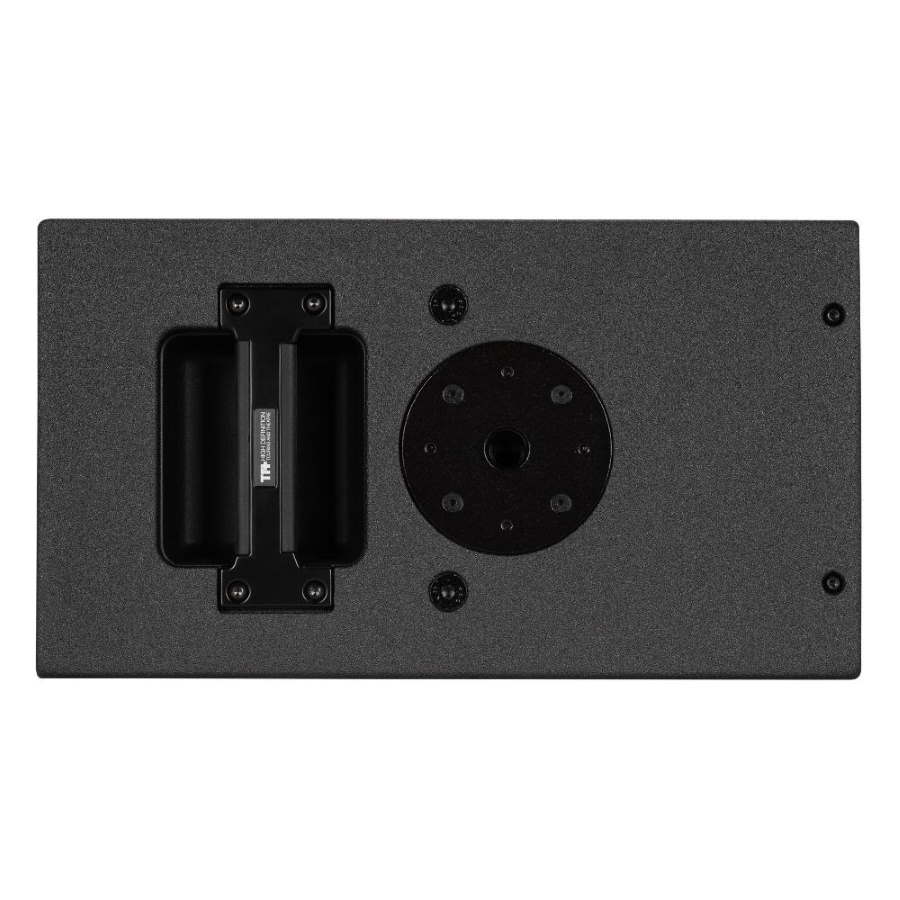

RCF TT 808-AS is a compact low-profile high performance active subwoofer. It features two vented-loaded 8" cone woofers powered by a 1000 Watts two-channel amplifier -one for each woofer- on a baltic birch plywood cabinet painted with black polyurea and weatherproof treatment. Management and tuning are available via RDNet software or using the two preset buttons, a polarity button, and a variable delay accessible from the back panel. The cabinet features rubber feet on two sides and two threaded polemounts for horizontal and vertical placement. Two stabilizing brackets make the vertical placement stable and firm.
• 129 dB max SPL
• 40 Hz to 400 Hz frequency range
• 1000 W RMS Class-D Amplifier
• 2 x 8'' neodymium woofers, 2.5'' v.c
• RDNet on board
• Bass Motion Control excursion management
• Flexible Rigging
• Rotatable TT+ Logo
Acoustical specifications Frequency Response: 40 Hz - 400 Hz
Max SPL @ 1m: 129 dB
Transducers Woofer: 2 x 8'' neo, 2.5'' v.c
Input/Output section Input signal: bal/unbal
Input connectors: XLR, RDNet Ethercon
Output connectors: XLR, RDNet Ethercon
Input sensitivity: -2 dBu/+4 dBu
Processor section Protections: Excurs.
Limiter: Fast Limiter
Controls: Gain, Equalization, ByPass on board
RDNet: Yes
Power section Total Power: 2000 W Peak, 1000 W RMS
Low frequencies: 2000 W Peak, 1000 W RMS
Cooling: Convection
Connections: Powercon IN/OUT
Standard compliance CE compliance: Yes
Physical specifications Cabinet/Case Material: Baltic birch plywood
Hardware: 2X M20 TOP AND SIDE
8X M10 2X SIDE
Handles: 1 X SIDE
Grille: Steel
Color: Black
Size Height: 243.5 mm / 9.59 inches
Width: 603.5 mm / 23.76 inches
Depth: 430 mm / 16.93 inches
Weight: 20 kg / 44.09 lbs
