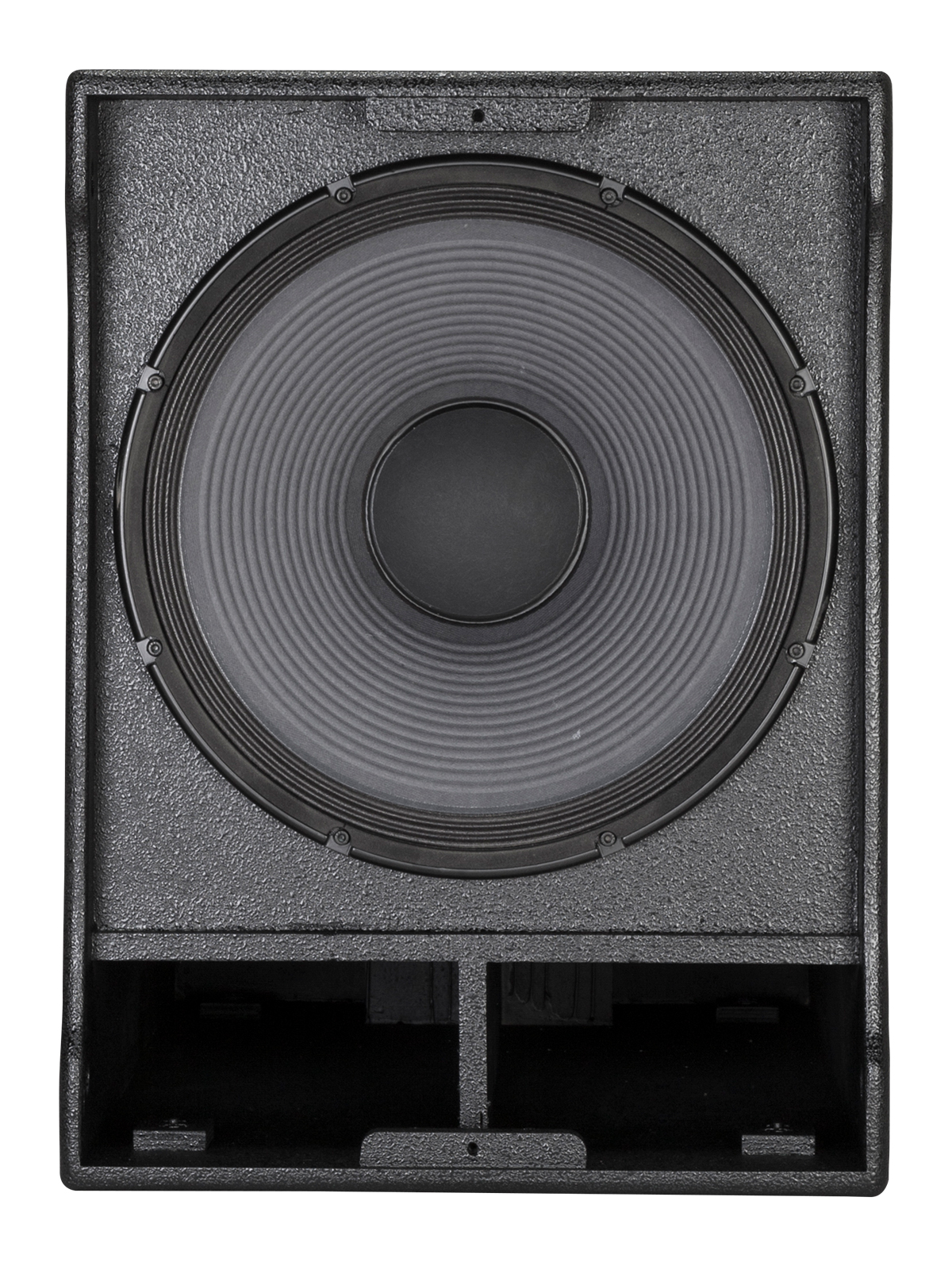

RCF's SUB 905AS-II active subwoofer is ideal for building powerful subwoofer satellite systems where compactness and high sound levels are required at the same time. The SUB 905-AS has the most advanced RCF woofer technology, coupled with a powerful 2200 W digital amplifier. It offers the perfect blend of bass reproduction, high SPL and compact dimensions for mobile use by bands or DJs.
2200 W
133 dB max SPL
40 Hz - 120 Hz frequency response
15" Woofer, 3.0" v.c.
Selectable gain, X-over and delay
Birch tour grade cabinet
Stereo XLR input, Stereo XLR signal output
ACOUSTICAL SPECIFICATIONS
Frequency Response -3 dB:40 Hz ÷ 120 Hz
Max SPL:133 dB
Woofer:15", 3.0" voice coil

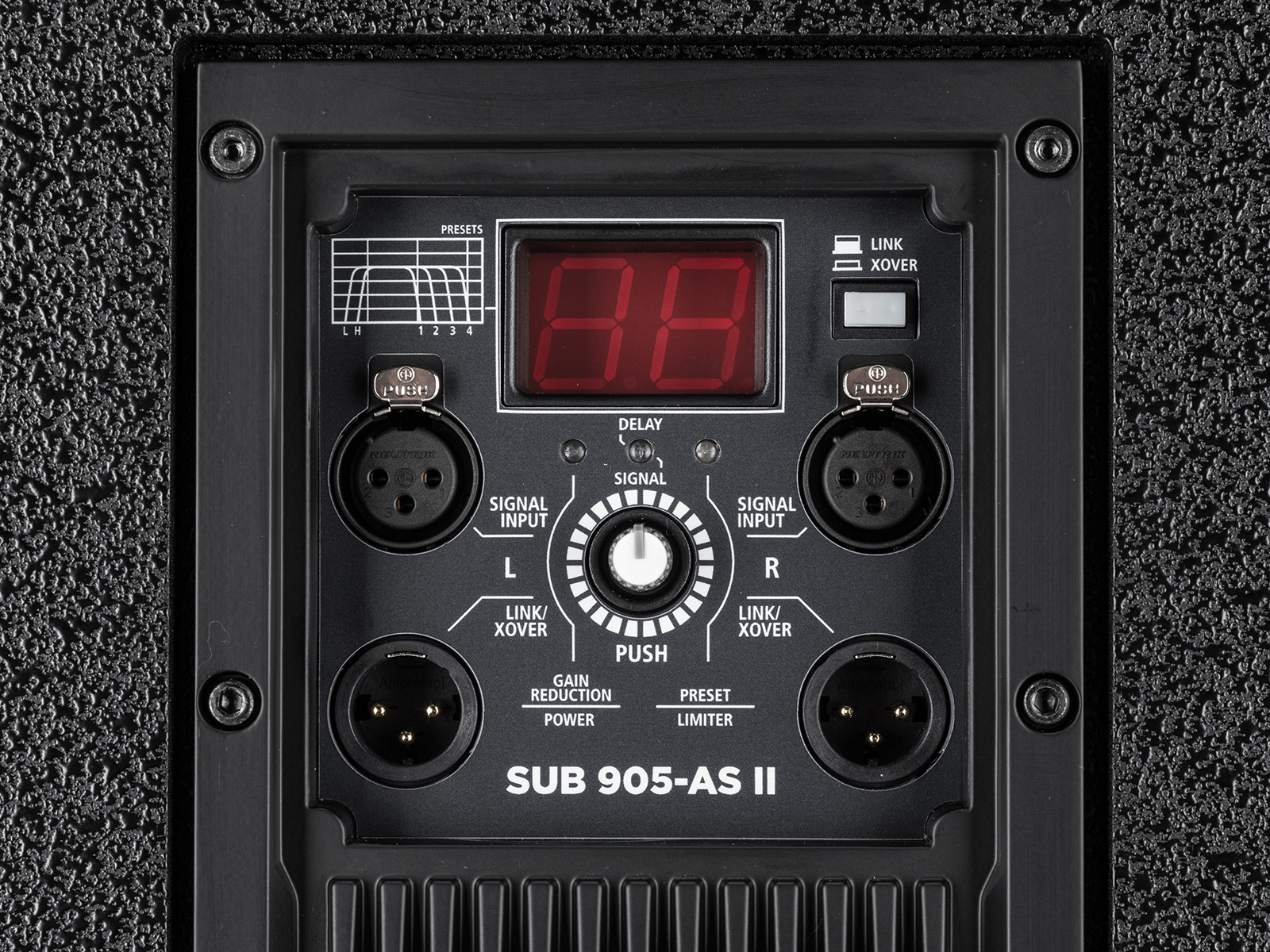

INPUT/OUTPUT SECTION
Input connectors:Stereo XLR
Output connectors:Stereo XLR
Input sensitivity:-2 dBu / + 4 dBu
PROCESSOR SECTION
Crossover frequencies:Selectable Hz
Protections:thermal, rms
Limiter:soft limiter
Controls:Gain,EQ, phase, xover, delay, cardioid
AMPLIFIER SPECIFICATIONS
Total power:2200 W PEAK
Low frequencies:2200 W PEAK
Total power:1100 W RMS
Low frequencies:1100 W RMS
Cooling:convection
Connections:Powercon in-out
CABINET
Cabinet Material:Baltic birch plywood
Handles:2 side
Pole Mount/Cap:Yes
Grille:steel
Colour:Black
PHYSICAL SPECIFICATIONS
Height:600/23.62 mm/inch
Width:445/17.52 mm/inch
Depth:610/24.02 mm/inch
Net Weight:31/68.34 kg/lbs
