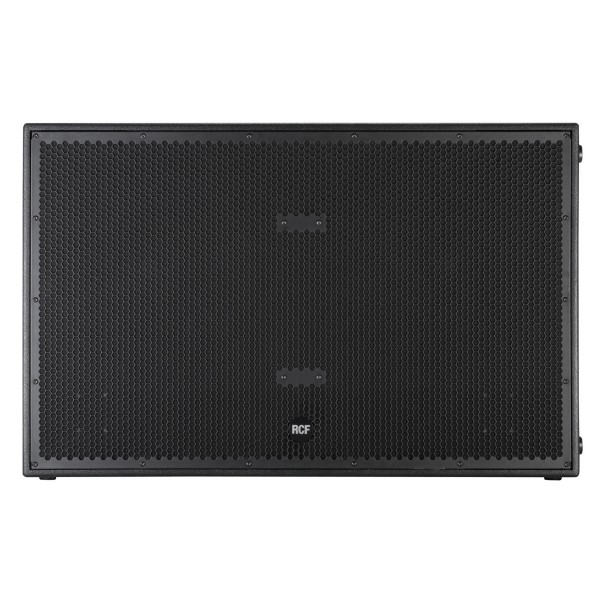

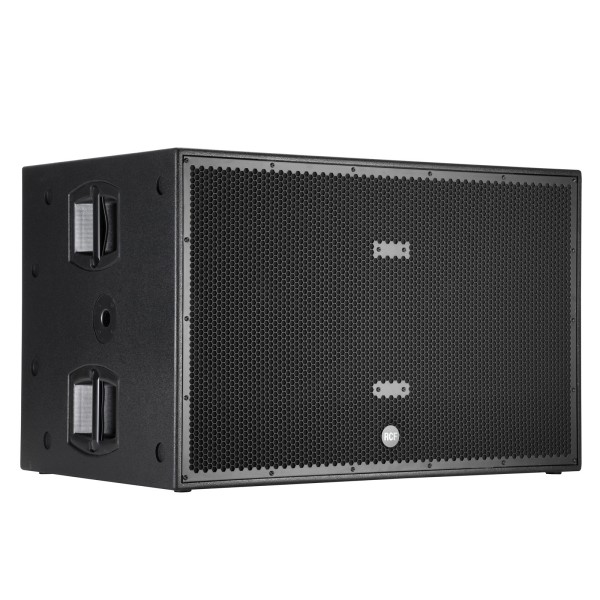

The RCF SUB8006AS is the largest and most powerful active sub woofer in the professional series.
Featuring two 18-inch transducers, with 4-inch inside/outside voice coils, this cabinet is designed to deliver a serious amount of low frequency energy.
Powered by a 2500W digital amplifier module, the SUB 8006-AS can perform in the most demanding situations.
RCF SUB8006AS Specification :
Features
5000 Watt Peak power - 2500 Watt RMS
141 dB max SPL
30 Hz - 120 kHz frequency response
2 x 18" Woofer
DSP controlled Input section with selectable presets
Delay control
Integrated mechanics for multiple configuration with HDL 20-A
Baltic birch tour grade cabinet
Acoustical Specifications
Frequency Response -3 dB: 30 Hz ÷ 120 kHz
Max SPL: 141 dB
Woofer: 2 x 18", 4.0" v.c.

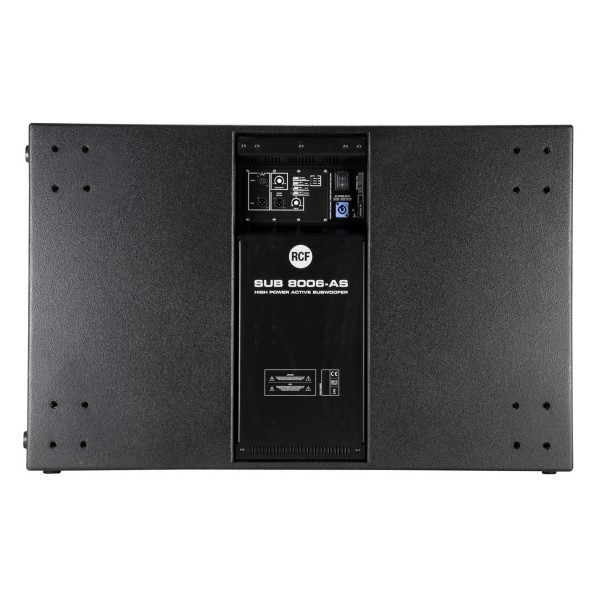

Input/Output Section
Input signal: bal/unbal
Input connectors: XLR
Output connectors: XLR
Input sensitivity: -2 dBu / +4 dBu
Processor Section
Crossover frequencies: Selectable 80 Hz - 100 Hz Hz
Protections: Thermal, RMS
Limiter: Fast limiter
Controls: Xover, Phase switch, Deep/Punch, Output Delay Settings, Cardioid
Amplifier Specifications
Total power: 2500 W
Low frequencies: 2500 W
Cooling: Convection
Connections: Powercon in/out
Cabinet
Cabinet Material: Baltic Birch
Hardware: Mounting points
Handles: 4 side
Colour: Black
Physical Specifications
Height: 709 / 27.91 mm/inch
Width: 700 / 27.5 mm/inch
Depth: 1109 / 43.66 mm/inch
Net Weight: 90 / 198.41 kg/lbs
