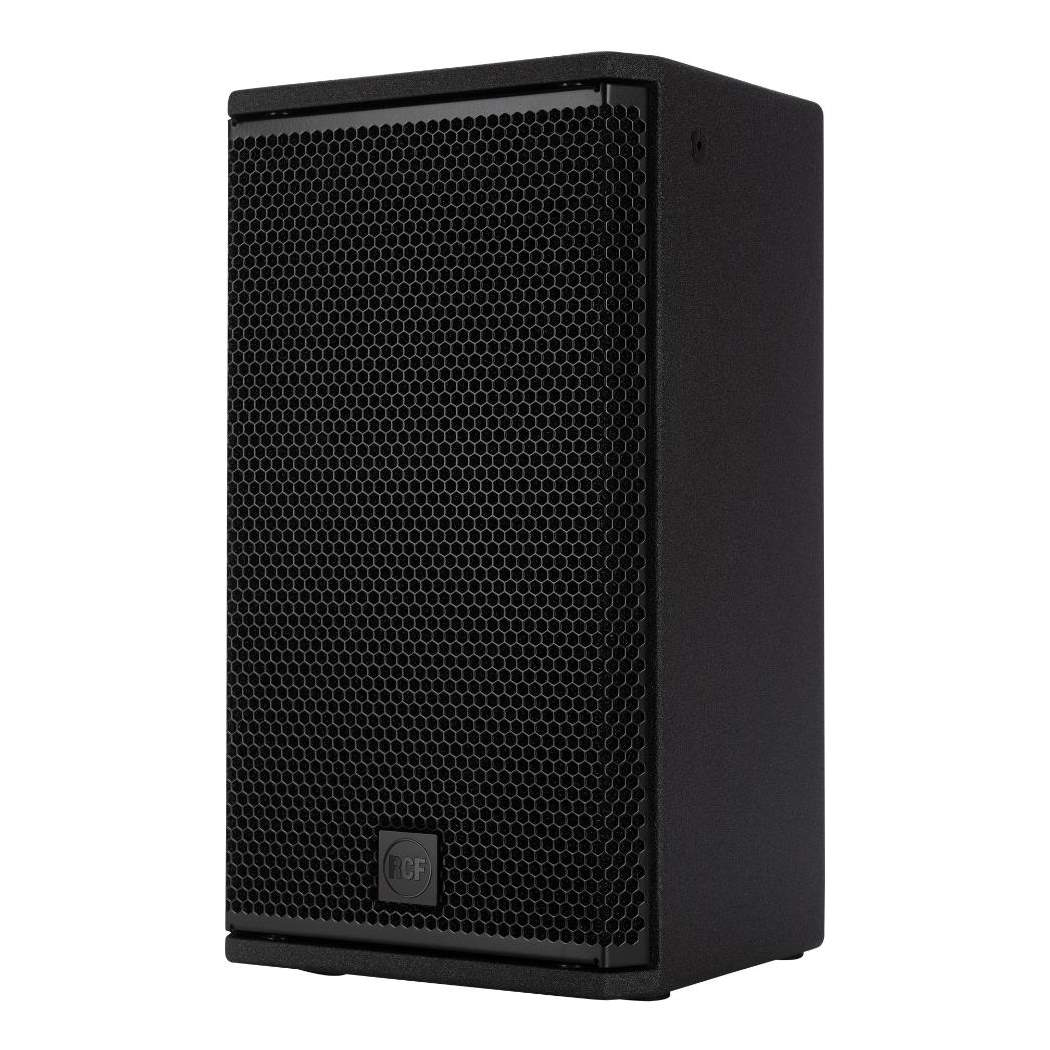

The RCF NX 910-A is masterfully engineered from the ground up to deliver stellar audio performance for solo musicians, bands, and DJs. The combination of 1.75" compression driver, 10" woofer, two-channel 2100W amplifier, and a constant directivity waveguide produces coherent 100° x 60° coverage for the listening area with up to 130 dB SPL of distortion-free sound.
Used as a stand-alone speaker for a FOH system, satellite (with subwoofer), stage monitor, or flown speaker, the NX 910-A blends high-performance and reliability in a compact package. Blending RCF proprietary FiRPHASE and Bass Motion Control DSP processing, NX 9 Series speakers are perfectly tuned for each model, delivering absolute clarity and deep, powerful bass response.
The tour-ready, rugged all-wood cabinet is easy to carry and secure to install on a pole-, flown-, wall-, or truss-mounted using the dedicated rigging points available.
ACOUSTICAL SPECIFICATIONS
Frequency Response: 50 Hz ÷ 20000 Hz
Max SPL @ 1m: 130 dB
Horizontal coverage angle: 100°
Vertical coverage angle: 60°
TRANSDUCERS
Compression Driver: 1 x 1.0'', 1.75'' v.c
Woofer:10'', 2.5'' v.c

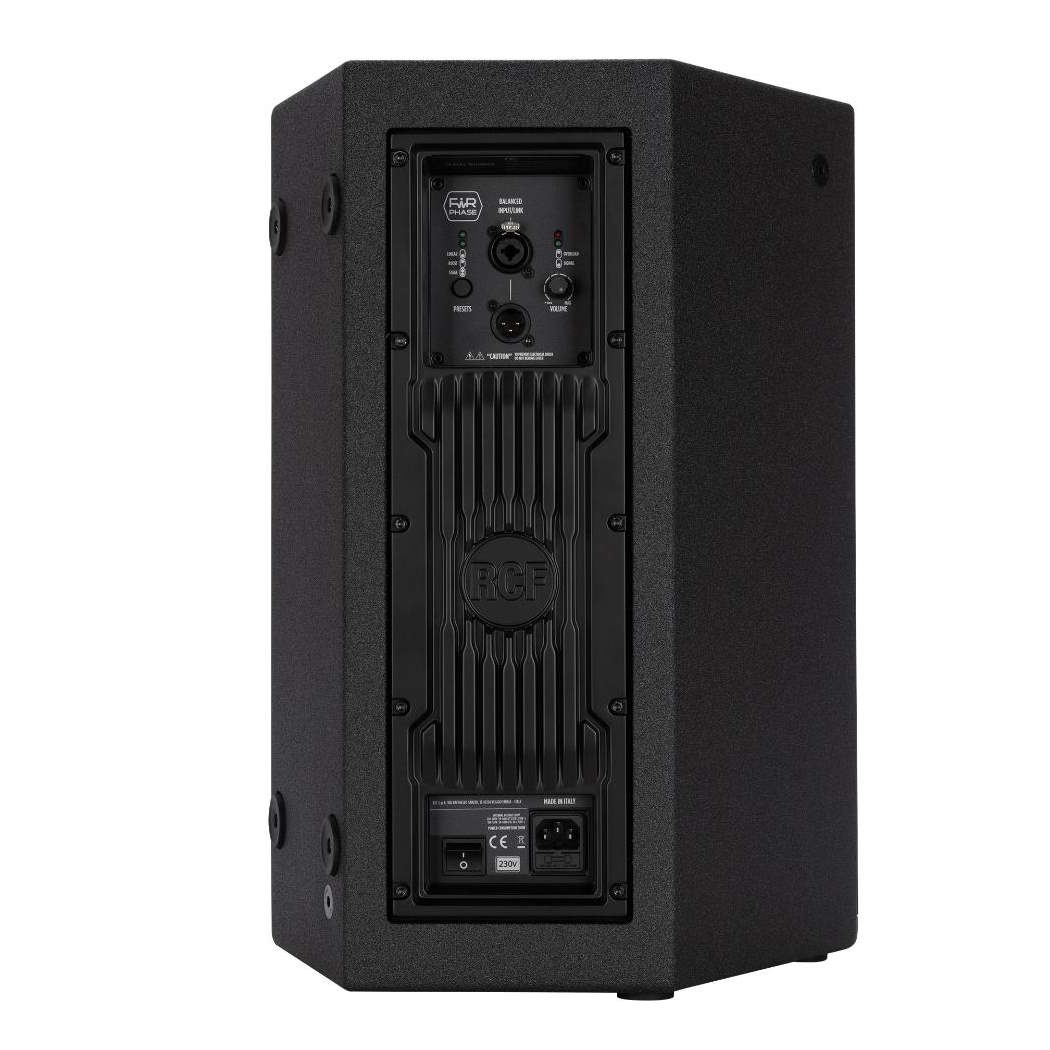

INPUT/OUTPUT SECTION
Input signal: bal/unbal
Input connectors: XLR, Jack
Output connectors:XLR
Input sensitivity:-2 dBu/+4 dBu
PROCESSOR SECTION
Crossover Frequencies: 1600 Hz
Protections:Thermal, RMS
Limiter:Soft Limiter
Controls:Linear, Boost, Stage, Volume
POWER SECTION
Total Power: 2100 W Peak
High frequencies:700 W Peak
Low frequencies:1400 W Peak
Cooling:Convection
Connections:VDE
STANDARD COMPLIANCE
Safety agency:CE compliant
PHYSICAL SPECIFICATIONS
Cabinet/Case Material:Plywood

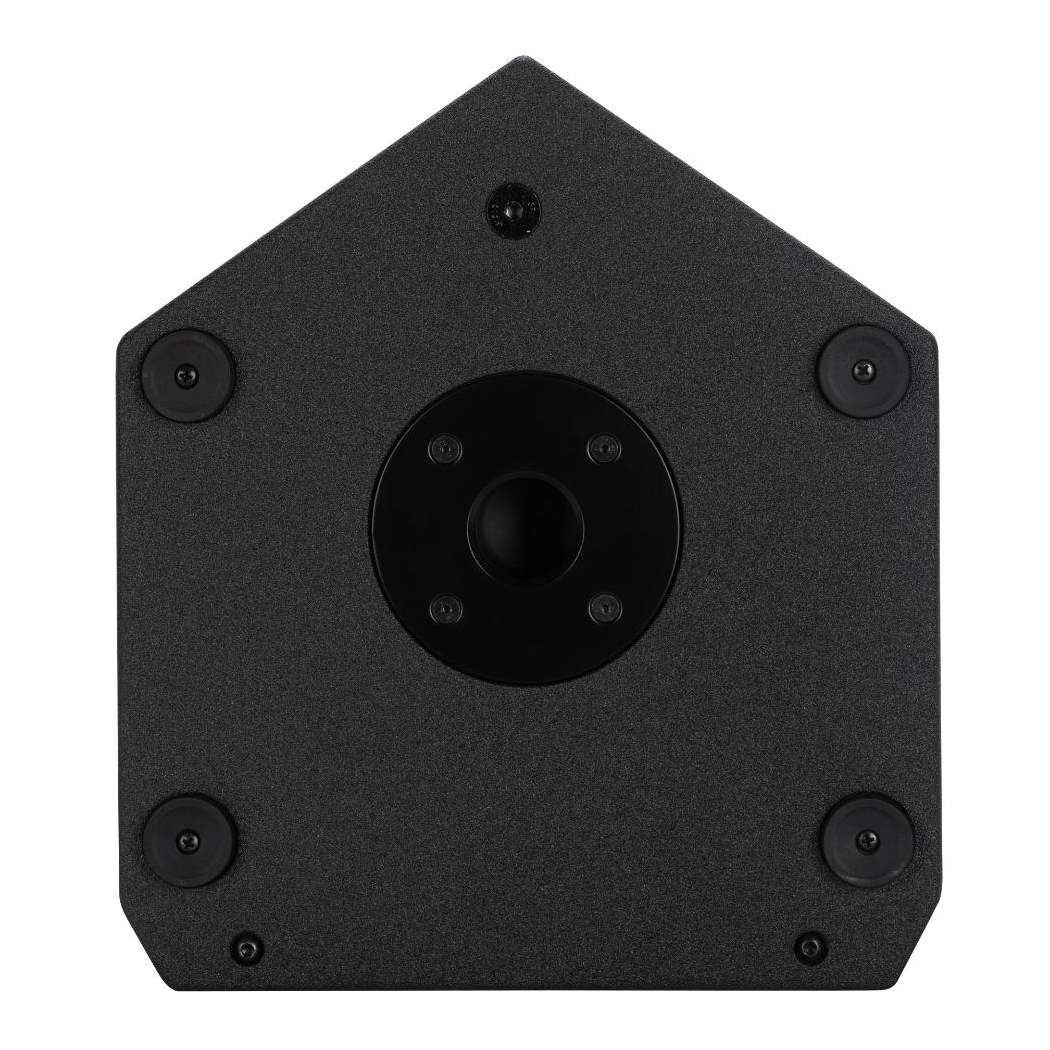

Hardware:2 x M10 Top, 1 x M10 each side, 1 x M10 bottom, 1 x M10 rear

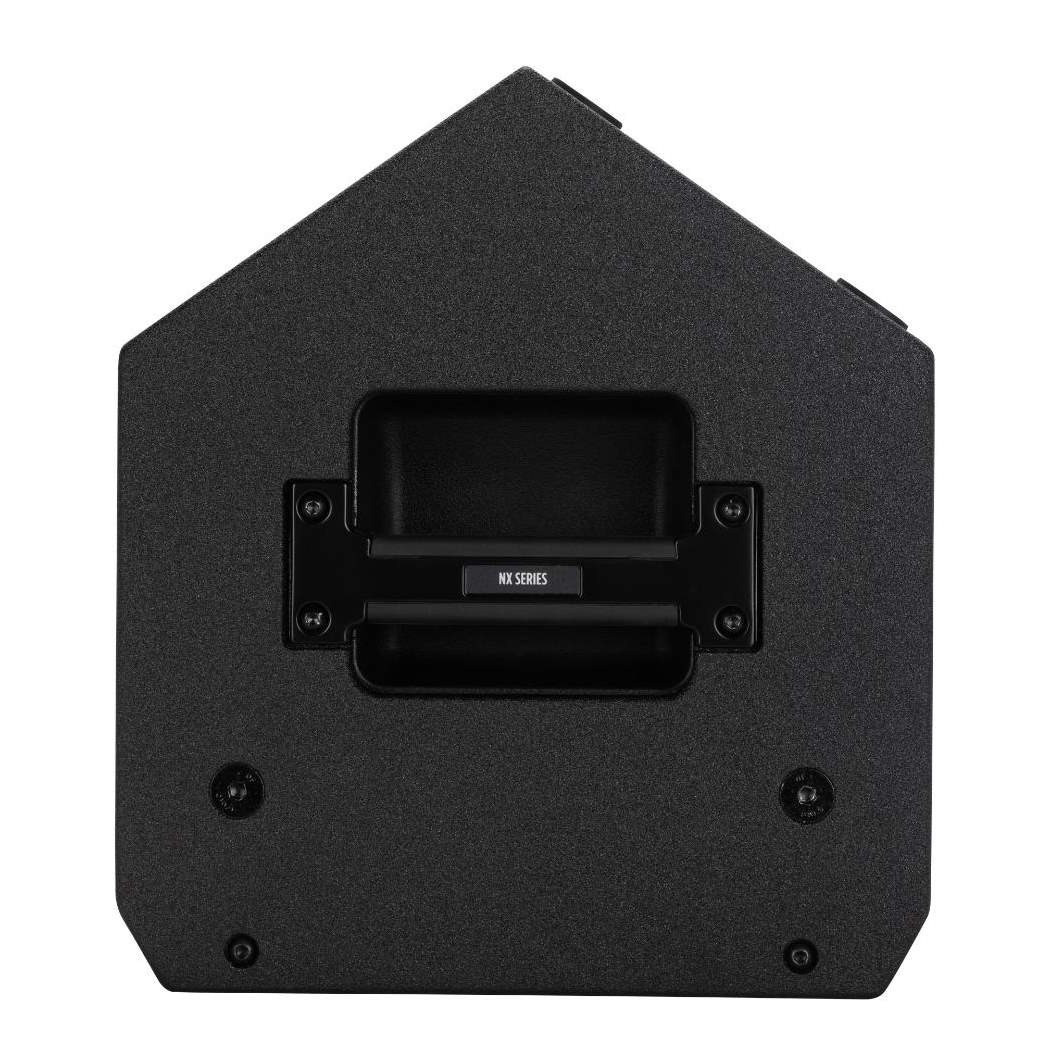

Handles:1 Top
Pole mount/Cap:Yes
Grille:Steel
Color:Black
SIZE
Height:510 mm / 20.08 inches
Width:295 mm / 11.61 inches
Depth:333 mm / 13.11 inches
Weight:16.4 kg / 36.16 lbs
SHIPPING INFORMATION
Package Height:556 mm
Package Width:388 mm
Package Depth:348 mm
Package Weight:18.1 kg
