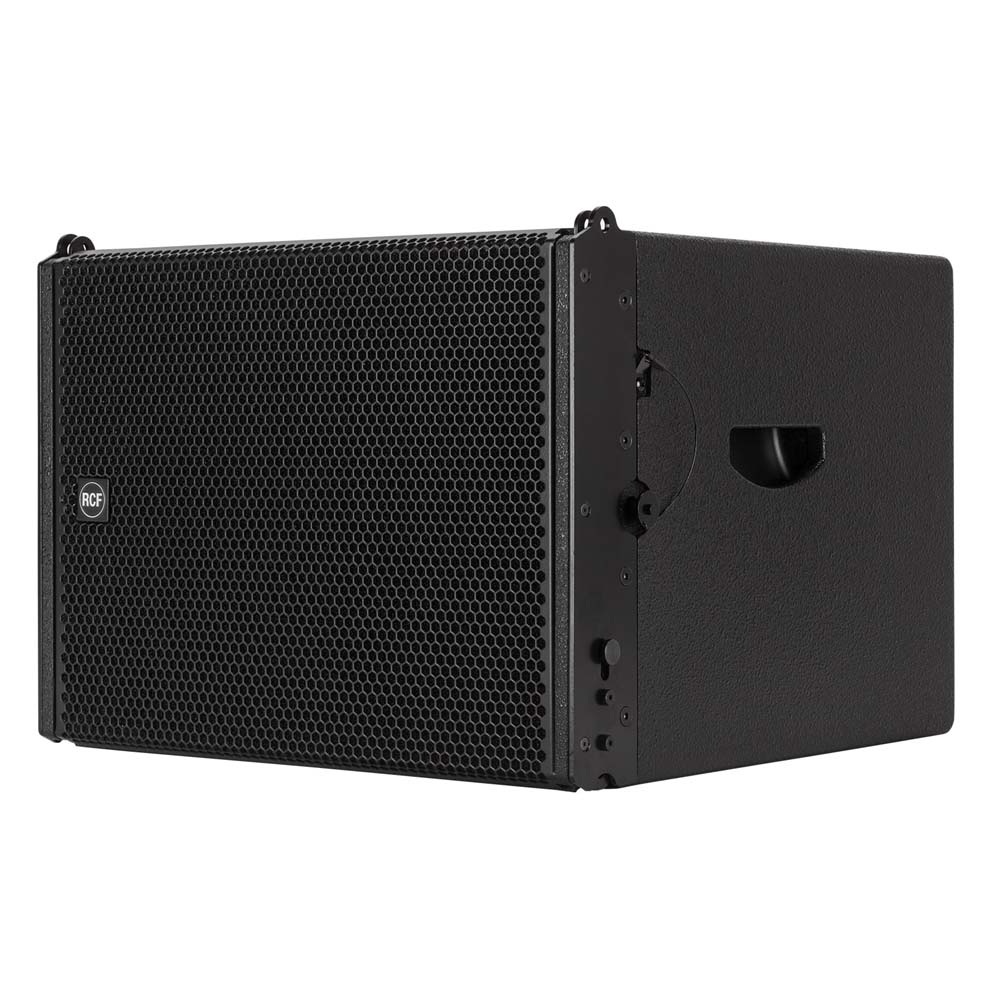

The HDL 12-AS is the companion subwoofer for HDL 6-A. Housing a 12” woofer, the HDL 12-AS, is a very compact active sub enclosure and features a 1400 W powerful digital amplifier. It is the ideal complement to create flown HDL 6-A clusters with outstanding performance. It features a built-in digital stereo crossover (DSP) with adjustable crossover frequency to connect the HDL 6-A line array module or a satellite. The integrated mechanics are both fast and reliable. The heavy-duty front grille is power coated. A special transparent-to-sound foam backing inside helps the further protection of the transducers from dust.
Features
1400 Watt Peak power - 700 Watt RMS
131 dB max SPL
40 Hz - 120 Hz frequency response
1 x 12" Woofer
Stereo crossover
Switchable crossover frequencies
Designed to compliment the HDL 6-A speaker system
Polarity reverse switch
Acoustical Specifications
Frequency Response -3 dB:
40 Hz ÷ 120 Hz
Max SPL:
131 dB
Woofer:
12", 3.0" v.c.
Input/Output Section
Input signal:
bal/unbal
Input connectors:
XLR
Output connectors:
XLR
Input sensitivity:
-2 dBu / +4 dBu
Processor Section
Protections:
Thermal, RMS
Limiter:
Soft limiter
Controls:
Volume, EQ shape, Xover
Amplifier Specifications
Total power:
1400 W PEAK
Low frequencies:
1400 W PEAK
Total power:
700 W RMS
Low frequencies:
700 W RMS
Cooling:
Convection/forced
Connections:
Powercon in/out
Cabinet
Cabinet Material:
Baltic Birch
Hardware:
Rigging flyware
Handles:
2 side
Colour:
Black
Physical Specifications
Height:
379 / 14.9 mm/inch
Width:
470 / 18.5 mm/inch
Depth:
508 / 20 mm/inch
Net Weight:
24 / 50.9 kg/lbs
