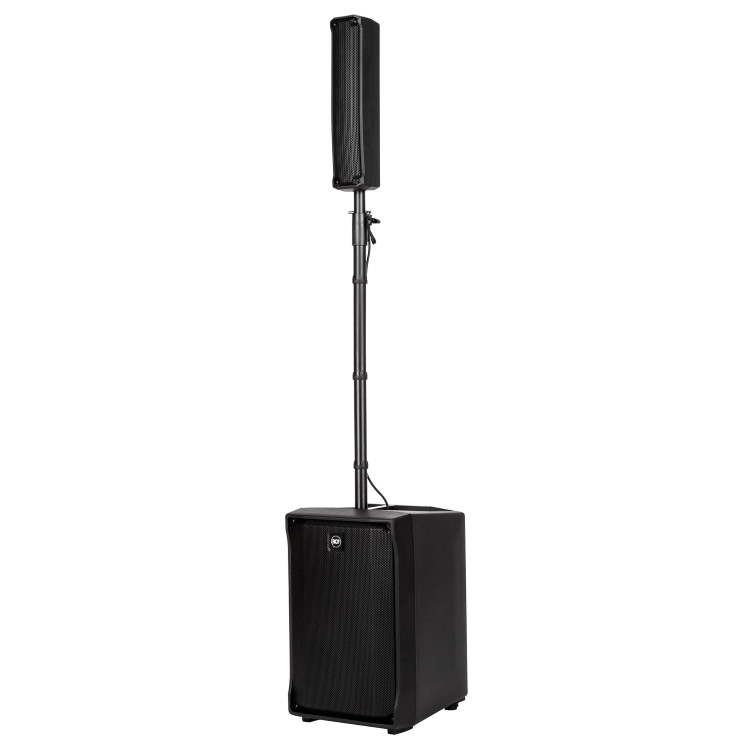

The RCF J8 features a line source satellite module with eight 2” full-range drivers paired with a high-powered 12” woofer in a bass reflex enclosure. All powered by on-board 1400 W Class D amplification. The EVOX J Series maintains a similar footprint to the original EVOX systems, now in a portable composite enclosure. The system offers stunning sound performance with crystal-clear vocal reproduction and unparalleled musical response.
128 dB Max SPL
1400 Watt 2-way power
DSP Processing with FiRPHASE
12" woofer, high power 2.5" voice coil
8 x 2" ultra compact fullrange 1.0" voice coil
2350x350x450 mm (HxWxD)
23,8 kg
Acoustical specifications
FREQUENCY RESPONSE:
40 Hz ÷ 20000 Hz
MAX SPL @ 1M:
128 dB
HORIZONTAL COVERAGE ANGLE:
120°
VERTICAL COVERAGE ANGLE:
30°
Transducers
FULLRANGE:
8 x 2.0'', 1.0'' v.c
WOOFER:
12'', 2.5'' v.c

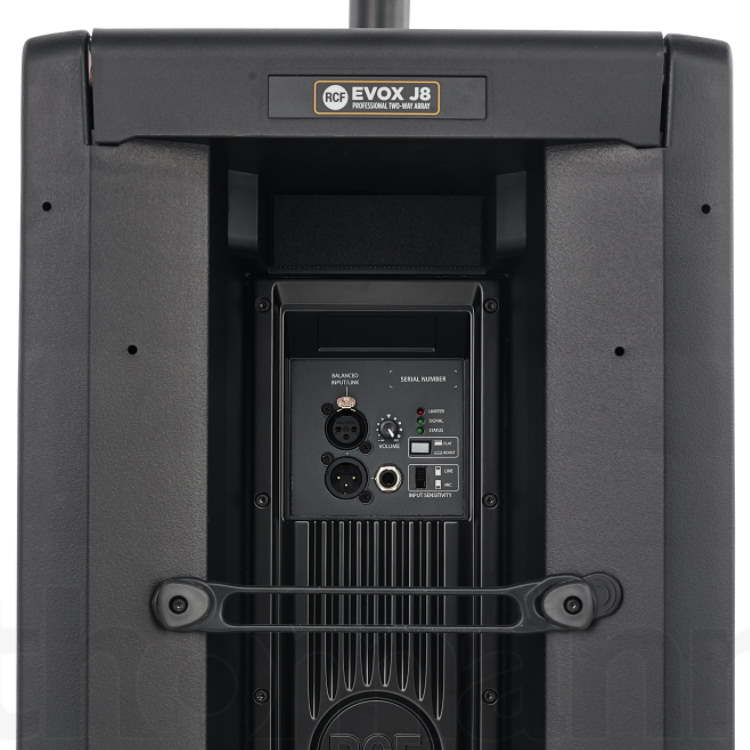

Input/Output section
INPUT SIGNAL:
bal/unbal
INPUT CONNECTORS:
XLR, Jack
OUTPUT CONNECTORS:
XLR
INPUT SENSITIVITY:
-2 dBu/+4 dBu
Processor section
CROSSOVER FREQUENCIES:
220 Hz
PROTECTIONS:
Thermal, RMS
LIMITER:
Soft Limiter
CONTROLS:
Volume, Boost, Mic/Line
Power section
TOTAL POWER:
1400 W Peak, 700 W RMS
HIGH FREQUENCIES:
400 W Peak, 200 W RMS
LOW FREQUENCIES:
1000 W Peak, 500 W RMS
COOLING:
Convection
CONNECTIONS:
VDE
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
PP Composite
HANDLES:
1 Top
GRILLE:
Steel
COLOR:
Black, White
Size
HEIGHT:
2285 mm / 89.96 inches
WIDTH:
400 mm / 15.75 inches
DEPTH:
460 mm / 18.11 inches
WEIGHT:
20.2 kg / 44.53 lbs
