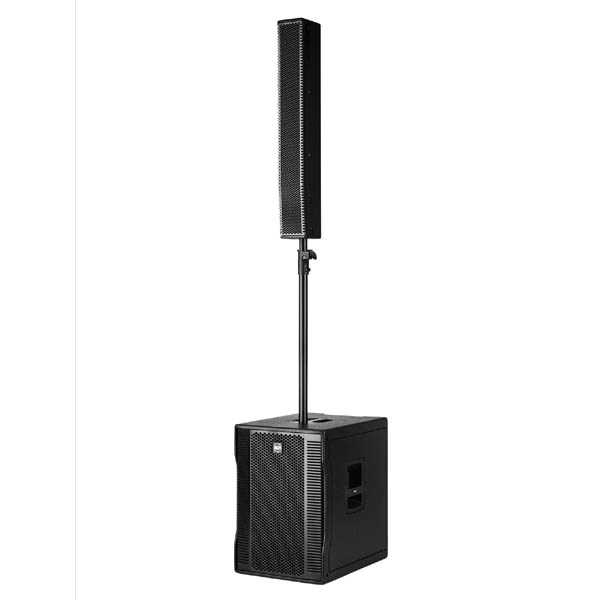

EVOX 12 is the most powerful line-source in its class and offers a particularly profound and dynamic reproduction at high levels due to the built-in 1400W power amplifier. The top section has eight high performance neodymium 4 inch full-range transducers with a phase plug. As a result, the EVOX 12 has a significantly increased low-mid playback at a constant level with a wide dispersion for the highs. The 15 inch subwoofer delivers powerful bass sound to reinforce a big party or the kick drum of a live band. Despite high performance, the enclosure is very compact, and thanks to integrated wheels and extendable handle very easy to transport.
FEATURES
1400 Watt
130 dB max SPL
40 Hz 20 kHz frequency response
15" Woofer
8 x 4" neodymium full-range woofer
90° x 30° slightly tilted pattern control
Innovative DSP processing
Pole mountable, easy set-up and transportation
ACOUSTICAL SPECIFICATIONS
Frequency Response -3 dB:40 Hz ÷ 20 Hz
Max SPL:130 dB
Horizontal coverage angle:90°
Vertical coverage angle:30°
Fullrange:8x4.0", 1.0"v.c.
Woofer:15", 3.0" v.c.
INPUT/OUTPUT SECTION
Input connectors:Jack-XLR male
Output connectors:XLR female
Input sensitivity:-2 dBu / + 4 dBu
PROCESSOR SECTION
Crossover frequencies:180 Hz
Protections:thermal, rms
Limiter:Soft limiter
Controls:Volume, EQ
AMPLIFIER SPECIFICATIONS
Total power:1400 W PEAK
High frequencies:400 W PEAK
Low frequencies:1000 W PEAK
Total power:700 W RMS
High frequencies:200 W RMS
Low frequencies:500 W RMS
Cooling:Convection
Connections:VDE connector
CABINET
Cabinet Material:Baltic birch plywood
Handles:2 side, 1 top
Pole Mount/Cap:Yes
Colour:black
PHYSICAL SPECIFICATIONS
Height:2220/87.4 mm/inch
Width:410/16.14 mm/inch
Depth:560/22.05 mm/inch
Net Weight:36.4/80.24 kg/lbs ( Sub only approx 29KG, Speaker only approx 7.5KG )
