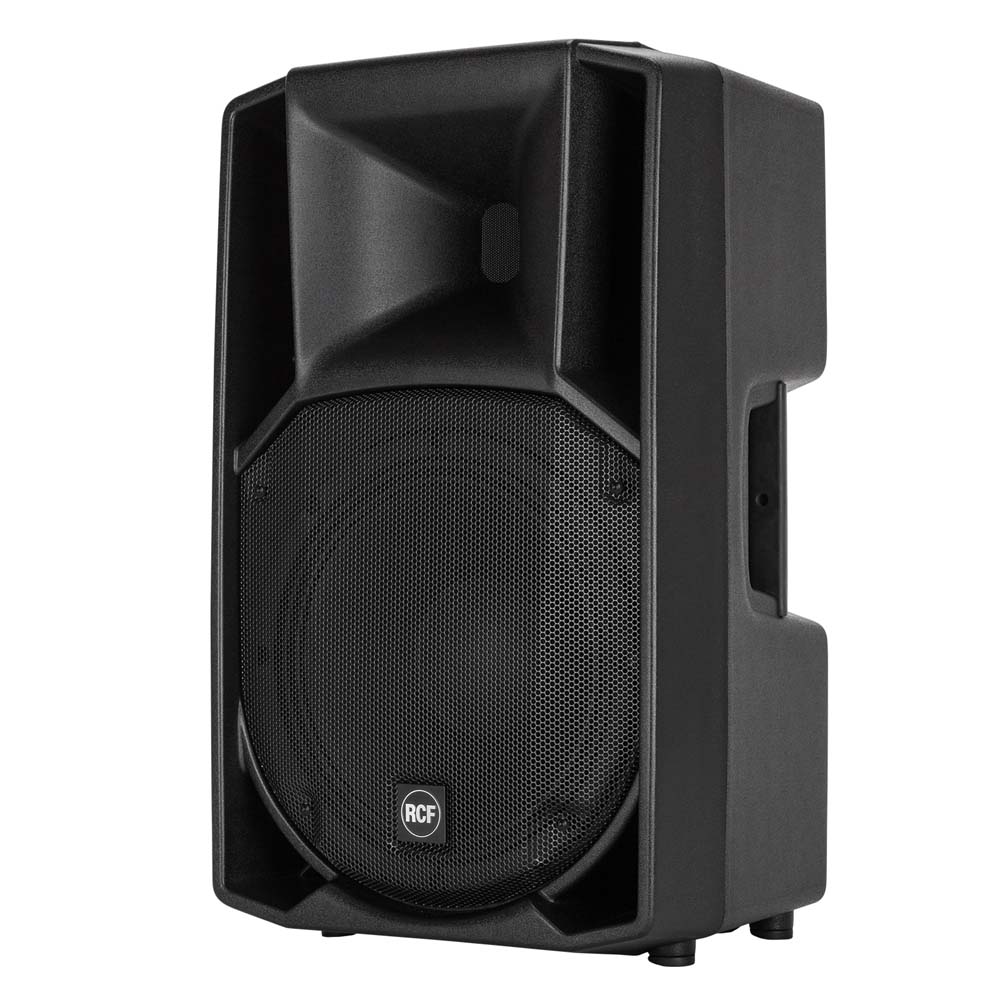

The ART 732-A is a unique speaker in its category. The titanium dome, 3.0" voice coil neodymium compression driver offers a unique vocal clarity and sound projection. The 12 inch neodymium woofer offers an extremely linear response and a precise, deep low frequency control. The transducers are produced using the most advanced assembly technologies. The amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalisation, phase control, soft limiting and speaker protections.
Features
131 dB Max SPL
1400 WATT 2-way peak power
Innovative DSP Processing
1.4" Titanium Compression Driver, 3.0" v.c. Neodimium
12" Woofer
700 Hz crossover point for perfect vocal reproduction
90°x60°, wide dispersion constant directivity horn
FiRPHASE Technology
Acoustical Specifications
Frequency Response -3 dB:
50 Hz ÷ 20000 Hz
Max SPL:
131 dB
Horizontal coverage angle:
90°
Vertical coverage angle:
60°
Compression Driver:
1.4", 3.0" v.c.
Woofer:
12", 2.5" v.c.
Input/Output Section
Input signal:
Bal/unbal
Input connectors:
XLR, Jack
Output connectors:
XLR
Input sensitivity:
-2 dBu / +4 dBu
Processor Section
Crossover frequencies:
700 Hz
Protections:
Thermal, rms
Limiter:
Soft limiter
Controls:
Volume, EQ shape
Amplifier Specifications
Total power:
1400 W PEAK
High frequencies:
400 W PEAK
Low frequencies:
1000 W PEAK
Total power:
700 W RMS
High frequencies:
200 W RMS
Low frequencies:
500 W RMS
Cooling:
Convection / forced
Connections:
VDE connector in
Cabinet
Cabinet Material:
Composite PP
Hardware:
2xM10 flying p.
Handles:
2 side, 1 top
Pole Mount/Cap:
Yes
Colour:
Black
Physical Specifications
Height:
637 / 25.07 mm/inch
Width:
384 / 15.11 mm/inch
Depth:
363 / 14.29 mm/inch
Net Weight:
17.8 / 39.24 kg/lbs
