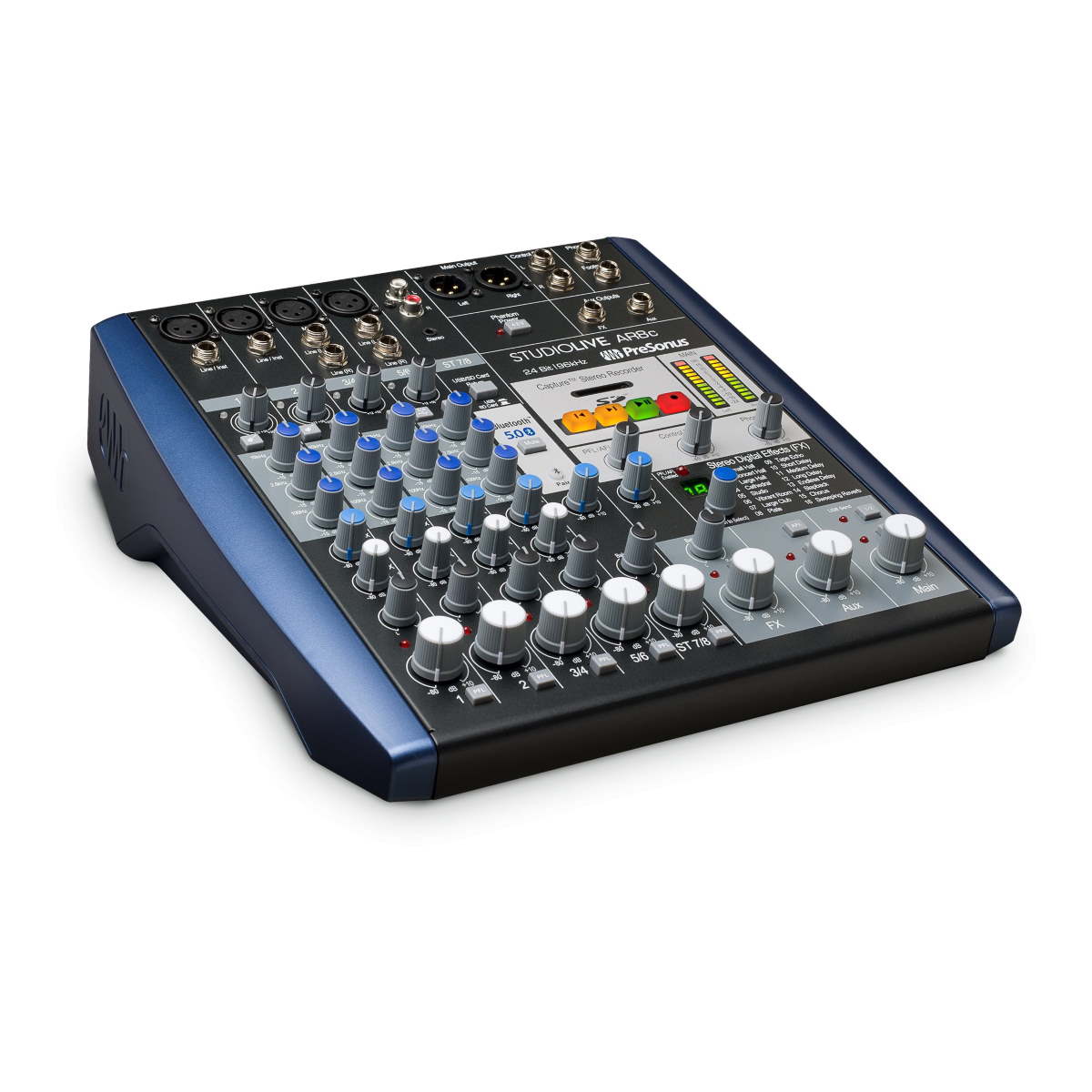

With its instantly familiar analog mixer design, the StudioLive® AR8c is the easiest way to record podcasts, live streams, and music productions. Featuring a pristine analog front-end with four high-gain XMAX mic preamps and an 8x4 24-bit, 96 kHz, USB-C compatible USB 2.0 audio interface, the StudioLive AR8c’s hybrid design makes it simple to record from a single intuitive console. Add in tools like a musical 3-band analog EQ, mic/line boost for low-level broadcast microphones and consumer devices, Bluetooth® connectivity, and a stereo SD recorder... and you have a broadcasting and recording powerhouse that fulfills the needs of both modern musicians and content creators.
Recording
8x4 24-bit/96 kHz, USB 2.0 (over USB-C™ connection) audio recording interface
Record every channel plus the main mix
2x2 SD recorder to capture the main mix
Supports SD™ and SDHD™ formats up to 32 GB
Mixing

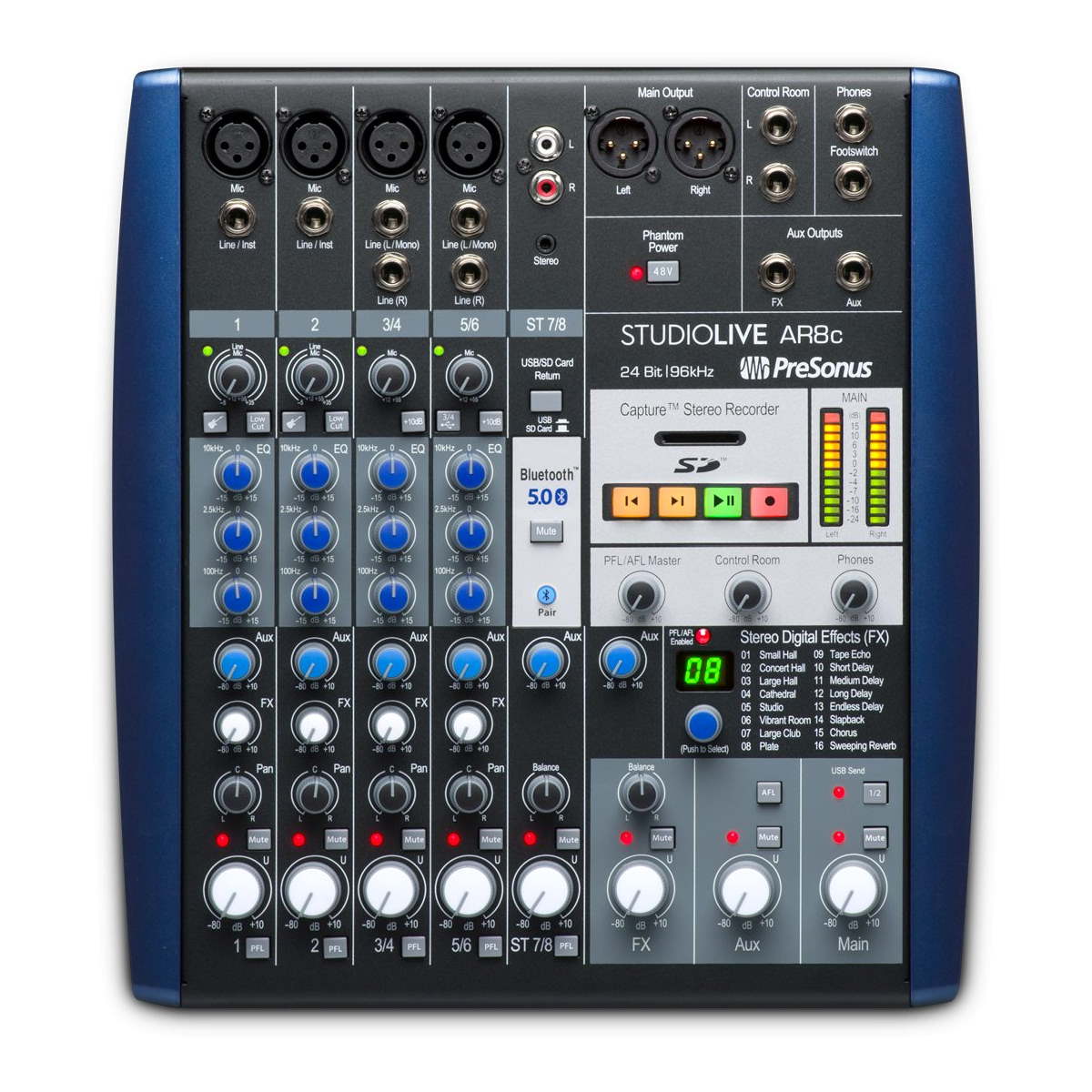

8-channel analog mixer
4 balanced microphone inputs with XMAX mic preamps
2 instrument/line inputs
6 balanced line level inputs:
2 mono
2 stereo pairs
Stereo Super Channel (Ch. 13/14) with Bluetooth 5.0 input, RCA inputs, 1/8-inch stereo input, and switchable SD/USB stereo playback
2 mono and 2 stereo channels, each with level knob, pan, mute, PFL solo, highpass filter, and 3-band semi-parametric EQ
1 monitor buses with dedicated channel sends, AFL solo, and balanced TRS output
L/R Control Room outputs with level control
Headphone output with level control
Signal Processing
Highpass filter on every channel
3-band semi-parametric EQ on every channel
Stereo effects processor with 16 presets, dedicated send and return, and bypass footswitch jack
Mic/line boost on stereo channels for low-level input sources and consumer devices
Included Software
Capture™ live multitrack recording software
Studio One ® Artist recording and production software (DAW)
Studio Magic plug-in suite

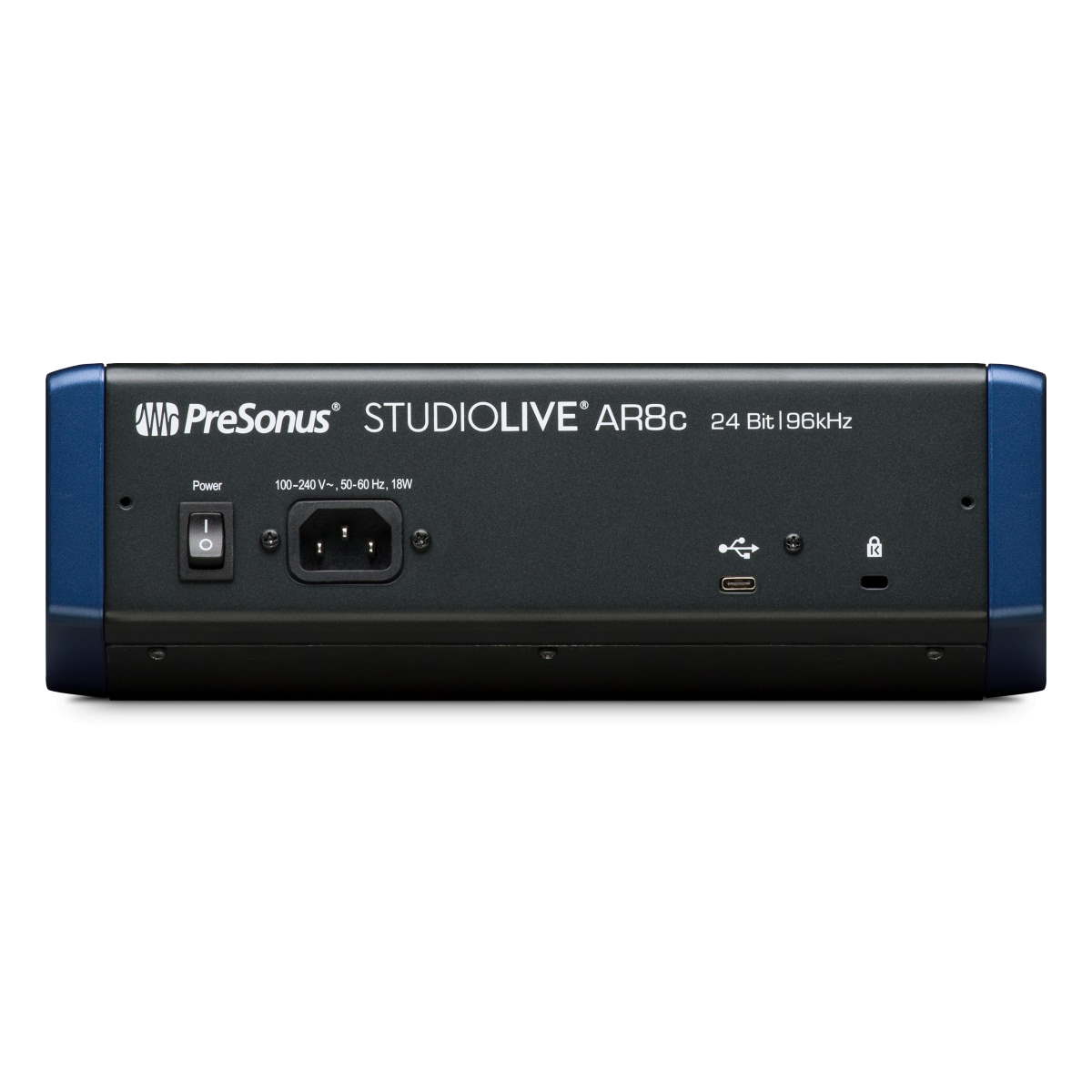

Power
Internal power supply
Standard IEC power connector
Physical
Sturdy metal construction
Optional rackmount kit
