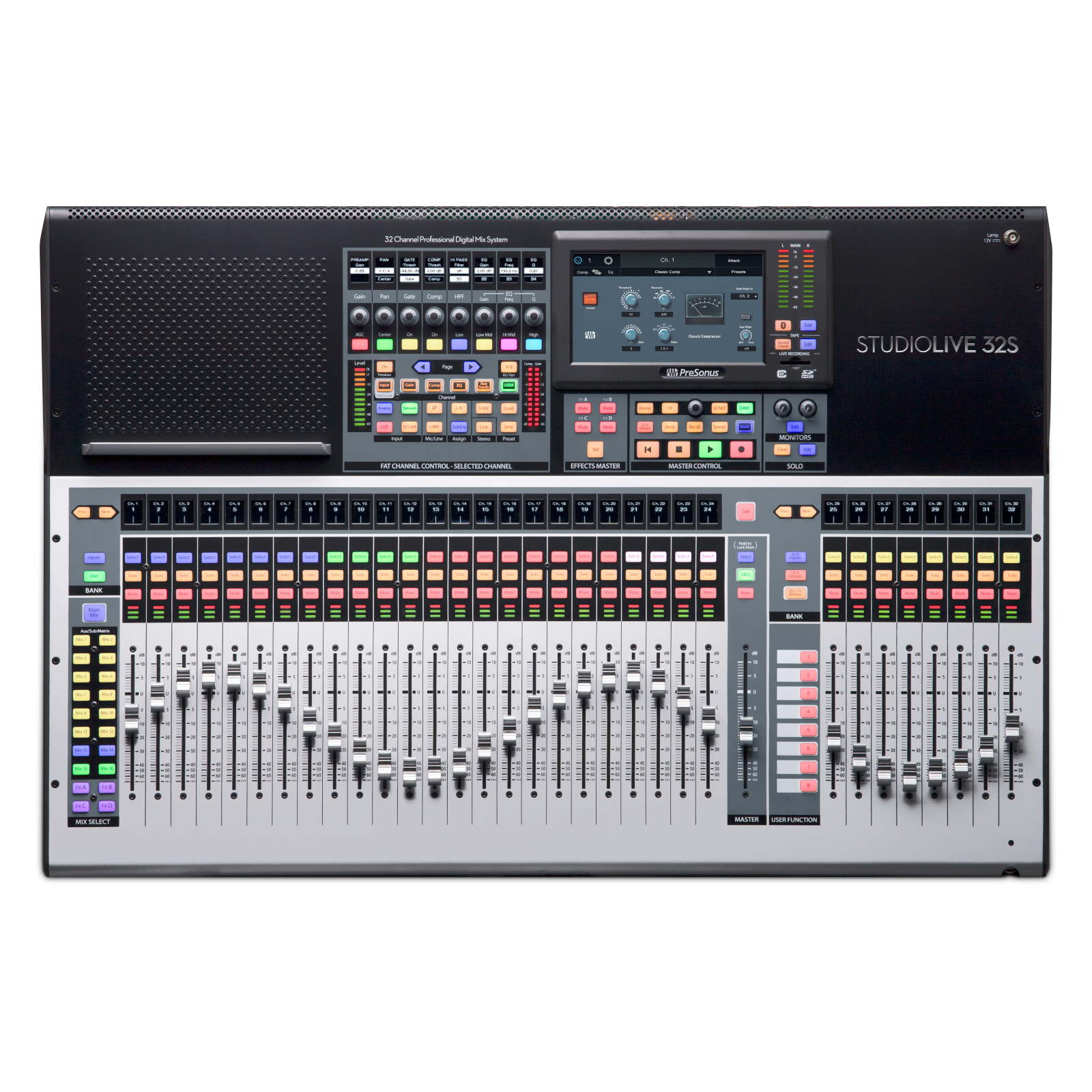

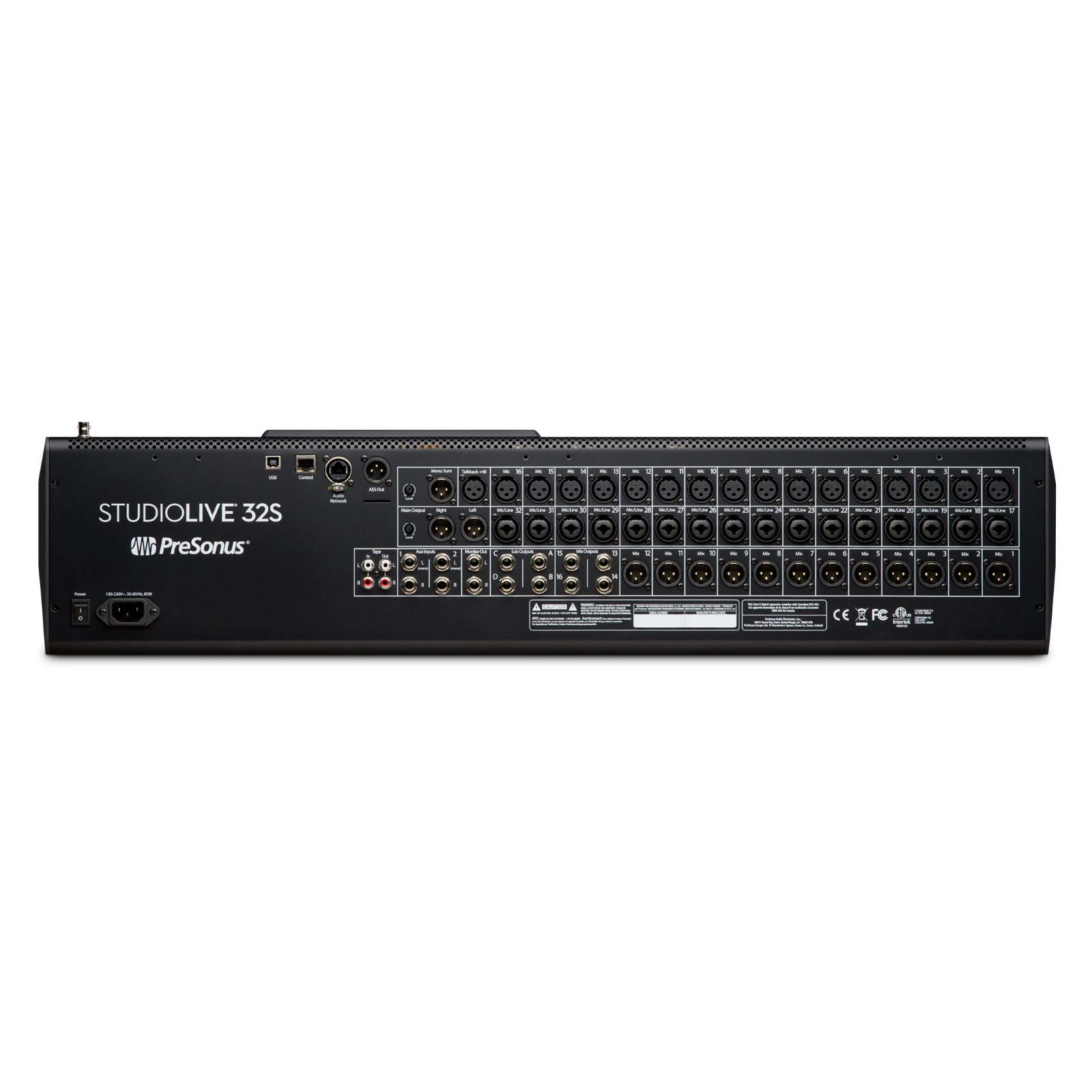

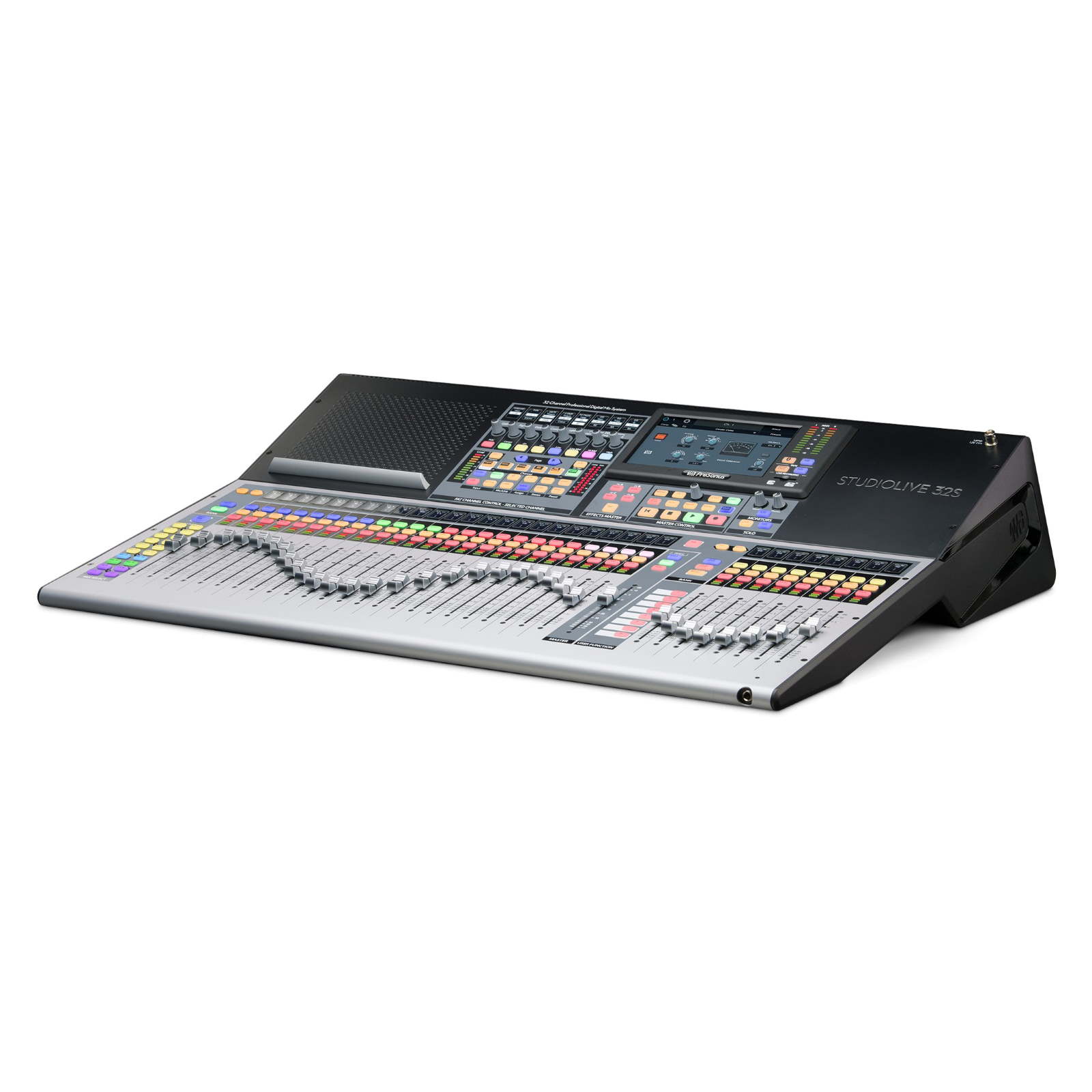

The StudioLive® 32S is a powerful 32-channel mixer that provides the ultimate mixing experience, packing large-format features into a small-format chassis. Powered by the dual-core PreSonus® FLEX DSP Engine, the StudioLive 32S digital mixer is equipped with 40 mixing channels, 26 mix buses, and 286 simultaneous processors—including 4 stereo reverberation systems—and Fat Channel plug-in models on every input channel and mix bus. With 128 (64x64) channels of USB recording, 128 channels of AVB network audio I/O, flexible routing options, and studio-grade audio quality, the StudioLive 32S delivers a fast and intuitive, surface-driven workflow for total control. Spend less time menu-diving and more time mixing—hands-on.
Powered by the new dual-core PreSonus® FLEX DSP Engine to provide the most processing of any digital mixer in its class
40 input-channel digital mixer with 33 touch-sensitive motorized faders
32 local digitally controlled XMAX mic/line inputs
2 balanced stereo aux inputs
1 stereo tape input (RCA, Bluetooth™ connectivity, USB, AVB, or SD)
4 FLEX FX returns
1 Talkback
26 mix buses
16 FlexMixes (Aux, Subgroup, Matrix)
4 dedicated FLEX FX buses
4 dedicated subgroups
Stereo Main bus
286 simultaneous processors
HPF
Gate/Expander
Compressor with Fat Channel plug-in models
4-band/6-band parametric EQ with Fat Channel plug-in models
Limiter
31-band graphic EQ
4 FLEX FX slots featuring legendary classic reverb emulations and delays
State Space Modeled Fat Channel compressor and EQ plug-ins available on every input channel and output bus
FLEX FX multi-effects processor with 4 slots to load legendary reverb emulations and delays with 4 dedicated effects buses
24 DCAs to control groups of channels
128-channel (64x64) recording over USB
Onboard multi-channel SD recorder (34x34) with true Virtual Soundcheck mode
AVB networking onboard (64x64) to connect with other mixers, NSB-series stage boxes, EarMix 16M personal monitor mixers, and more
User Profiles for managing multiple operators with custom permissions
Per-channel digital patching from any analog, AVB, USB, or SD Card source
DAW Control
Advanced Studio One® control integration
MCU emulation mode optimized for Logic
HUI emulation mode optimized for Pro Tools
Remote control every mix function from your computer, iPad®, or Android™ tablet with UC Surface (included)
Put your musicians’ monitor mix under their fingers with QMix®-UC (included) for iOS® or Android
Capture® 3.0 multitrack software included
Automated Virtual Soundcheck
Store StudioLive mix scenes with your audio
Advanced Studio One integration (Studio One Artist Included)
XMAX mic preamp control from Studio One
Control Fat Channel parameters from Studio One mixing console
