The PreSonus EarMix 16M is an advanced 16-channel personal monitor mixer designed to provide a high-quality, expandable, networked monitoring solution for stage, installed sound systems, and studio recording. We gave the EarMix 16M professional sound quality, easy-to-use mixing features, and a high-performance headphone amplifier, to ensure you have the monitoring tools you need for any situation.

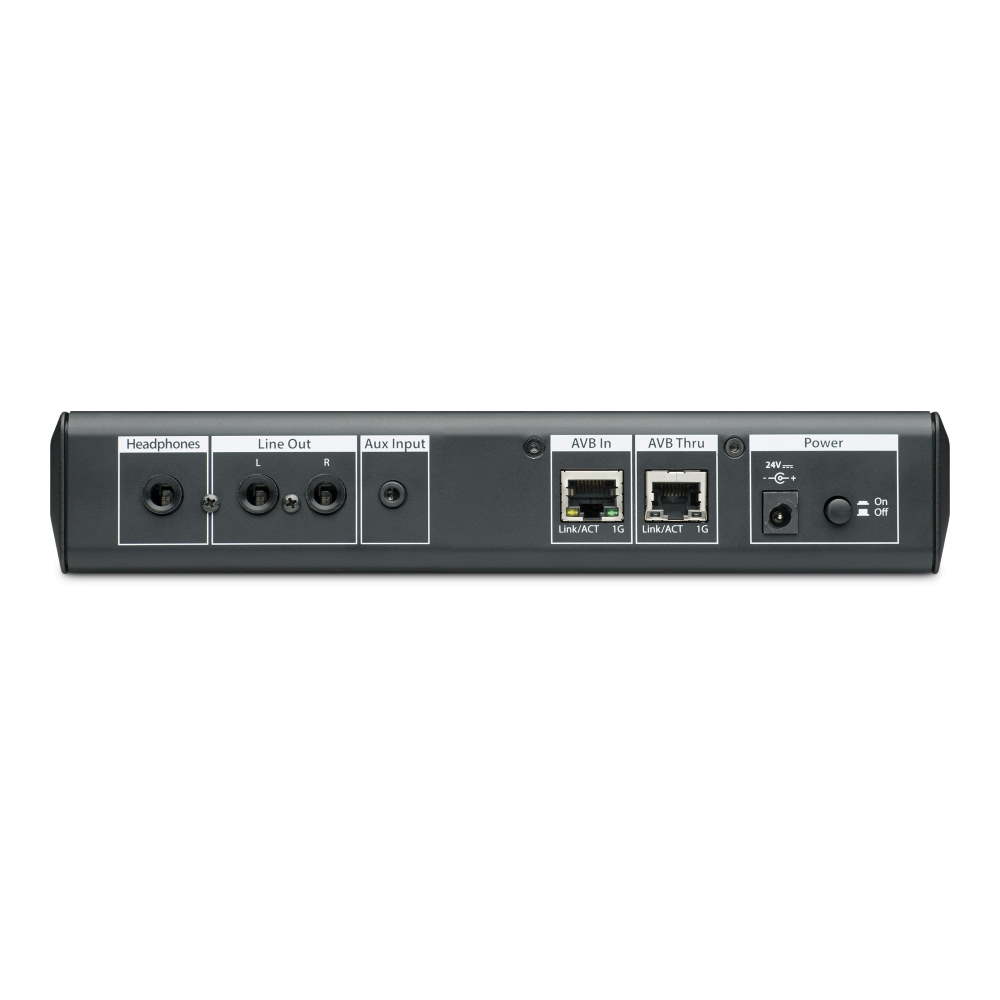

Analog Input/Output
1/8-inch stereo aux input
2 Balanced ¼-inch TRS line outputs
¼-inch TRS stereo headphone output with loud, clear headphone amp that can drive low-impedance in-ear monitors

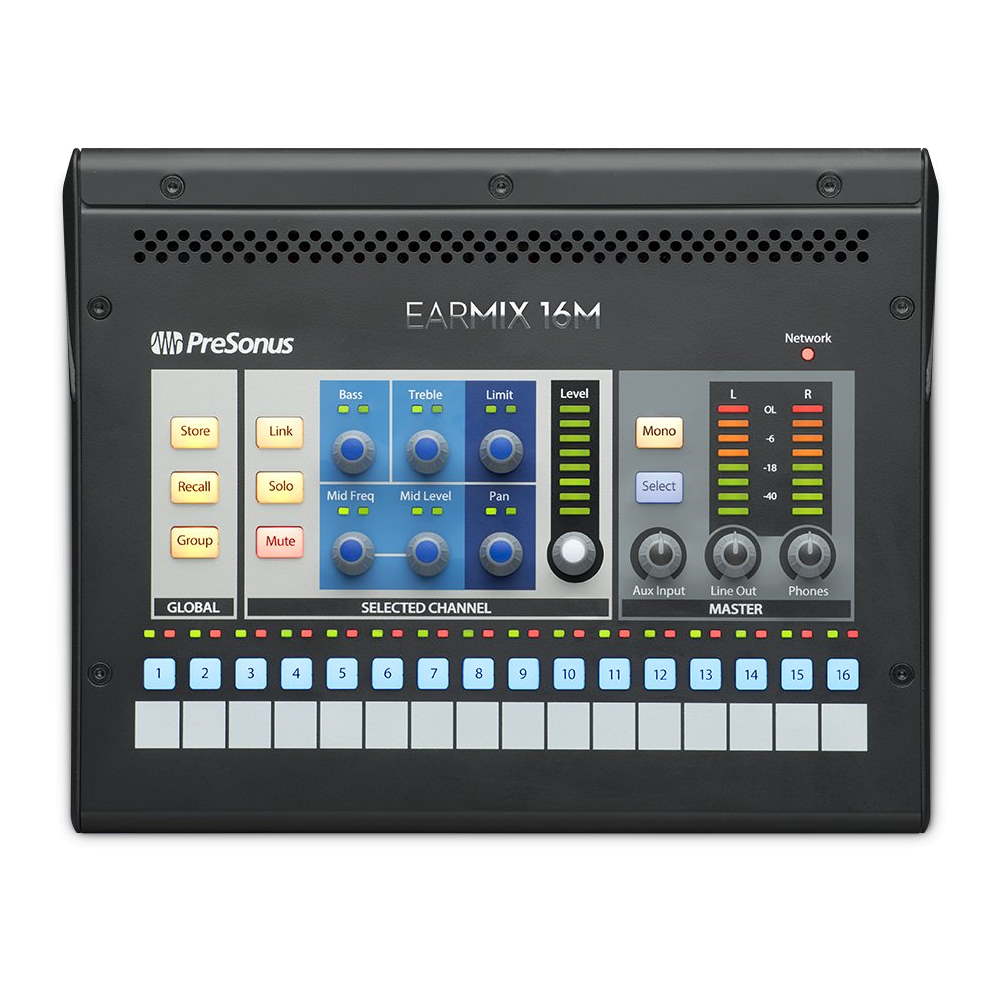

Meters, Controls, and Processing
3-band EQ with sweepable mid frequency on all channels and main mix
Limiter on all channels and main mix
Stereo channel linking
Channel grouping
Solo and Mute
Mix scene Store and Recall; store up to 16 mix scenes locally
16 Signal present and clip LEDs (one for each input)
8-segment stereo output meter
Channel Level rotary control with 8-segment level indicator
Aux Input level control
Independent Monitor (line out) and Phones level controls
Routing setup from StudioLive Series III consoles and UC Surface
Digital
16 mono channels of input via AVB networking
2 AVB Ethernet ports
24 bit, up to 48 kHz operation
Power
External 24 VDC power supply (included)
Support for PoE power
Physical
Mic stand mounting option (sold separately)
