Nexo P10 - Black Touring Version
NEXO has always been well-known for its compact and very powerful versatile point source speakers, ideal in both FOH and wedge application.
This expertise is now applied to the P10, featuring a new extremely powerful coaxial 10 speaker and lots of innovation, making it unique in its category.

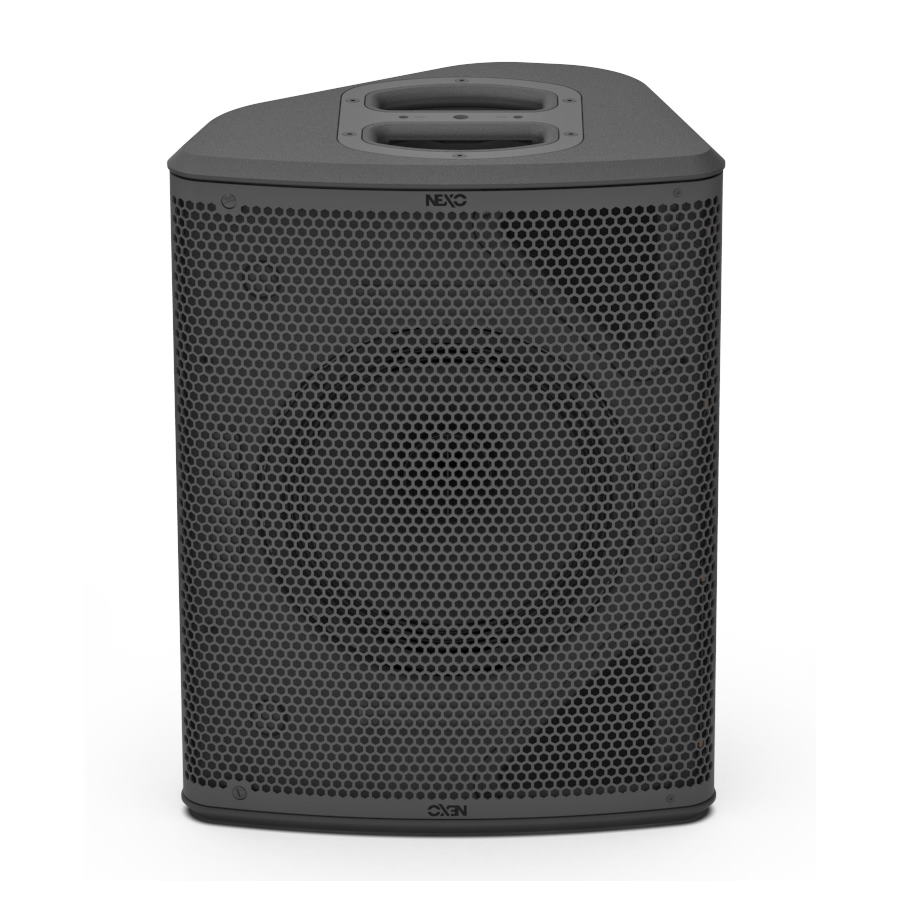

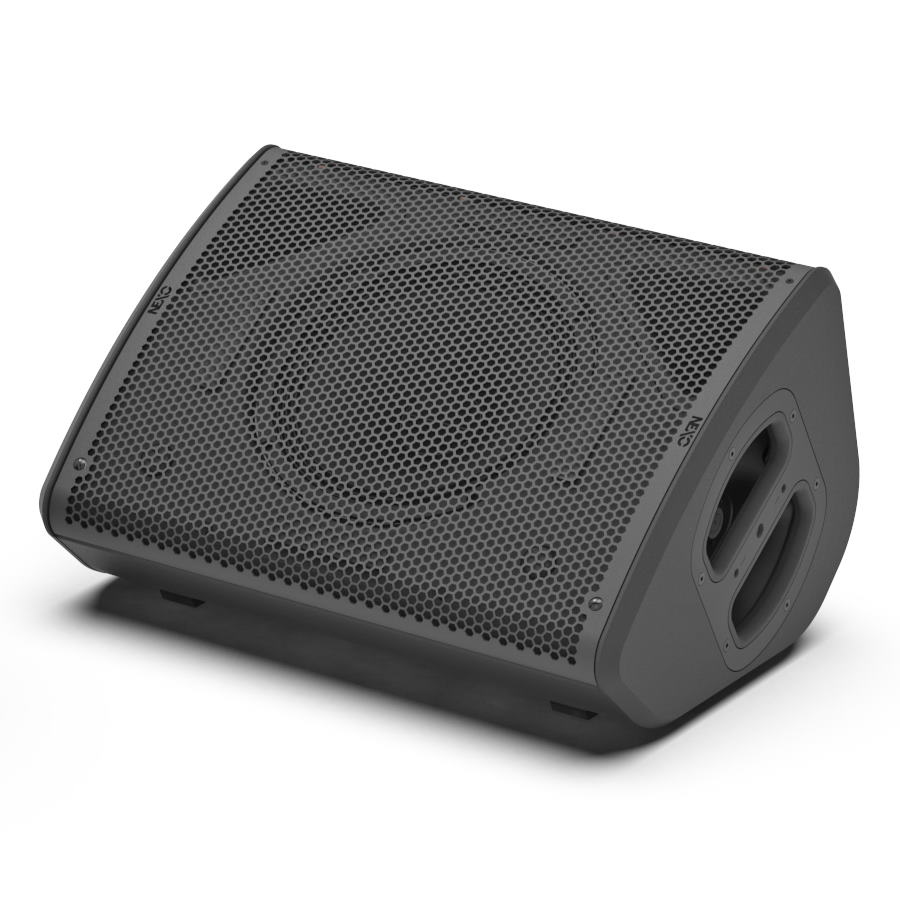

Measuring 384mm wide x 497mm high x 274mm deep and weighing 15Kg, the P10 can be deployed in vertical or horizontal (wedge monitor) configurations, with HF directivity set to match the specific application. Speakon connectors are located in the side-mounting handles and the back plate. The P10 is designed to be driven by a suitable Nexo amplifier, such as the NXAMP4x1 MKII
Compact, low-profile, curvilinear enclosure
10 LF Neodymium driver and 1.7 diaphragm HF driver in a coaxial configuration
Variable HF directivity
136dB peak SPL
Threaded inserts on the back and on both sides for connection of mounting accessories
Stand fitting on both sides
4x NL4, 4 poles connectors; 2 on the back and 1 on both sides
With NEXO Processing
Frequency Response (+6 dB) 63 Hz to 20 kHz
Peak SPL Level (1m) 136 dB Peak
Operating Voltage 50 Vrms (150 Vpeak)
HF Dispersion (according to horn) 100° x 100° (Default) - 110° x 60° (with 110° x 60° optional horn)
Crossover Frequency 63 Hz, 85 Hz
Nominal Impedance 8 Ohms
Components 1 x Coaxial Neodymium LF 10" 8 Ohms long excursion & HF 1.7" 8 Ohms
Number of ways 2 ways passive
Connectors (Touring version) 4 x NL4, 4 poles connectors (1 per handle + 2 at the back)
Connectors (Install version) 1 x Cable gland with 2 cores cable
Rigging points 1 x universal accessory fit on each side + 1 x on the bottom
Material Custom made bent plywood of baltic birch and poplar
Finish Black or White structural paint
Front Finish (Touring version) Magnelis® steel front grille + back mesh
Front Finish (Install version) UV resistant acoustic fabric fitted front grill
Height x Width x Depth 497 mm x 384 mm x 274mm (19.6" x 15.2" x 10.8")
Weight: Net 15 kg (33 lbs)
Operating temperature range 0°C - 40 °C (32° F - 104° F)
Storage temperature range -20 °C - 60 °C (-4 ° F - 140° F)
