Nexo L15 Black Touring Version

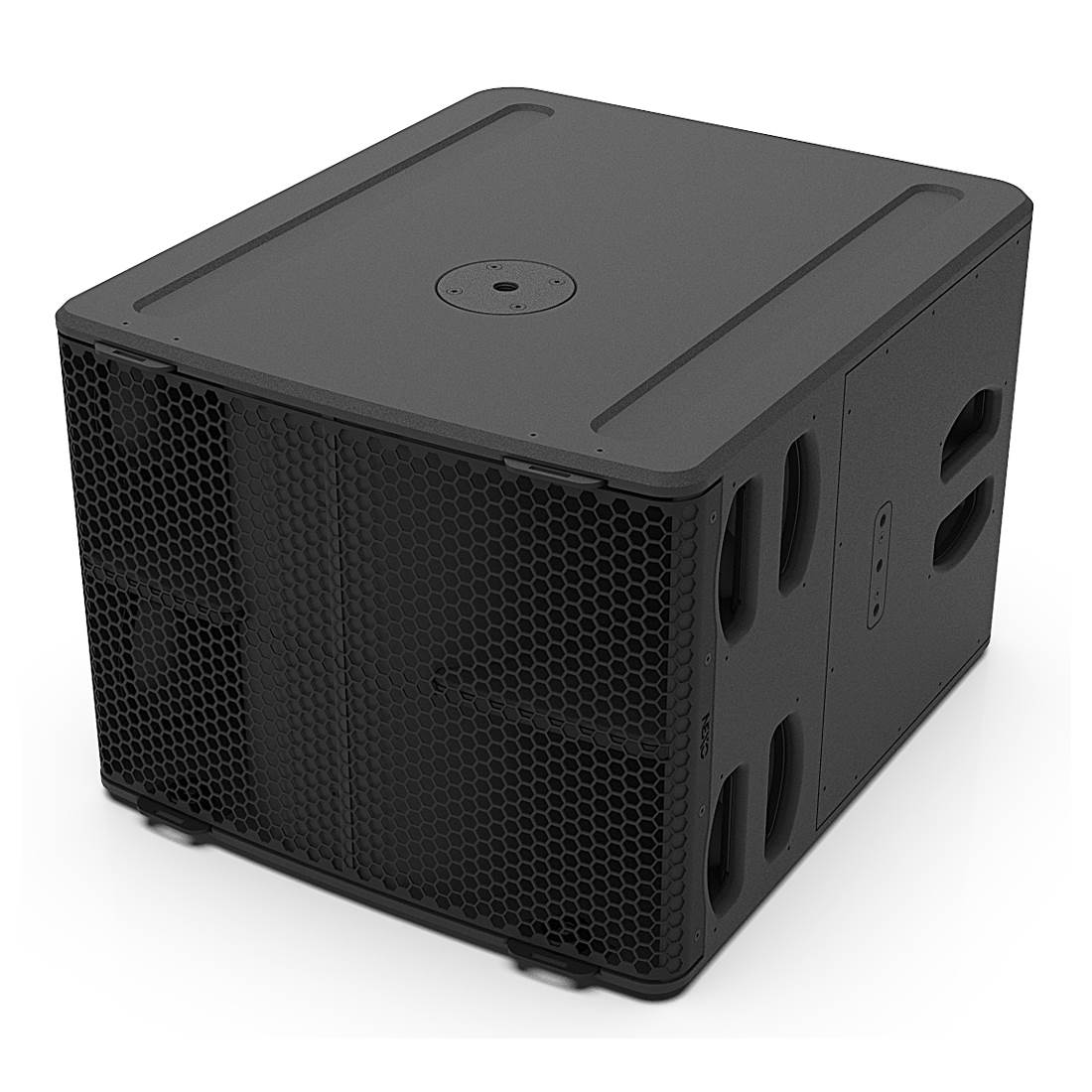

Measuring 650mm wide x 430mm high x 550mm deep and weighing 35Kg, the L15 sub employs a 15? long excursion driver in Baltic birch / poplar plywood cabinet with threaded inserts for mounting accessories and an M20 stand fitting. With a frequency range of 40Hz-120Hz, and 139dB Peak SPL, The L15 is specially designed in a footprint to match the P12, making it a perfect partner in flown applications, and for use as a drum fill.
KEY FEATURES
Dedicated partner sub for P12 with matching footprint
Extends LF performance to 40Hz
139dB peak SPL
1 x 15" long-excusion Neodymium driver
Can be deployed in standard and cardioid modes
Threaded inserts on the back and on both sides for connection of mounting accessories
Standard fitting M20
Frequency Response (+6 dB) 40 Hz - 120 Hz
Peak SPL Level (1m) 139 dB Peak
Operating Voltage 55Vrms (150Vpeak)
Crossover Frequency 85 Hz - 120 Hz
Nominal Impedance 4-Ohms
Components 1x 15" – 4 ohms – Long excursion – Neodymium driver
Material Baltic birch / Poplar plywood
Finish Black or white structural paint
Front Finish Steel front grille
Fittings Handles on both sides. Threaded inserts on both sides for connection of mounting accessories. Stand fitting M20.

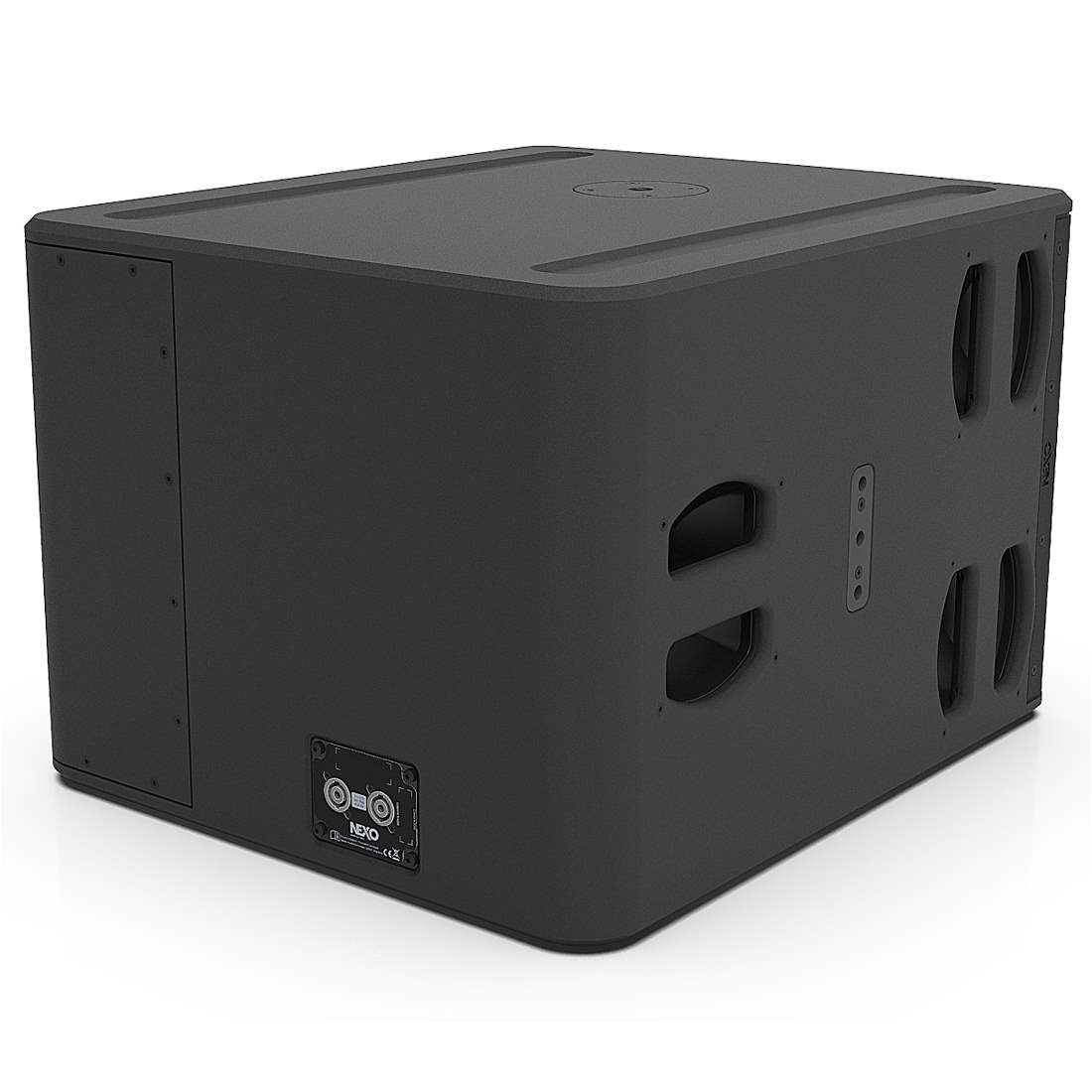

Connector 2x NL4, 4 poles connectors
Weight 35 kg
Height x Width x Depth 430mm x 650mm x 550mm
