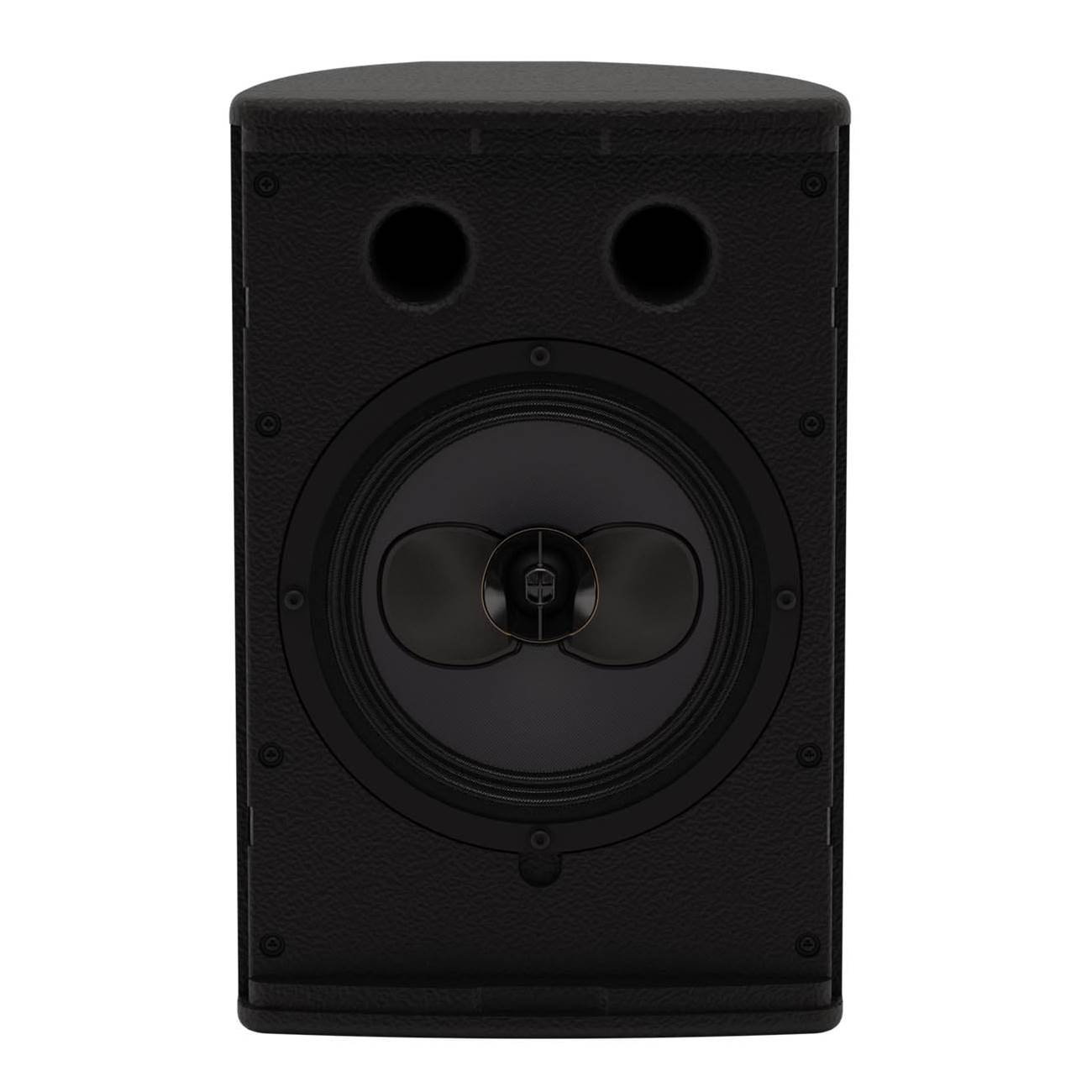

Martin CDD6 Ultra-Compact Coaxial Differential Dispersion System
Martin CDD6 Ultra-Compact Coaxial Differential Dispersion System Thumbnail
  • Overview
  • Specification

The ultra-compact CDD6 is a two-way passive loudspeaker system designed to fulfil the requirement for full-frequency dynamic performance from a very small enclosure. Featuring a 6.5inch (165mm) LF/1inch (25mm) HF Coaxial Differential Dispersion driver, its extremely small size and sleek lines make it ideal for visibly-unobtrusive applications. It can also be used as a fill system in conjunction with larger CDD Series models and, with the addition of a CSX subwoofer, can reproduce surprisingly high levels of music program.

Features
Ultra-Compact, CDD™ passive two-way system
Coaxial Differential Dispersion™ technology
Elegant UPM Formi composite enclosure
User-rotatable coaxial drive unit
Vertical and horizontal mounting options
Screw-free perforated steel grille
8 Ohms nominal impedance
Discreet mounting accessories
Black or white standard colour options


TYPE Ultra-Compact, Coaxial Differential Dispersion passive two-way system
FREQUENCY RESPONSE (5) 80Hz-20kHz ± 3dB, -10dB @ 70Hz
DRIVER LF: 6.5 inch (165mm)/1.5 inch (38mm) voice coil, long excursion, ferrite motor system
HF: 1 inch (25mm) voice coil, fabric dome with neodymium motor system
RATED POWER (2) 150W AES, 600W peak
SENSITIVITY (8) 91dB
MAXIMUM SPL (9) 113dB continuous, 119dB peak
NOMINAL IMPEDANCE 8 Ohms
DISPERSION (-6DB) 110°-80° horizontal, 80° vertical (user-rotatable)
CROSSOVER 2.5kHz passive
ENCLOSURE 9 litre, composite material
FINISH Black or white textured paint
PROTECTIVE GRILLE Black or white perforated steel with scrim cloth backing
CONNECTORS Low profile 13A push-lock
PIN CONNECTIONS Left to right: Input+, Input -, Link -, Link +
FITTINGS 4 x M6 inserts for wall/ceiling brackets
DIMENSIONS (W) 210mm x (H) 325mm x (D) 210mm
(W) 8.3ins x (H) 12.8ins x (D) 8.3ins
WEIGHT 5.5kg (12.1lbs)
