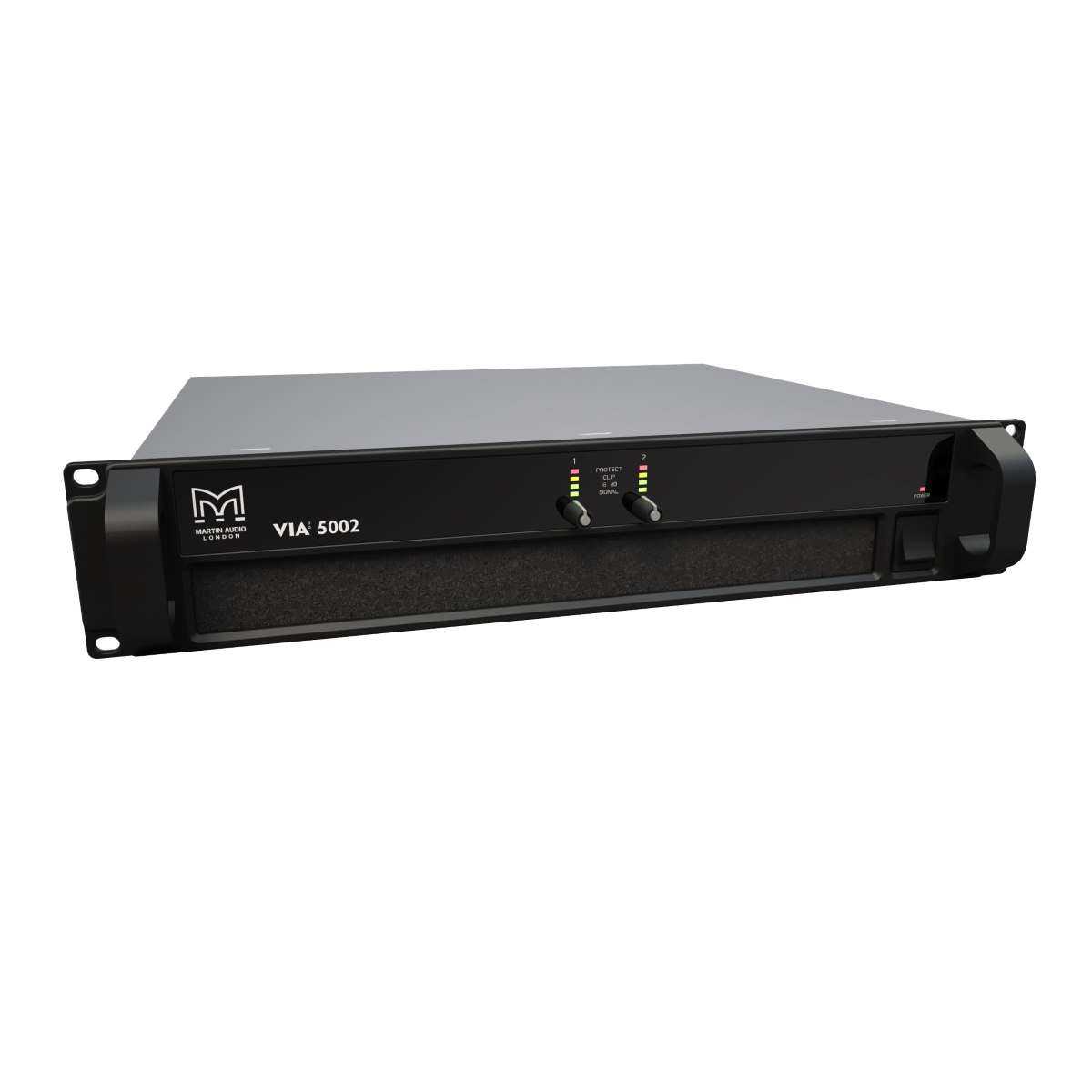

The VIA5002 is an advanced 2-channel power amplifier which combines high power density with superb audio performance in a lightweight, cost-effective package. Delivering 2 x 2500 watts into 4 ohms or 2 x 1500 watts into 8 ohms, it ideal for powering subwoofers in installations and portable sound systems.
Its high efficiency design reduces the energy drawn from the mains supply and ensures the power reserves needed to deliver superb sound in demanding environments with reliability and ease.
Comprehensive protection functions continuously monitor its performance to maintain safe operating conditions and full output capability in ambient temperatures up to 40°C.
For a wide variety of applications, the VIA5002 is ideally partnered with a Martin Audio DX0.4 or DX0.6 system processor. Larger installations will benefit from use with the DX4.0 with its onboard network capability and proprietary VU-NET software control.
General
TYPE Two-channel Class D amplifier
POWER OUTPUT* 2 x 2500W into 4 ohms
2 x 1600W into 8 ohms
COOLING Vari-speed fans, front-to-back airflow
MAXIMUM AMBIENT TEMPERATURE 40°C (105°F)
Audio Inputs/Outputs
ANALOGUE IN/LINK (4 CHANNELS) 2 x female, 2 x male Neutrik™ XLR
ANALOGUE INPUT IMPEDANCE 10KO balanced
MAXIMUM ANALOGUE INPUT LEVEL +20dBu
AMPLIFIER OUTPUTS 2 x Neutrik Speakon™ NL4
Audio Performance
OUTPUT NOISE -113dBA, referenced to max output
(22kHz bandwidth)
FREQUENCY RESPONSE <10Hz - >20kHz +/- 0.25dB
TOTAL HARMONIC DISTORTION <0.05% typical @ 1kHz, -3dB output
(22kHz bandwidth)
SLEW RATE >80V per microsecond
DAMPING FACTOR 120 ref 8 ohms
Power Supplies
TYPE 2 x high current, high frequency
switch-mode
AC INPUT OPERATING RANGE 100-240V +/-10%
45 - 65Hz
TOTAL SYSTEM EFFICIENCY >90% typical
MAINS CONNECTOR 1 x Neutrik Powercon™
Physical
DIMENSIONS (W) 482 x (H) 2U/88mm x (D) 441mm
(W) 19in x (H) 2U/3.5in x (D) 17.4in
incl handles and optional rear support
WEIGHT 10kg (22lbs)
* RMS output power per channel, all channels driven with continuous program material and a nominal ambient temperature of 40°C /105°F
