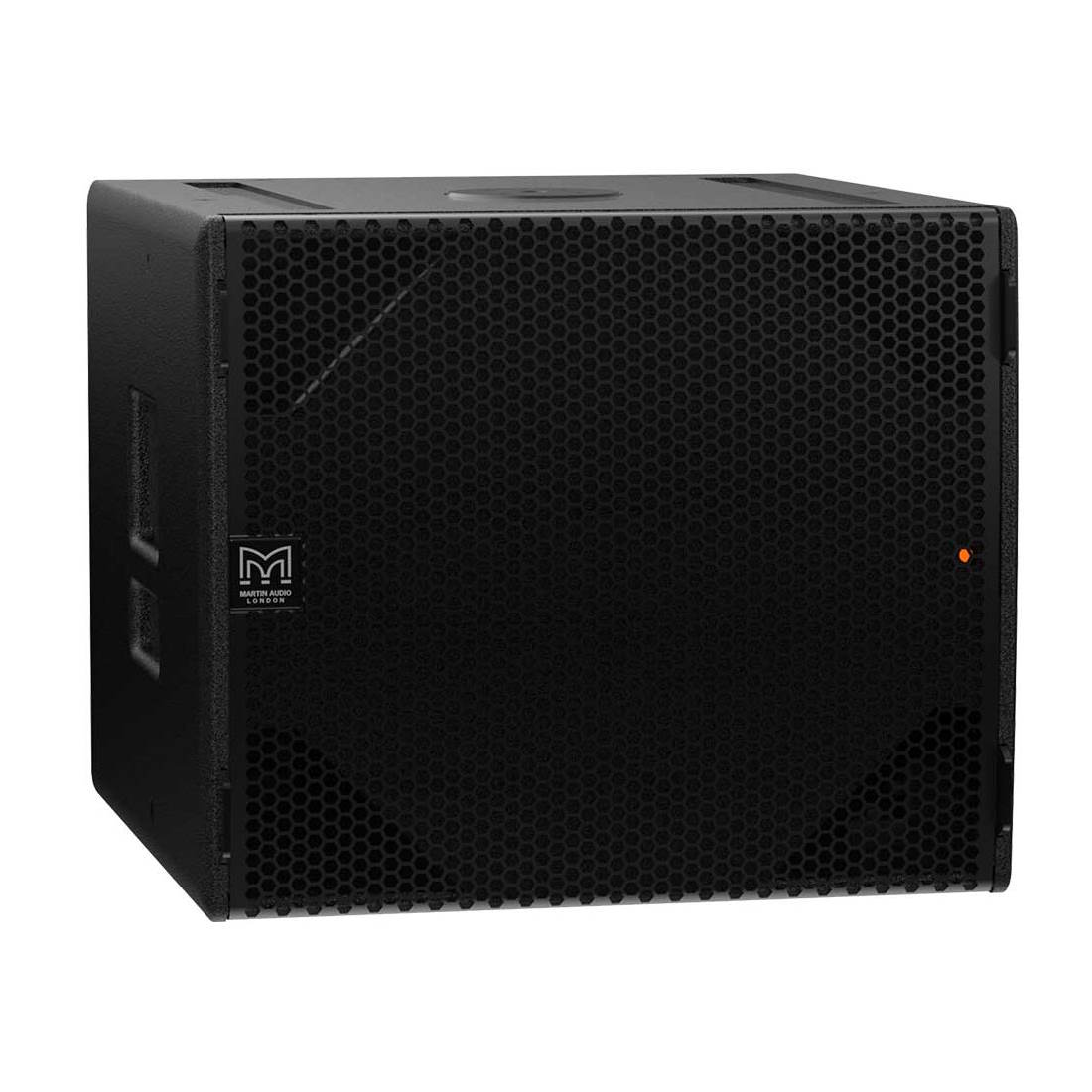

The SXP118 is a compact, high-performance subwoofer that extends the low frequency operating range of a CDD-LIVE! full-range system to 40Hz — providing exceptional low frequency impact and increasing headroom. It features a long-excursion 18” (460mm)/4” (100 mm) voice coil driver with a water-resistant cone and triple roll surround in a compact reflex enclosure. The design of the 18” driver maximises output while minimising power compression and distortion, and the four reflex ports have a large frontal area to reduce turbulent air noise at very high levels. With a maximum SPL capability of 135dB peak at 1 metre, the SXP118 is the ideal subwoofer for theatre and portable live sound applications, as well as premium installations that require the maximum output from a compact enclosure.
ACOUSTICS
TYPE Compact, direct radiating powered subwoofer
FREQUENCY
RESPONSE (3) 47Hz – 150Hz ±3dB, -10dB @ 41Hz
DRIVER 18” (460mm)/4” (100mm) voice coil, long excursion,
ferrite magnet, waterproof cone
INPUT SENSITIVITY -20dBu for 100dB SPL (CDD12/15 pre-set)
-13dBu for 100dB SPL (CDD8 pre-set)
MAXIMUM SPL (4) 132dB continuous / 135dB peak
DISPERSION Omnidirectional / or Cardioid (paired)
CROSSOVER Active Presets for CDD Live 8, 12 & 15 mono-pole or cardioid (paired)
MODULE
AUDIO INPUT
CONNECTORS Female XLR input, male XLR link output, Dante Audio Neutrik® Ethercon
ANALOGUE INPUT IMPEDANCE 20 kO balanced to ground
MAXIMUM ANALOGUE INPUT LEVEL 24.6 Vpp (+21dBu), over voltage protected
INTERNAL PROCESSING Multi-channel DSP, programmable via TCP/IP using VU-Net software
PEQ/shelving filters
Up to 48dB/Oct LPF
Up to 200ms input delay
Pre-set selection via rear panel switch
NETWORK
CONNECTORS 2 x Neutrik® Ethercon
PROTOCOL TCP/IP and UDP/IP
AMPLIFIER MODULE
TYPE 2 channel switch-mode, class D,
Bridged Tied
PEAK OUTPUT POWER 2000W total
AVERAGE EFFICIENCY 89%
COOLING External fan
MAXIMUM AMBIENT TEMPERATURE 40°C (104°F) for full output
POWER SUPPLY
TYPE Switch mode, fixed frequency with PFC
AC INPUT OPERATING RANGE 85 – 265V ~ AC, 50 - 60Hz
POWER FACTOR > 0.98
NOMINAL POWER CONSUMPTION 125W
MAINS CONNECTOR Neutrik® Powercon True1
MECHANICAL
ENCLOSURE Extensively braced multi-laminate plywood.
FINISH Durable Polyurea Coating
PROTECTIVE GRILLE Black perforated Zintec
FITTINGS Two skids on base, with mating channels on top
16 x M8 inserts for optional castors
M20 top-mounted thread plate for pole mounting
16 x M10 mounting points
2x Bar handles, 1 on each side
4x fittings for optional transit cover
IP RATING IP24 factory option available
DIMENSIONS (W) 600mm x (H) 507mm x (D) 632mm (760mm including castors)
(W) 23.62in x (H) 20in x (D) 24.86in (29.90in including castors)
WEIGHT 46.5kg (103lbs) w/o castors 50kg (110lbs) with castors
