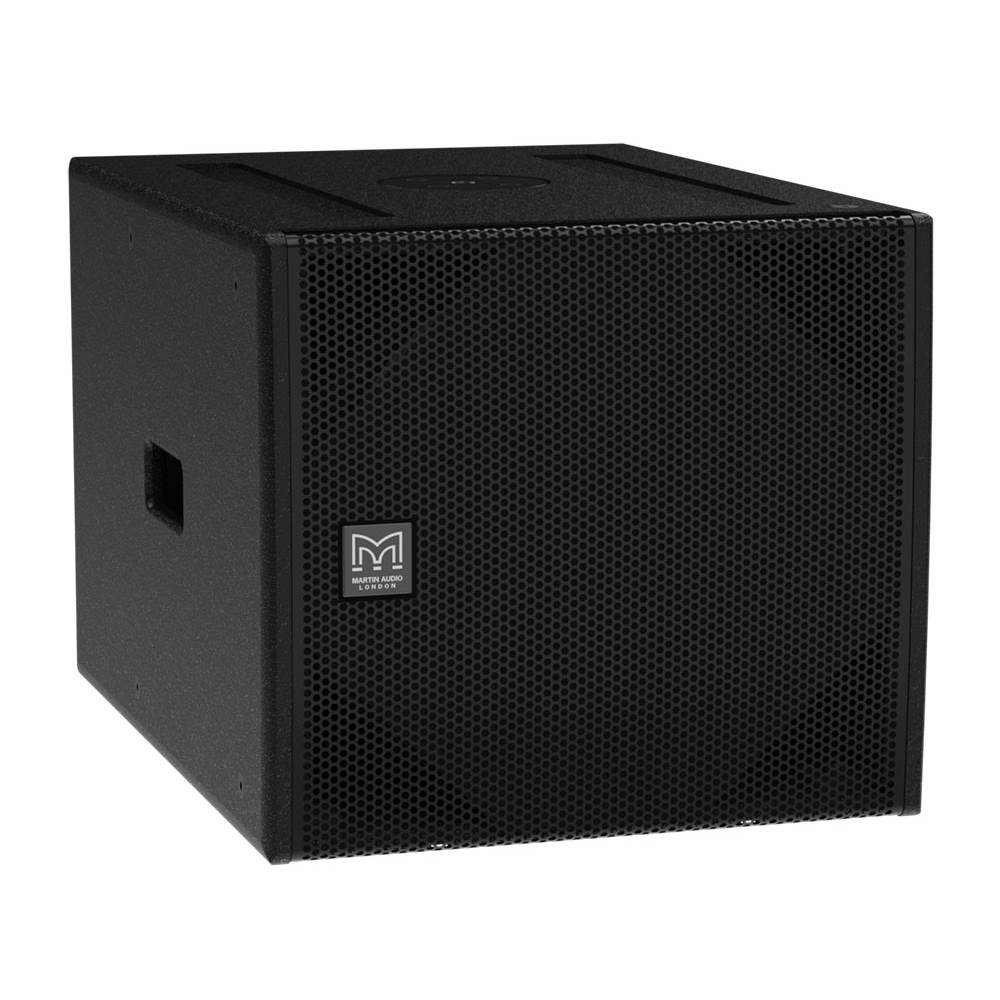

The SX115 is a versatile, passive subwoofer with an operating range of 45-100Hz + 3dB. Featuring a powerful, long excursion 15” (380mm)/4” (100mm) voice coil driver with a water-resistant cone and triple roll surround, it delivers dynamic low frequency performance from a very compact enclosure. Four reflex ports increase LF output efficiency and have a large frontal area to reduce turbulent air noise at high levels.
The durable plywood enclosure is finished in hardwearing textured paint and incorporates threaded inserts for eyebolt suspension of a single enclosure, as well as safety points. Inserts are also provided for the attachment of side rigging strips to assemble a flown installed array of up to four enclosures.
Ergonomic pocket handles assist handling and installation, and the driver is protected by a coated steel grille with an acoustically transparent fabric backing. An M20 threaded plate on the top surface facilitates pole-mounting of Martin Audio full-range enclosures.
The SX115 can be used as a stand-alone subwoofer or stacked using locating skids and mating channels at the base and top of each enclosure. Cardioid operation can be achieved by arranging the SX115 in forward and rear-facing pairs, with each enclosure powered individually in conjunction with dedicated DSP presets.
The SX115 is suppled without castors, which are available as an accessory pack.
TYPE Direct radiating subwoofer
CROSSOVER FREQUENCY 100Hz
FREQUENCY RESPONSE 4? (5) 45Hz - 100Hz ± 3dB, -10dB @ 36Hz
DRIVERS LF: 15” with 4” Voice coil, Ferrite Motor
SENSITIVITY (2.83V 1m half space) 100dB
NOMINAL IMPEDANCE 8 Ohms
RATED POWER AES 800W, PEAK 3200W
MAXIMUM SPL (SYSTEM) 130dB continuous, 136dB peak, 142dB peak (12dB)
DISPERSION Omni-Directional/ or Cardioid (paired)
CONNECTORS 2 x NL4
PIN CONNECTIONS (INPUT) 1+/- or 2+/-
PIN CONNECTIONS (LINK) 1+/- and 2+/-
DIMENSIONS (W) 500mm, (H) 451mm, (D) 678mm (806mm with Casters)
(W) 19.69ins, (H) 17.76ins, (D) 26.69ins (31.73ins with Casters)
WEIGHT 36.5kg (80.5lbs)
Business buyers are welcome to contact our Sales Team for discounted trade prices. Please send an email to sales@mercury-av.com letting us know which products you are interested in and the name & address of the business.
