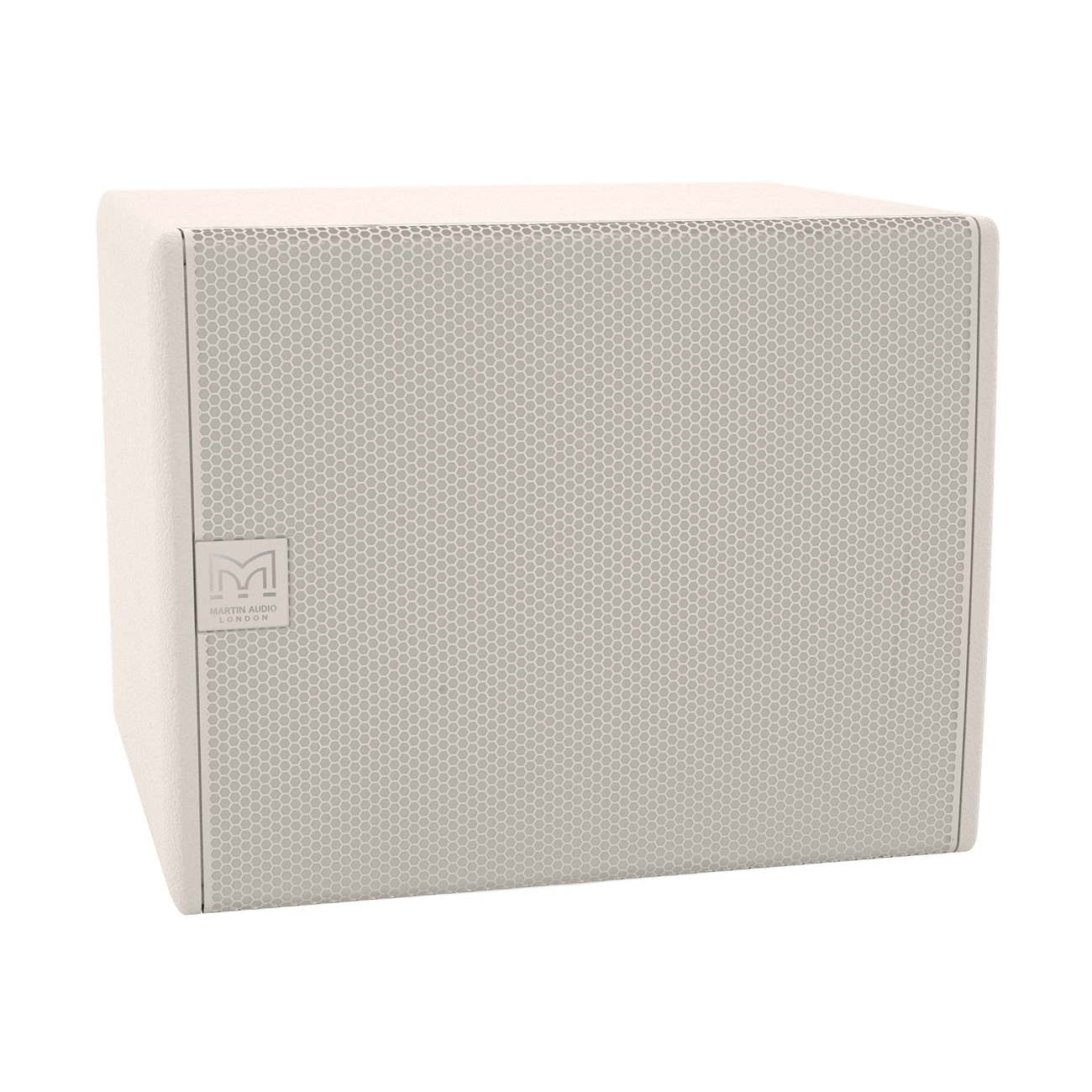

A direct radiating sub-bass system. With an efficient 12" (300mm) long-throw bass driver. 48Hz-150Hz ± 3dB -10dB @ 35Hz. 126dB continuous, 132dB peak (half space). The enclosure is constructed from plywood and has an impact-resistant finish, while the driver is protected by a rigid perforated steel grille, which is pre-curved to withstand physical damage.
Features
Ultra-Compact, single driver, direct radiating subwoofer
12 inch (300mm) driver with 3 inch (75mm) voice coil
Water resistant cone
Large ports for reduced air noise
Perforated steel grille
Black or white standard colour options
Integrated flying points
TYPE Compact, single driver, direct radiating subwoofer
FREQUENCY RESPONSE (1) 48Hz-150Hz ± 3dB -10dB @ 35Hz
DRIVER 12 inch (300mm)/3 inch (75mm) voice coil, long excursion, ferrite magnet, waterproof cone
RATED POWER (2) 400W AES, 1600W peak
SENSITIVITY (10) 100dB
MAXIMUM SPL (9) 126dB continuous, 132dB peak (half space)
NOMINAL IMPEDANCE 8 Ohms
DISPERSION (-6DB) Omnidirectional
CROSSOVER 80-120Hz active
ENCLOSURE 52 litre, Plywood
FINISH Black or white textured paint
PROTECTIVE GRILLE Black or white perforated steel
CONNECTORS 2 x NL4
PIN CONNECTIONS Left to right: Input+, Input -, Link -, Link+
FITTINGS 12 x M10 inserts
DIMENSIONS (W) 487mm x (H) 390mm x (D) 410mm
(W) 19.2ins x (H) 15.4ins x (D) 16.1ins
WEIGHT 21.5kg (47.3lbs)
