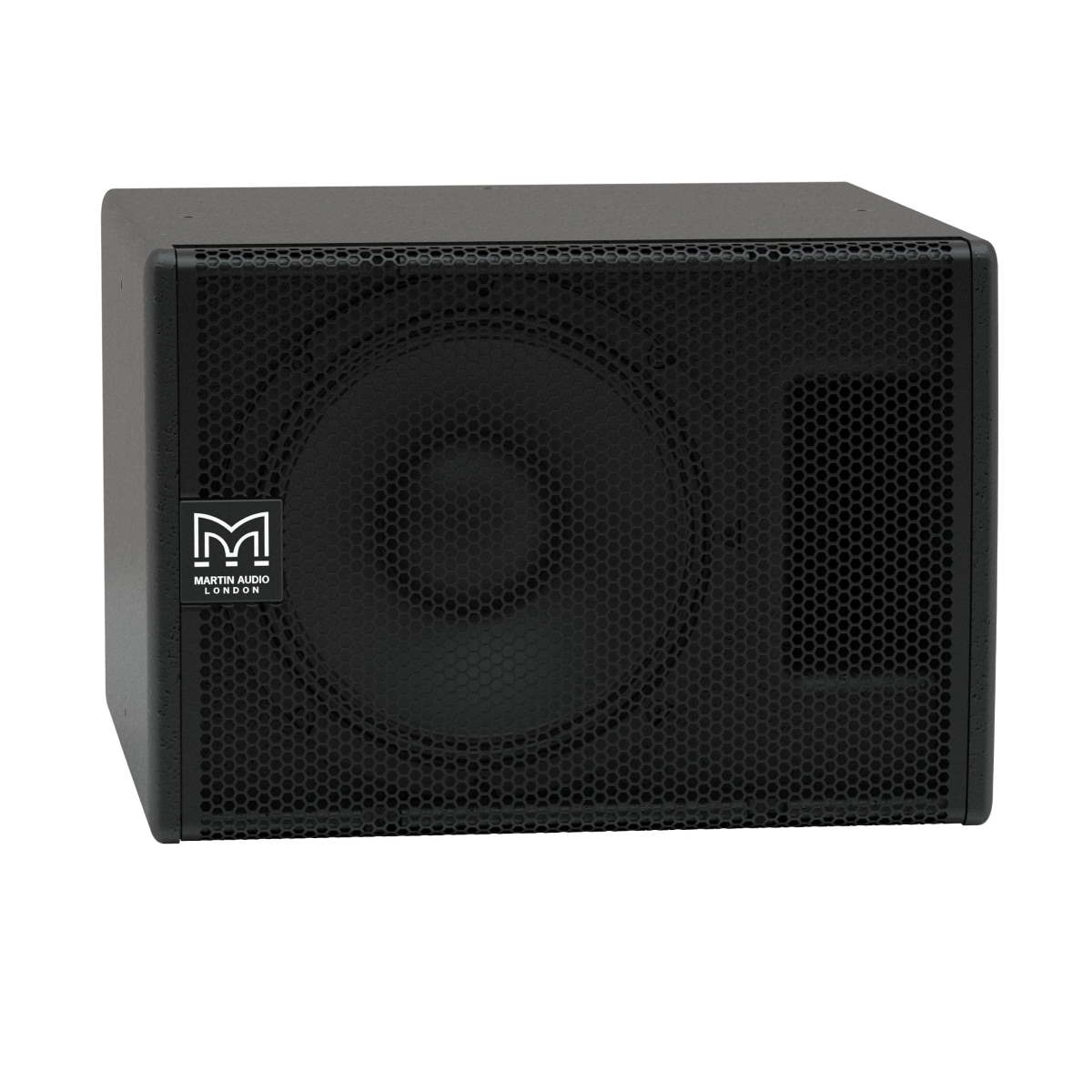

The SX110 features a 10 inch (250mm)/2 inch (50mm) voice coil driver and generously sized low frequency port for reduced air noise. An ideal subwoofer to augment the bass output of ADORN Series or small CDD loudspeakers, it can be used on the ground or flown using integral M8 inserts. The SX110 enclosure is constructed from plywood and finished in black or white textured paint as standard. An impact-resistant perforated steel grille protects the drivers, and rubber feet on the base resist movement. 50Hz-150Hz ± 3dB. 121dB continuous, 127dB peak (half space) -10dB @ 42Hz
Features
Slimline direct-radiator subwoofer
1 x 10 inch (250mm) driver with 2 inch (50mm) voice coil
Large port for reduced air noise
Perforated steel grille
8 Ohm nominal impedance
M8 flying inserts
TYPE Slimline, direct radiating subwoofer
FREQUENCY RESPONSE (1) 50Hz-150Hz ± 3dB, -10dB @ 42Hz
DRIVER 1 x 10 inch (250mm)/2 inch (50mm) voice coil, long excursion, ferrite magnet
RATED POWER (2) 250W AES, 1000W peak
RECOMMENDED AMPLIFIER VIA 2502
SENSITIVITY (10) 97dB
MAXIMUM SPL (9) 121dB continuous, 127dB peak (half space)
NOMINAL IMPEDANCE 8 Ohms
DISPERSION (-6DB) Omnidirectional
CROSSOVER 80-120Hz active
ENCLOSURE Plywood
FINISH Black or white
PROTECTIVE GRILLE Perforated steel
CONNECTORS 2 x NL4 type
PIN CONNECTIONS (INPUT) +1, -1 Link through: +2, -2
PINS CONNECTIONS (LINK) +1, -1 Link through: +2, -2
FITTINGS 12 x M8 inserts
DIMENSIONS (INCL FEET)
(W) 417mm x (H) 297mm x (D) 415mm
(W) 16.4ins x (H) 11.7ins x (D) 16.3ins
WEIGHT 12kg (26.5lbs)
