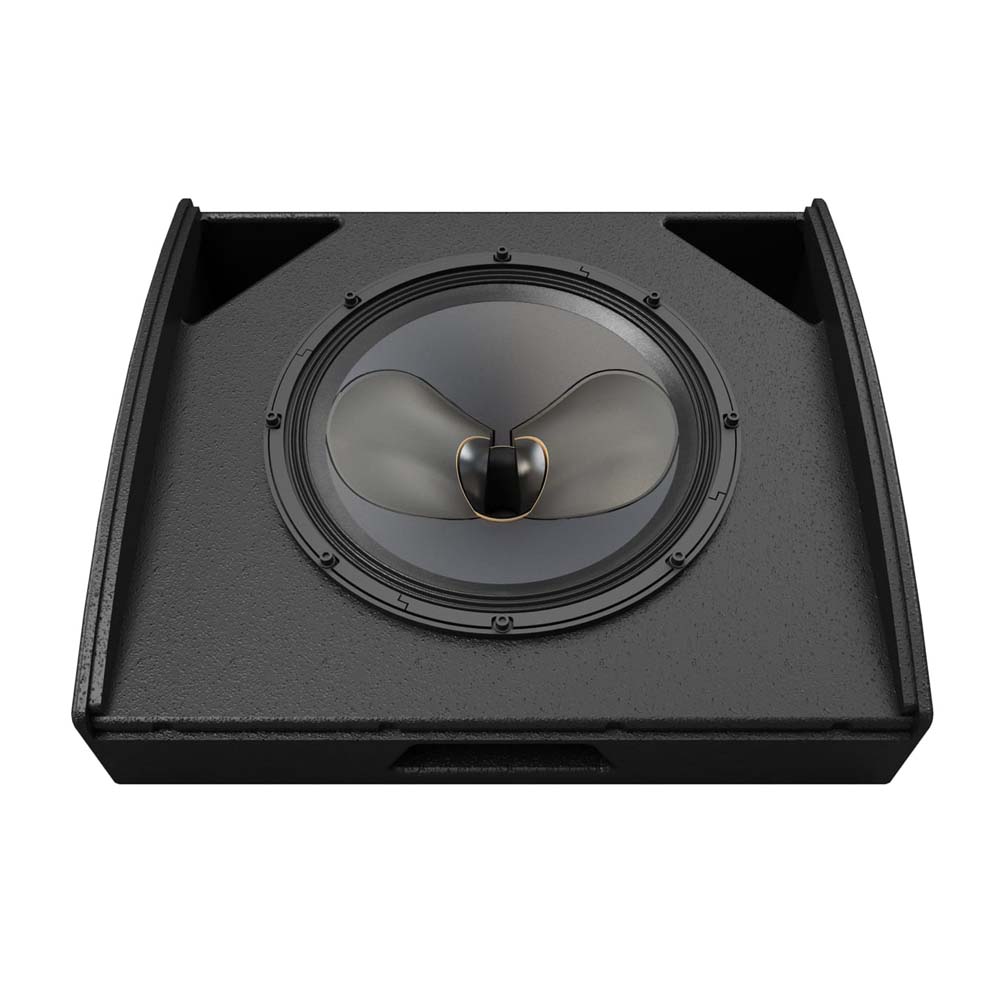

Combining very high output capability with Martin Audio’s signature sonic performance and consistent coverage, the LE200 is the ultimate, everyday professional monitor. Its Coaxial Differential Dispersion drive unit comprises a powerful 15 inch (380mm)/3 inch (75mm) voice coil LF driver and a 1.4 inch (35mm) exit HF compression driver with a 3 inch (75mm) pure titanium diaphragm.
Features
Compact, two-way stage monitor
Coaxial ‘point-source’ performance
Differential Dispersion™ technology for consistent coverage
Defined, near-rectangular coverage plane at head-height
Switchable active/passive operation

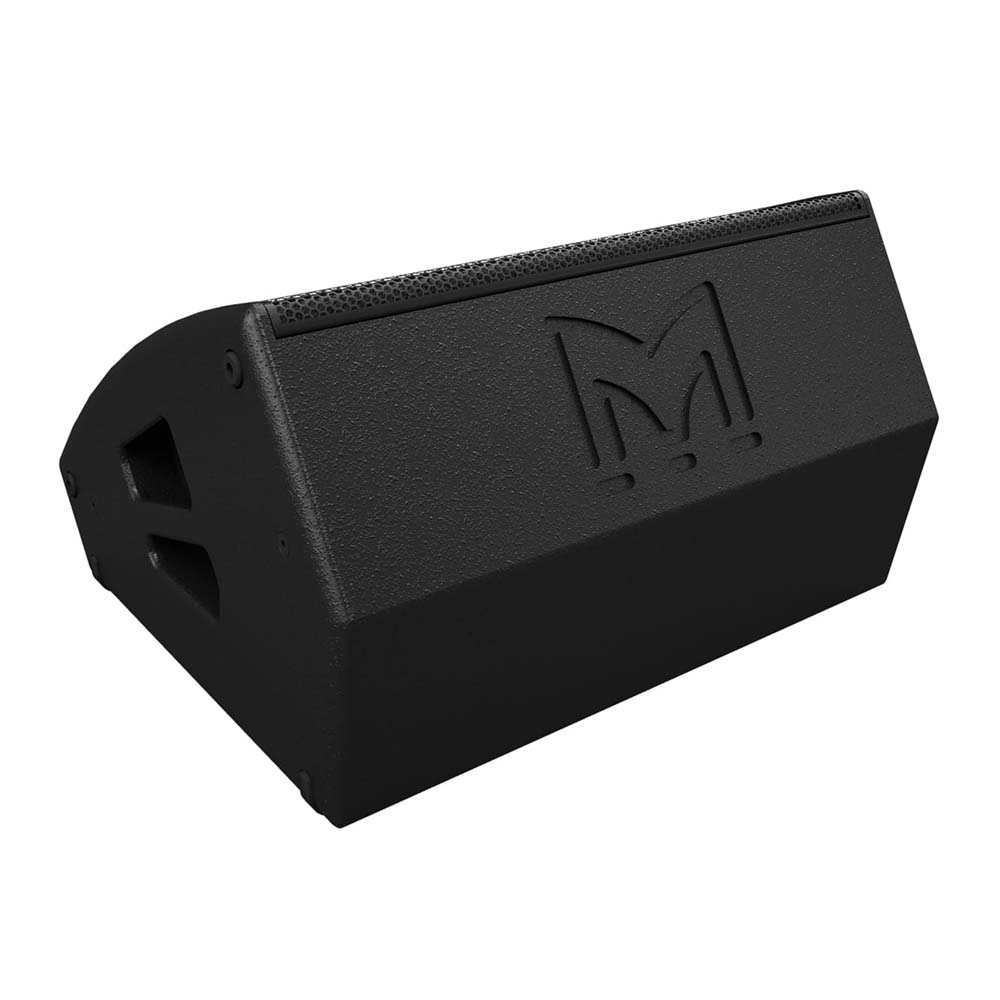

Low-profile plywood enclosure
M8 rigging inserts
Multiple connectors for flexible deployment
TYPE Two-way, bi-amp/passive Coaxial Differential Dispersion
FREQUENCY RESPONSE (5) 68Hz-18kHz ± 3dB,
-10dB @ 50Hz
DRIVERS
LF: 15 inch (380mm)/3 inch (75mm) voice coil, long excursion, shared ferrite motor system with HF
HF: 1.4 inch (32mm) exit/3 inch (75mm) voice coil, titanium dome compression driver
RATED POWER (2) 400W AES, 1600W peak
SENSITIVITY (8)
LF: 100dB, HF: 103dB
Passive: 100dB
MAXIMUM SPL (9) 133dB peak
NOMINAL IMPEDANCE
LF/FR: 8O
HF: 8O
DISPERSION (-6dB) 100°-60° horizontal, 60° vertical
CROSSOVER 1.2kHz active/passive (switchable)
ENCLOSURE Birch/poplar ply
FINISH Black textured paint
PROTECTIVE GRILLE Black perforated steel with scrim cloth backing
BAFFLE ANGLE 30°
CONNECTORS 4 x NL4 type
PIN CONNECTIONS
LF/FR: 1+/-
HF: 2+/-
FITTINGS
2 x pocket handles
Protective rubber feet on base and sides
4 x M8 inserts
DIMENSIONS (W) 610mm x (H) 364mm x (D) 562mm
(W) 24.0ins x (H) 14.3ins x (D) 22.1ins
DIMENSIONS INCL FEET (W) 616mm x (H) 367mm x (D) 562mm
(W) 24.2ins x (H) 14.4ins x (D) 22.1ins
WEIGHT 26kg (57.3lbs)
